APPENDIx
A. LIST OF SPARE PARTS
The parts authorized by this list of spare parts are required for operator maintenance. The list includes
parts that must be removed before replacing authorized parts.
The PART NO. column indicates the primary number used by the manufacturer, which controls the de-
sign and characteristics of the item in terms of its engineering drawings, specifications, standards, and
inspection requirement, to identify an item.

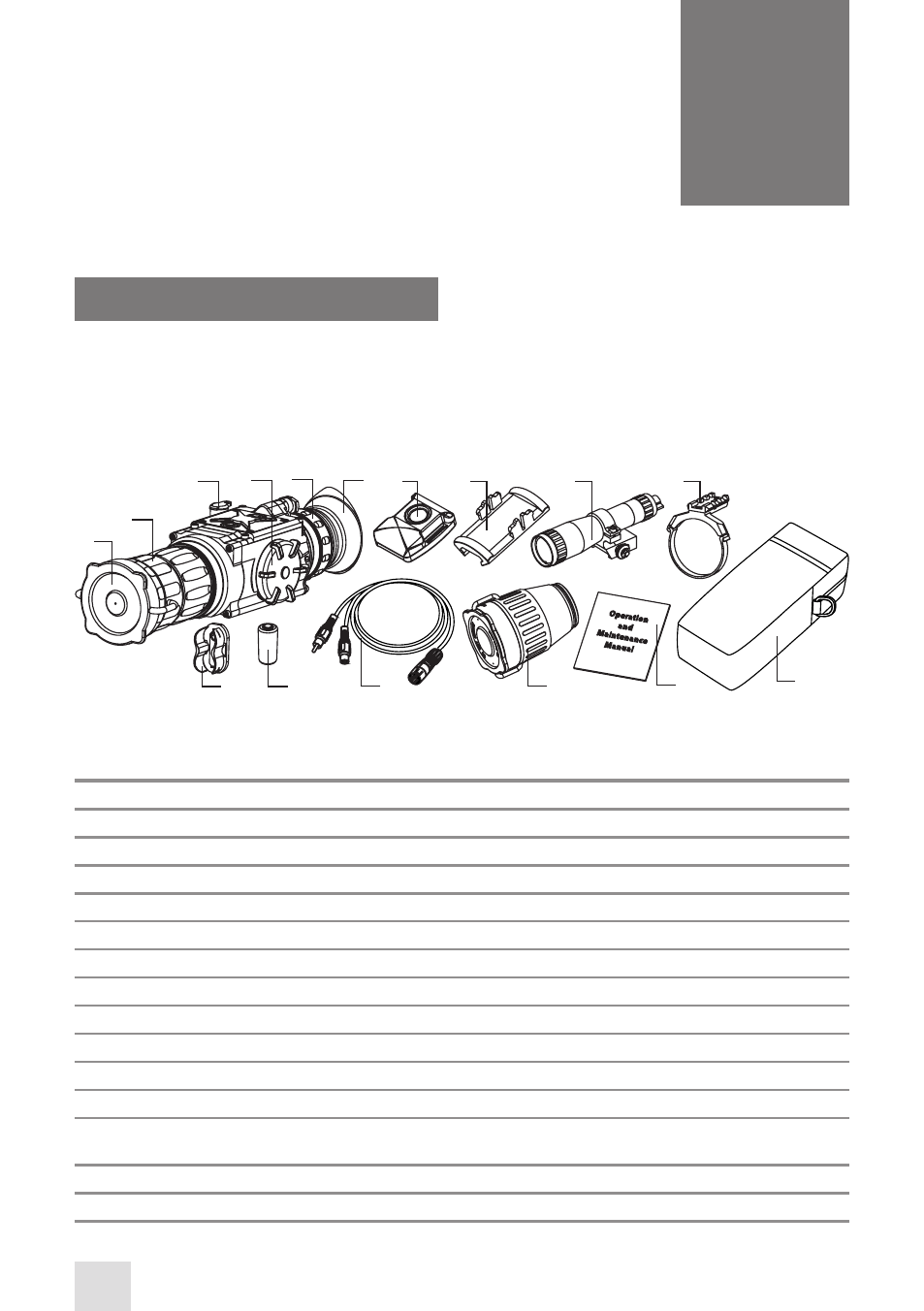

FIGURE 2-3. BIT STANDARD COMPONENT
1
2
5
9 8
10 11 12 13
14 15 16
17
3 6 4
TABLE A-1. BIT SPARE PARTS LIST
ITEM NO. DESCRIPTION PART NO.
1 Objective Lens Cap ABPSOLC
2 Objective Lens Assembly ABPSOLA
3 Connector Cap ABCCP
4 Battery Cap ABPSBC
5 Eyepiece Assembly ABPSEPA
6 Eyecup ABPSEC
7 Side Picatinny/Weaver Rail (not shown) ABPSPRL
8 Battery Cassette ABBTCS
9 CR 123A Lithium Battery ALT
10 Advanced Wireless Remote Control ANVR000001
11 Picatinny Adapter for Advanced Wireless Remote Control ANRA000002
12 IR850W Detachable Wide Angle Adjustable X-Long-Range
Infrared Illuminator
IAIR850IR000002
13 Platform Ring ATAM000003
14 Video Cable ATCA000004
