25
NOTE:
The total diopter adjustment range is covered with 2 turns of the eyepiece focus ring.
The total focus range is covered with 3/4 turn of the objective focus ring.
6. Using the buttons on the control panel, adjust the brightness of the display for your comfort. Mo-
mentarily push the brightness adjustment buttons to increase/decrease the display brightness by
one level at a time until you reach your desired brightness level.
7. To operate the Bit with remote control, turn the switch to the STB position (standby mode). To acti-
vate the Bit, press the remote control button once. Press the remote control button again to deac-
tivate the Bit.
CAUTION:
DO NOT leave the equipment activated when it is not in use.
3.3.2 OPERATING AN IR ILLUMINATOR
Use an IR illuminator when there is little to no ambient light.
CAUTION:
IR illuminator infrared light will be invisible to the naked eye. However, the light can be de-
tected by other night vision devices.
CAUTION:
DO NOT leave the IR illuminator activated if it is not being used.
Operate the IR illuminator as follows:
1. Turn on the IR illuminator by rotating the power switch (A) from OFF position.
2. To change the radiated power level, turn the power switch to one of the spots between the two OFF
positions.
3. To adjust IR beam divergence, turn the lens (B).
4. To adjust the IR spot position in the field of view, loosen the clamp screw (C) and tilt the IR illuminator
as required in the spherical clamp hinge. Tighten the screw using a 2.5 mm hex key.
B C
A

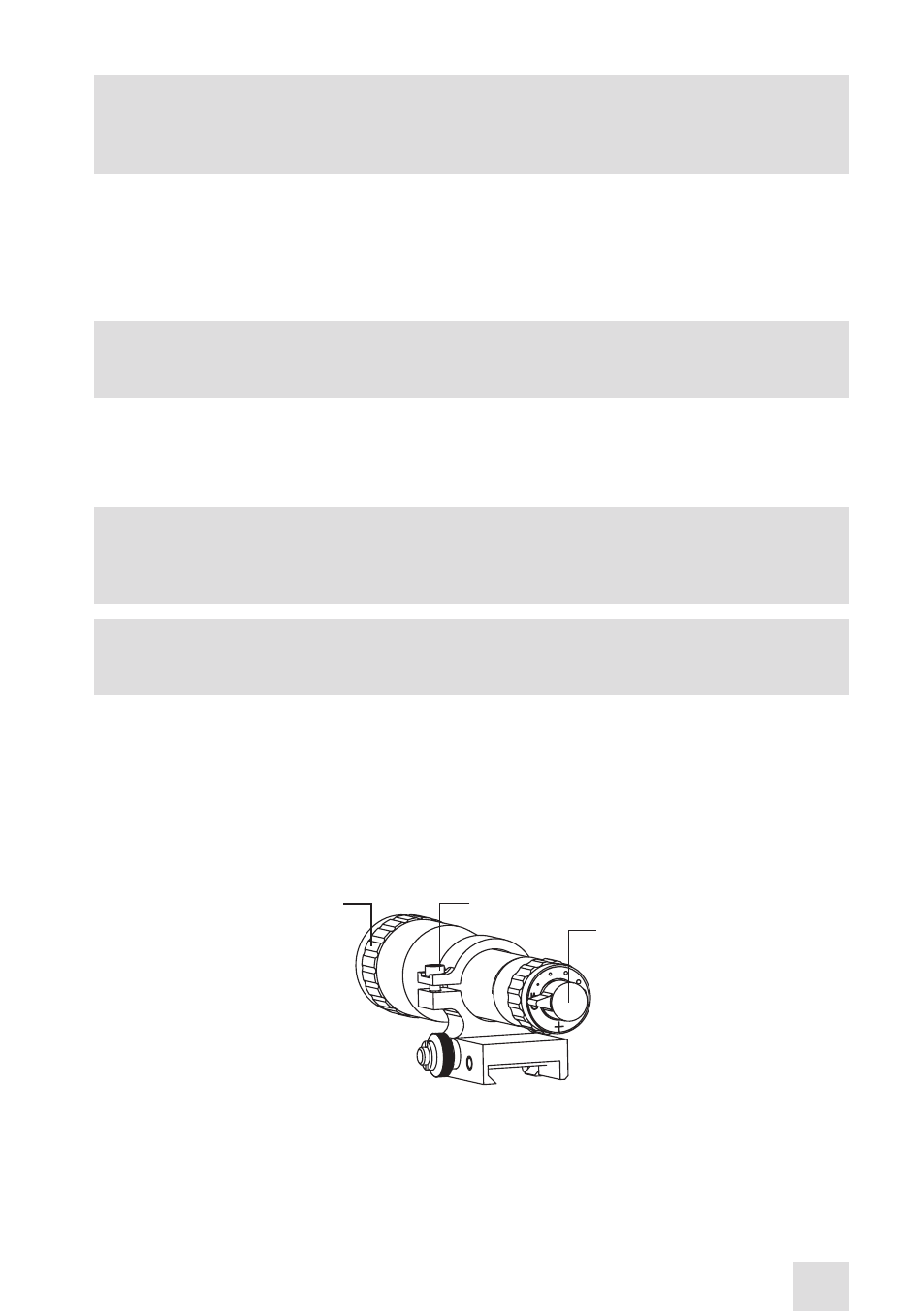

FIGURE 3-12. IR ILLUMINATOR ADjUSTMENT
