OPERATING INSTRUCTIONS
3.1 INSTALLATION AND MOUNTING
3.1.1 BATTERY INSTALLATION
CAUTION:
Before installing a battery, verify that the equipment is off.
Install two CR123A batteries as follows (refer to Figure 3-1):
1. Unscrew the battery cap (A).
2. Remove the battery cassette (B).
3. Insert the batteries (C) into cassette. Align the polarity symbols on the batteries with the polarity
symbols on the cassette.
4. Insert the cassette with installed batteries to place.
5. Replace the battery cap.
A
B
C

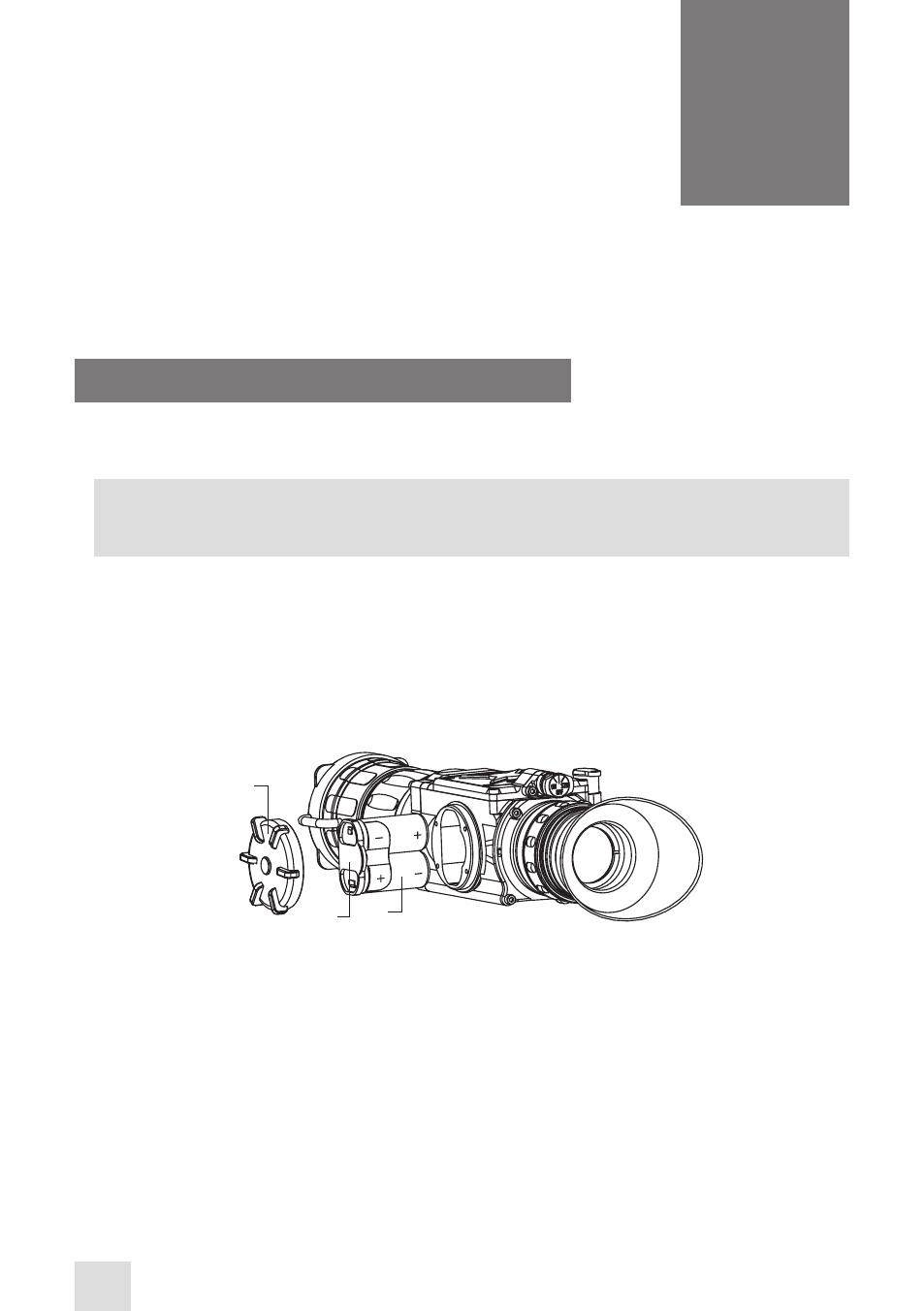

FIGURE 3-1. BATTERY INSTALLATION
3.1.2 MOUNTING A PLATFORM RING TO THE BIT
Figure 3-2 shows the Bit with the Platform Ring adapter (A) installed.
To mount the Platform Ring on the Bit, do the following (refer to Figure 3-3):
1. Using a 1.5 hex key, unscrew the both clamp screws (C).
2. Place the clamps (B, D) onto the mounting tube (as in Figure 3-2). Screw the clamps together without
tightening the screws (C).
3. Adjust position of the Platform Ring until its rail (A) is level. Apply a small amount of thread lock to
the threads and tighten the screws (C).
