11

2

DESCRIPTION AND DATA

2.1 SYSTEM DESCRIPTION

The Bit consists of next primary parts: a body, a lens assembly and a eyepiece assembly. The equipment

comes as shown in Figure 2-1. The figure represents the both 5x and 5x-10x versions of the Bit.
The Bit is a highly light-sensitive device. The Bit sensor (CCD array) reacts to near-infrared and visible

light and converts the received light into electric charges. The controlling circuit converts the entire

contents of the two-dimensional array to a sequence of voltages that are processed into a continuous

analog signal. The Bit displays, as a result, a real-time images corresponding to the scene projected

onto the focal plane of the sensor.

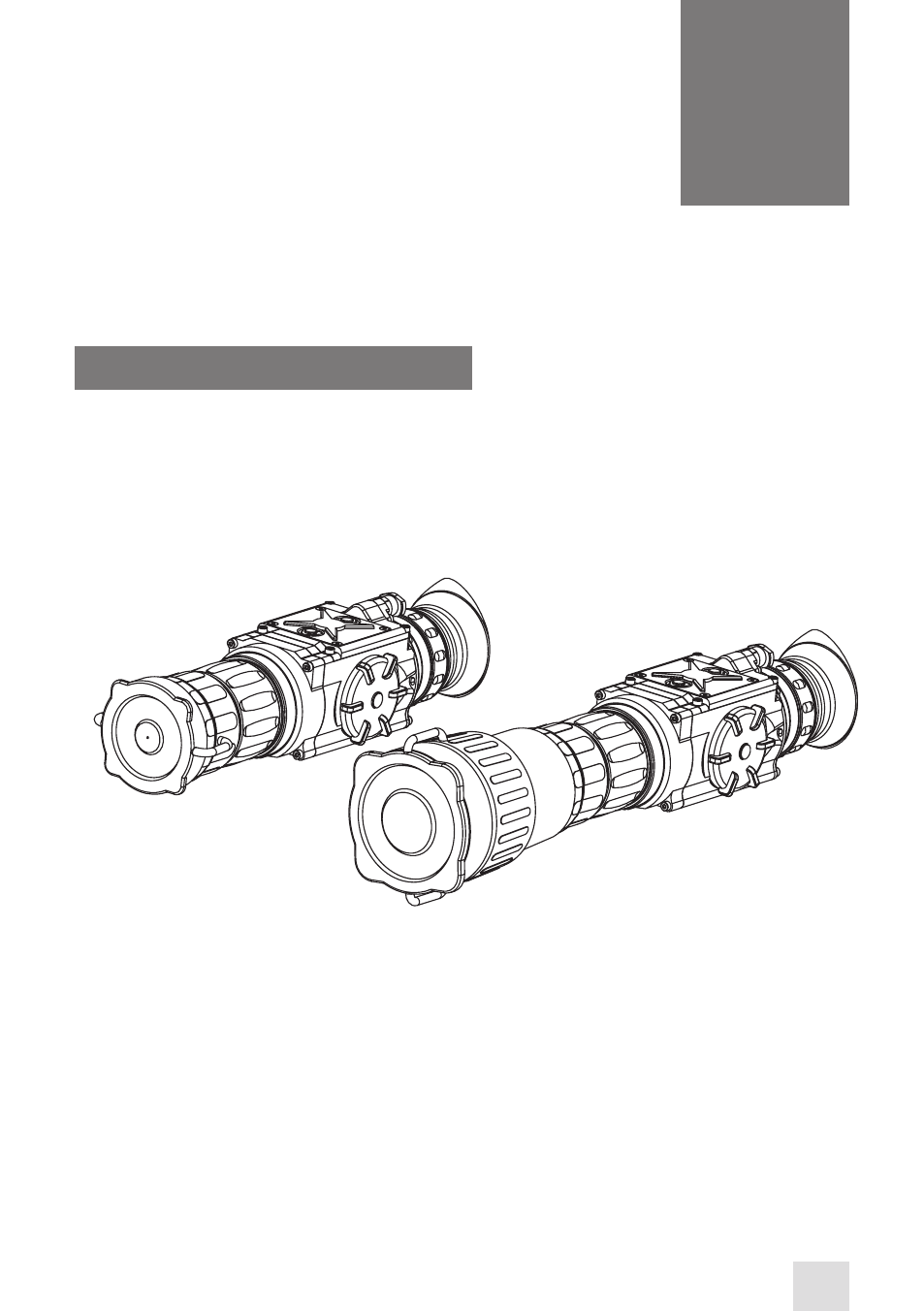

FIGURE 2-1. BIT DIGITAL NIGHT VISION MONOCULARS APPEARANCE

Bit 5x

Bit 5x-10x

The main optical-electronic components of the Bit include: an objective lens, an eyepiece, a CCD cam-

era, a display, a control card, and a button control panel.
The Bit is equipped with a manually adjustable eyepiece, focusable objective lens, and a digitally con-

trolled display brightness.
Information on the battery status is continuously displayed.
Manufactured for exceptional durability, the Bit has a lightweight and robust aluminum body.
A side Picatinny/Weaver rail allows for the installation of an optional Armasight DT Digital Video Re-

corder, extended battery supply, or other equipment.
A detachable Platform Ring makes it possible to mount an IR illuminator or other additional equipment

to the top of the device.
A detachable, long-range IR illuminator provides additional lighting and enables the use of the Bit in ex-

tremely low light conditions or total darkness.
