Air Suspension C-2145 REV 4 User Manual
Page 7
7
REV
4
06/24/2014
C-2145
C-2145
ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER

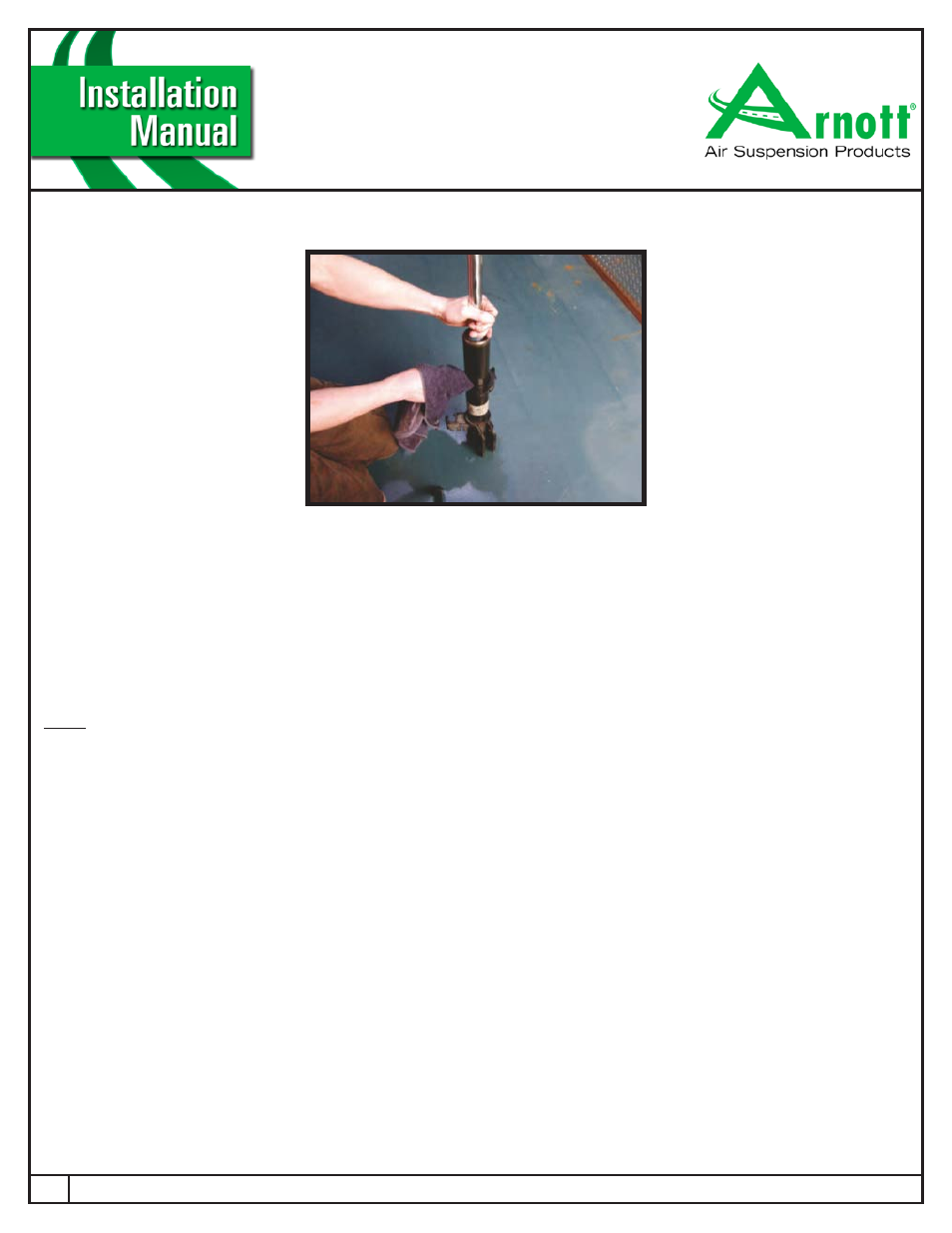

FIGURE 20-6
6.
CLEAN THE SHOCK OF ANY DEBRIS BEFORE BEGINNING INSTALLATION OF THE COIL SPRINGS.
(FIGURE 20-6)
FIGURE 20-6
FRONT COIL STRUT ASSEMBLY
NOTE: Refer to pg.8 for assembly diagram.
1.
PLACE THE LOWER SEAT ONTO THE SHOCK AND FASTEN WITH THE 5/16-18 X 3/4” BOLT THROUGH
THE
ALIGNMENT HOLE IN THE SHOCK.
2.
INSTALL THE SPRING, PIGTAIL FIRST, ONTO THE STRUT AND LOCATE IN THE LOWER SEAT.
3.
SLIDE THE DUST BOOT AND BUMP STOP OVER THE SHAFT OF THE SHOCK.
4.
PLACE ONE OF THE TWO SPACER WASHERS ONTO THE STRUT FOLLOWED BY THE APPROPRIATE SIDE
UPPER MOUNT.
5.
USING A SAFE AND APPROPRIATE SPRING COMPRESSING METHOD, COMPRESS THE SPRING UNTIL
THE THREADED SHAFT IS PROTRUDING THROUGH THE UPPER MOUNT.
6.
INSTALL THE REMAINING SPACER WASHER ON TOP OF THE MOUNT AND SECURE WITH THE SHOCK
NUT.
