ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
5.

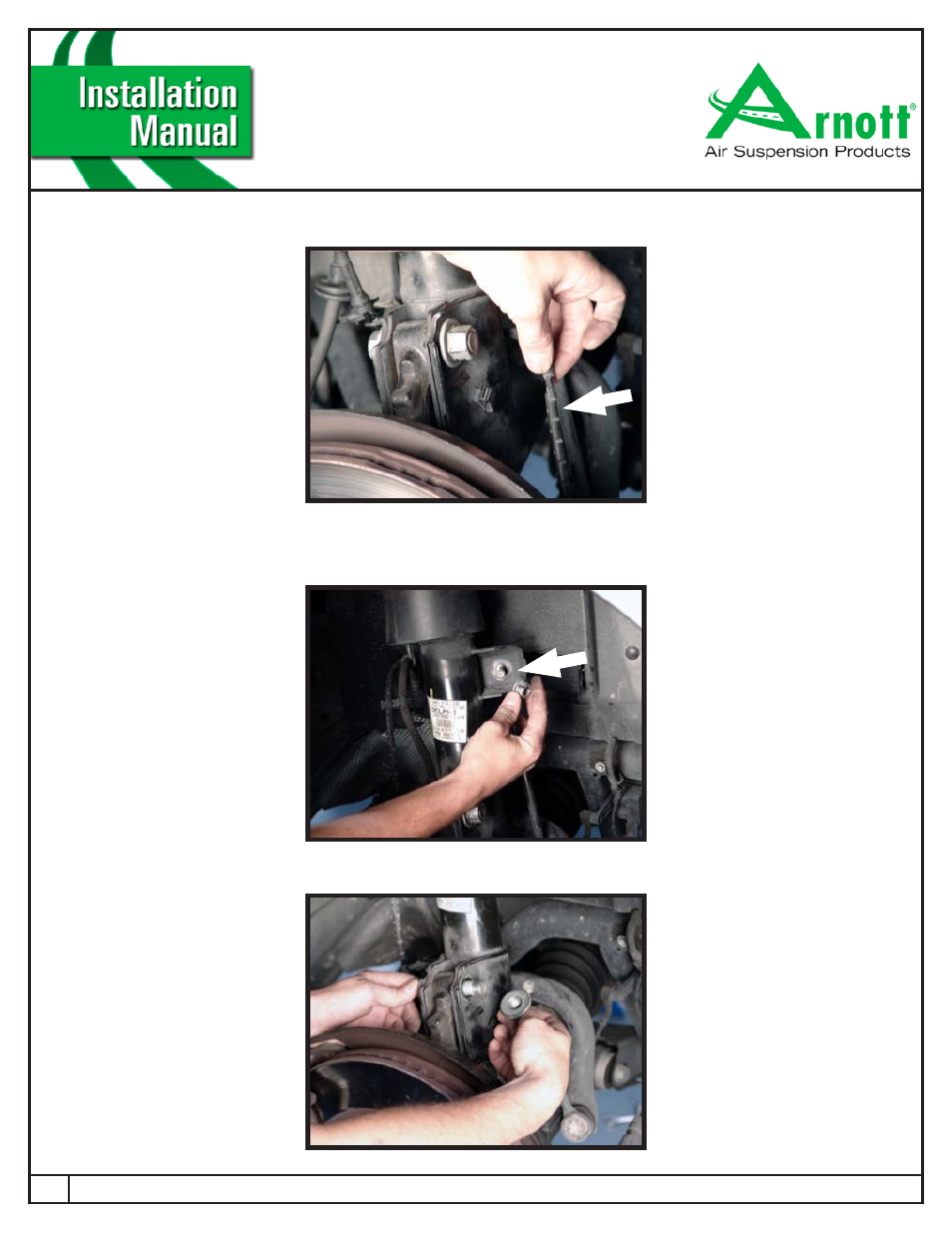

REMOVE THE SENSOR WIRE FROM THE FRONT SIDE OF THE STRUT HELD ON WITH A SMALL PLASTIC
CLIP. (FIGURE 10-2)
FIGURE 10-2
6.
DISCONNECT THE SWAY BAR END LINK BY REMOVING THE NUT HOLDING THE BALL JOINT TO THE
STRUT. YOU MAY NEED TO HOLD THE BALL JOINT FROM SPINNING BY PLACING A WRENCH ON THE
TWO (2) FLATS OF THE BALL JOINT. (FIGURE 10-3)
7.
REMOVE THE TWO (2) LARGE BOLTS THAT HOLD THE STRUT TO THE SPINDLE ASSEMBLY. (FIGURE 10-4)
FIGURE 10-3
FIGURE 10-4
