ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
5.
LOOSEN BUT DO NOT REMOVE THE TWO REAR BOLTS HOLDING THE CONTROL ARM, LOOSENING
THEM WILL ALLOW THE CONTROL ARM TO MOVE MORE FREELY. (FIGURE 40-5)
6.
WITH EVERYTHING DONE PROPERLY THE LOWER CONTROL ARM SHOULD MOVE FREELY WITHOUT
BINDING. (FIGURE40-6)
7.
INSTALL THE LOWER SPRING SEAT ONTO THE LOWER CONTROL ARM AND SECURE IN PLACE USING
THE SUPPLIED 5/16”-18 X 2 1/2” BOLTS AND FENDER WASHER THROUGH THE HOLE IN THE CENTER.
(FIGURE 40-7)

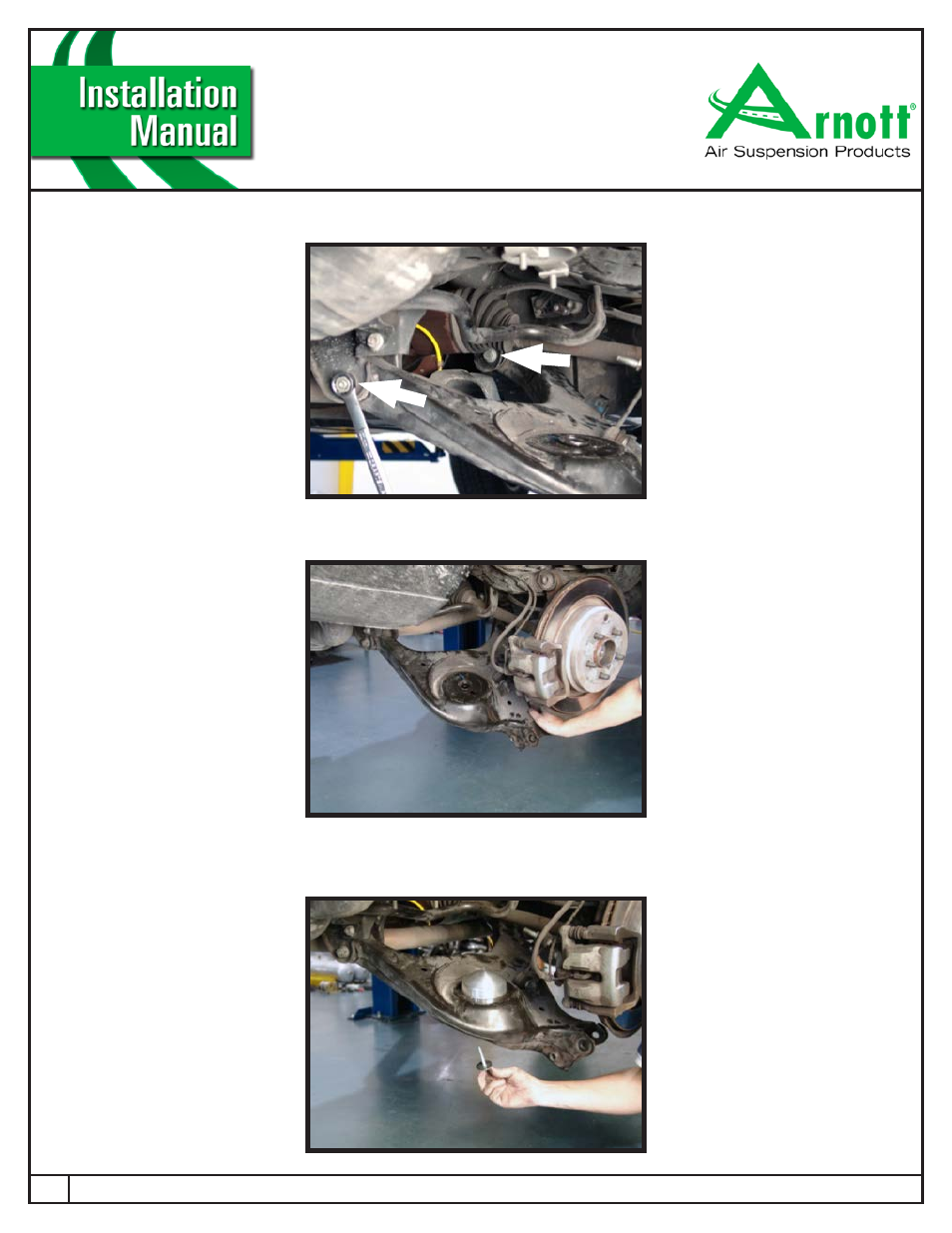

FIGURE 40-5
