ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
11.
REMOVAL COMPLETE. (FIGURE 10-8)

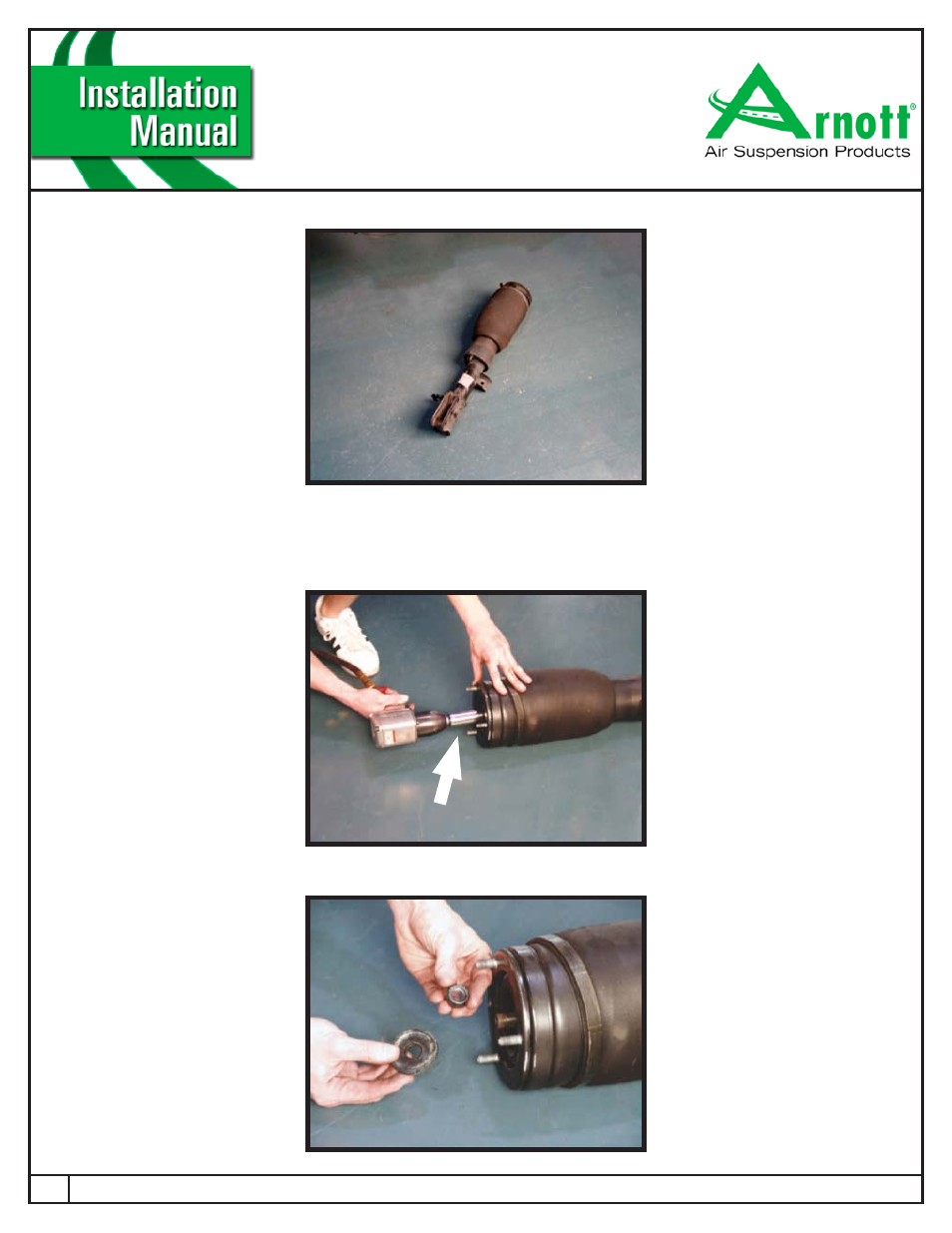

FIGURE 10-8
FRONT AIR STRUT DISASSEMBLY
1.
REMOVE THE SHOCK RETENTION NUT FROM THE TOP OF THE AIR STRUT ASSEMBLY. (FIGURE 20-1)
2.
REMOVE THE NUT AND WASHER. (FIGURE 20-2)
FIGURE 20-1
FIGURE 20-2
