Air Suspension C-2145 REV 4 User Manual
Page 14
14
REV
4
06/24/2014
C-2145
C-2145
ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
8.

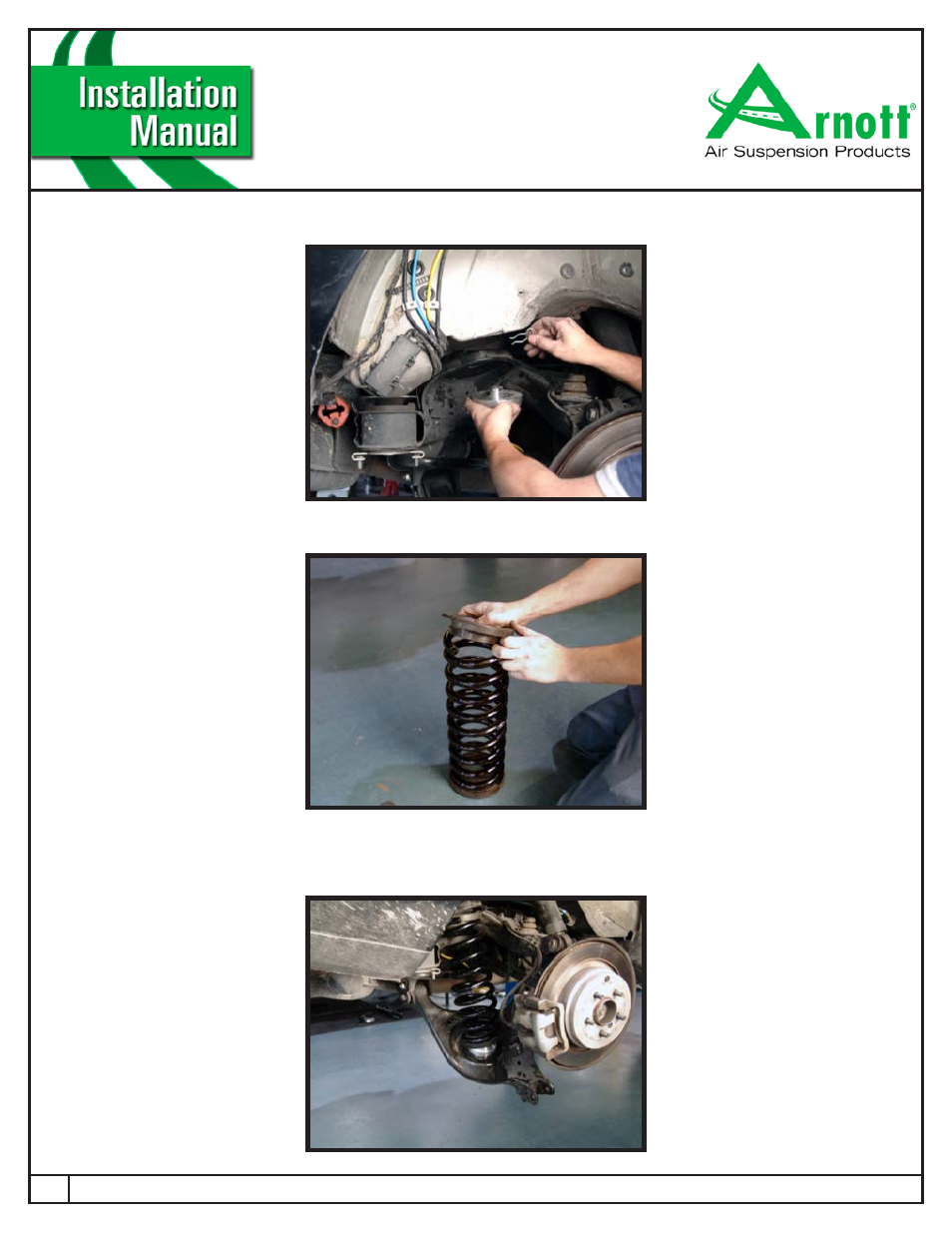

INSTALL THE UPPER SPRING SEAT INTO THE UPPER MOUNTING REUSING THE HITCH PIN.
(FIGURE 40-8)
9.
FIT THE UPPER AND LOWER RUBBER ISOLATORS ONTO THE COIL SPRING. (FIGURE 40-9)
10.
COAT THE LOWER ISOLATOR AND SEAT IN A LUBRICANT TO AID IN INSTALLATION. PLACE THE COIL
SPRING ASSEMBLY INTO THE UPPER PERCH CENTERING THE UPPER SEAT. WHILE PRESSING DOWN
ON THE CONTROL ARM, SLIDE THE BOTTOM OF THE SPRING OVER THE LOWER SEAT. (FIGURE40-10)
FIGURE 40-8
FIGURE 40-9
FIGURE 40-10
