Air Suspension C-2145 REV 4 User Manual
Page 10
10
REV
4
06/24/2014
C-2145
C-2145
ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
3.

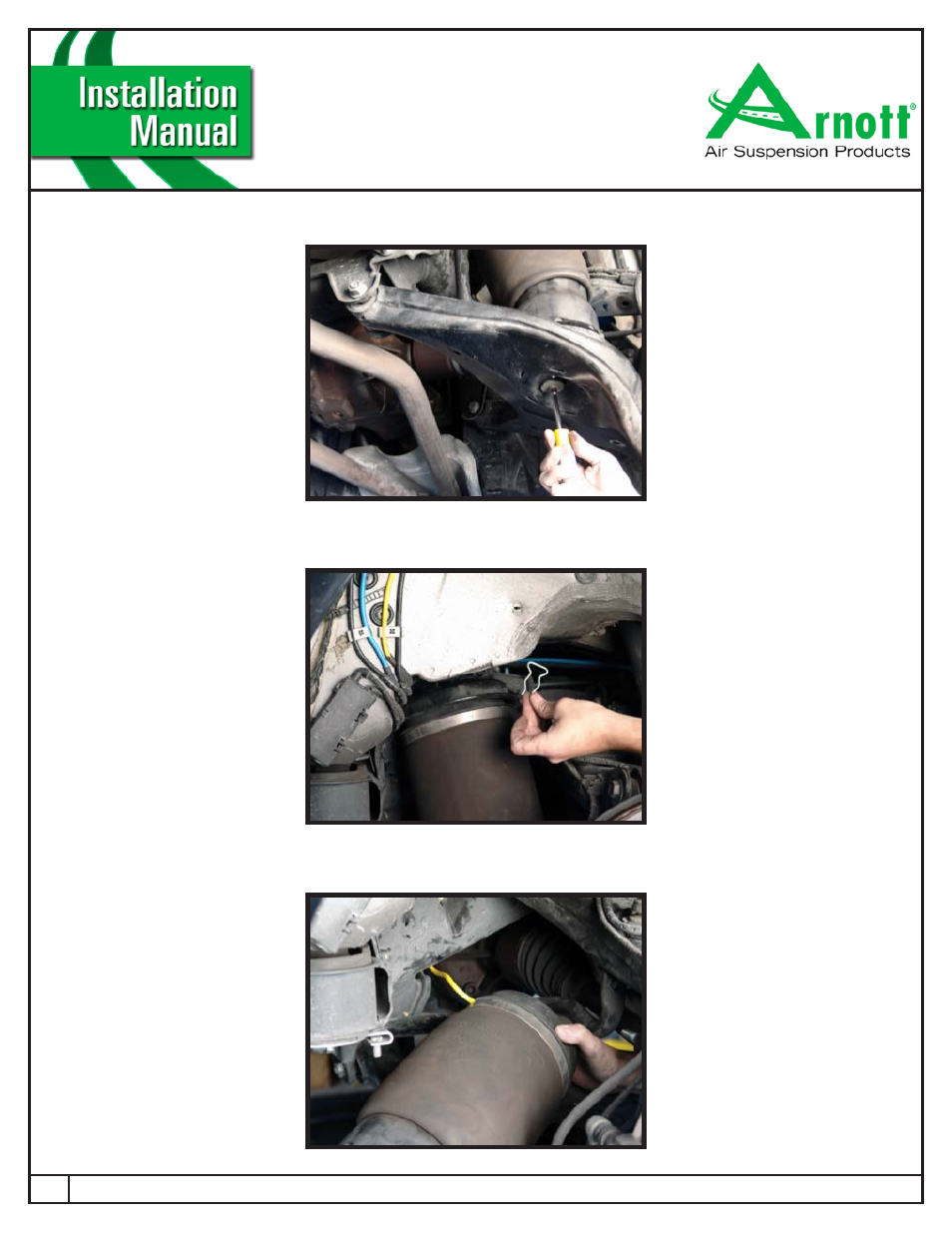

WITH ALL OF THE AIR EVACUATED FROM THE AIR SPRINGS, REMOVE THE LOWER AIR SPRING
RETENTION SCREW FROM THE BOTTOM CONTROL ARM. (FIGURE 30-3)
4.
USING A PICK OR SIMILAR TOOL, REMOVE THE CLIP HOLDING THE TOP OF THE AIR SPRING ONTO THE
FRAME. (FIGURE 30-4)
5.
AFTER BOTH UPPER AND LOWER RETENTION FASTENERS ARE REMOVED YOU CAN PULL THE AIR
SPRING LOOSE AND DISCONNECT THE AIRLINE. (FIGURE 30-5)
FIGURE 30-3
FIGURE 30-4
FIGURE 30-5
