Air Suspension C-2145 REV 4 User Manual
Page 6
6
REV
4
06/24/2014
C-2145
C-2145
ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
3.

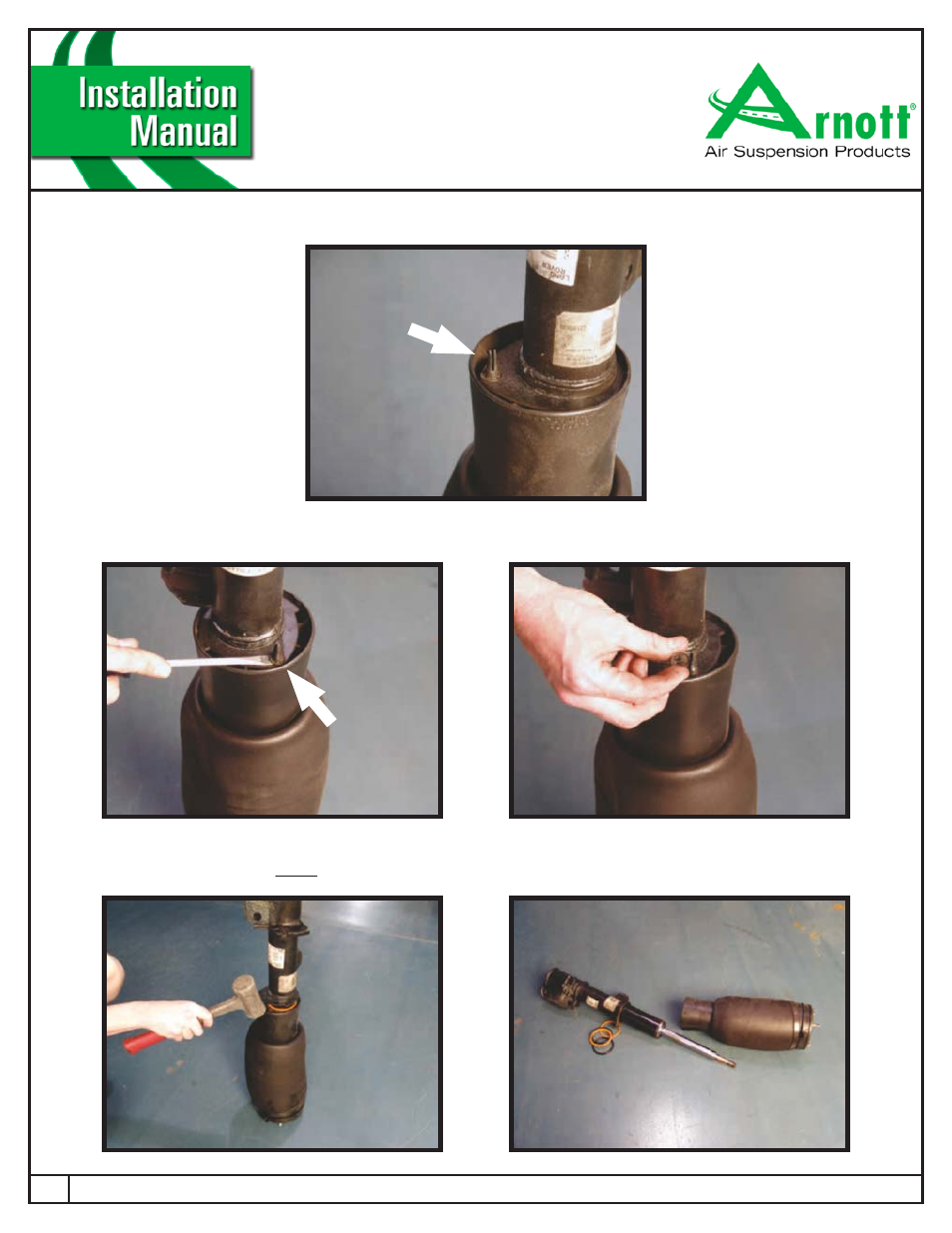

WITH THE UPPER RETENTION HARDWARE REMOVED, FLIP THE STRUT OVER AND LOCATE THE
ALIGNMENT PIN ON THE BOTTOM OF THE AIR SPRING ASSEMBLY. (FIGURE 20-3)
FIGURE 20-3
4.
WITH A SLOTTED SCREWDRIVER OR OTHER ADEQUATE TOOL, REMOVE THE LOCK WASHER FROM
THE ALIGNMENT PIN. (FIGURE 20-4)
5.
TAP THE BOTTOM OF THE AIR SPRING WITH A SOFT FACED MALLET TO DISENGAGE THE O-RING
SEALS. (FIGURE 20-5)
NOTE: Air spring as well as all o-rings and o-ring spacers are discarded. The shock is to be
reused during reinstallation.
FIGURE 20-4
FIGURE 20-5
