Air Suspension C-2145 REV 4 User Manual
Page 4
4
REV
4
06/24/2014
C-2145
C-2145
ARNOTT COIL SPRING CONVERSION KIT
FOR
2006-2012
LAND ROVER RANGE ROVER
8.

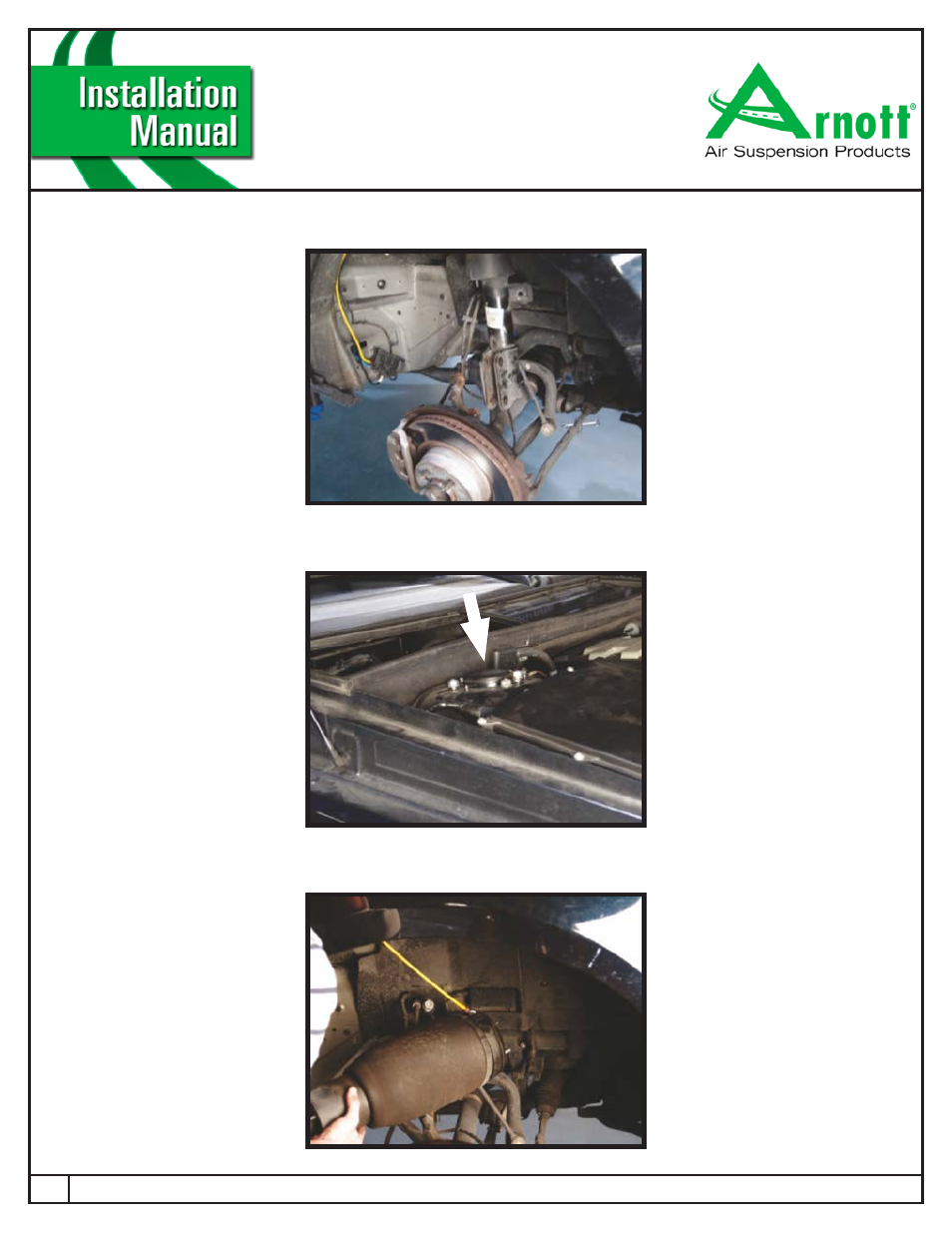

WITH THE NUTS AND BOLTS REMOVED FROM THE SPINDLE ASSEMBLY, PULL THE SPINDLE OUTWARD
WHILE PUSHING THE STRUT INWARD TO DISENGAGE THEM. (FIGURE 10-5)
FIGURE 10-5
9.
UNDER THE HOOD ARE THE UPPER RETENTION FASTENERS, REMOVE ALL THREE (3) BEING CAREFUL
NOT TO DROP THE STRUT. (FIGURE 10-6)
10.
WITH THE STRUT REMOVED YOU CAN NOW GAIN ACCESS TO ITS AIR HOSE CONNECTION, REMOVE
THE FITTING TO FREE THE ASSEMBLY. (FIGURE 10-7)
FIGURE 10-6
FIGURE 10-7
