1-28 Chapter 1: Product introduction
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!

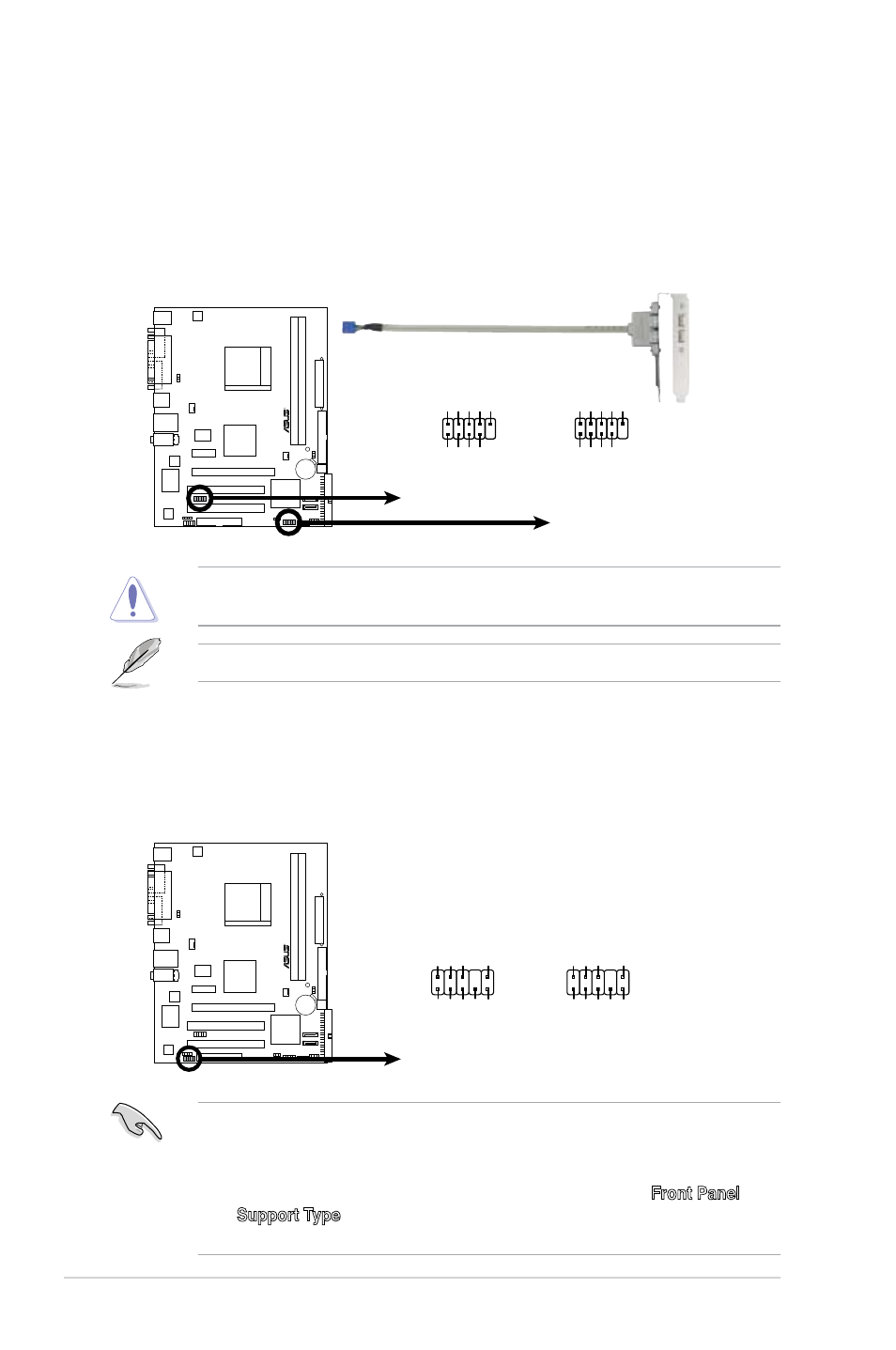

6. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specification that supports up to 480 Mbps connection speed.
The USB 2.0 module is purchased separately.
M2V-MX.SE
R
M2V-MX.SE.USB.2.0.Connectors
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
1
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
1
7. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports the AC`97 audio standard. Connect one end of the front panel audio
I/O module cable to this connector.
M2V-MX.SE
R
M2V-MX.SE.Front Panel Audio Connector
HP_HD
MIC2_
L
HP_R HP_
L
MIC2_JD
Jack_Sense
MIC2_R
PRESENSE# AGND
AAFP
Legacy AC’97-compliant
pin definition
NC
MIC2_L
Line out_R Line out_L
NC
NC
MIC2_R
NC AGND
Azalia-compliant
pin definition
• We recommend that you connect a high-definition front panel audio module
to this connector to avail of the motherboard’s high-definition audio capability.
• By default, this connector is set to HD Audio. If you want to connect a
AC'97 front panel audio module to this connector, set the Front.Panel.
Support Type item in the BIOS setup to [AC97]. See SouthBridge VIA
VT8237S Configuration in.section 2.4.3 Chipset.
