Pci.slots, Pci.express.x16.slot, Pci.express.x1.slot – Asus M2V-MX SE User Manual
Page 30
1-20
Chapter 1: Product introduction
1.8.3.
PCI.slots
The PCI slots support cards such as
a LAN card, SCSI card, USB card,
and other cards that comply with PCI

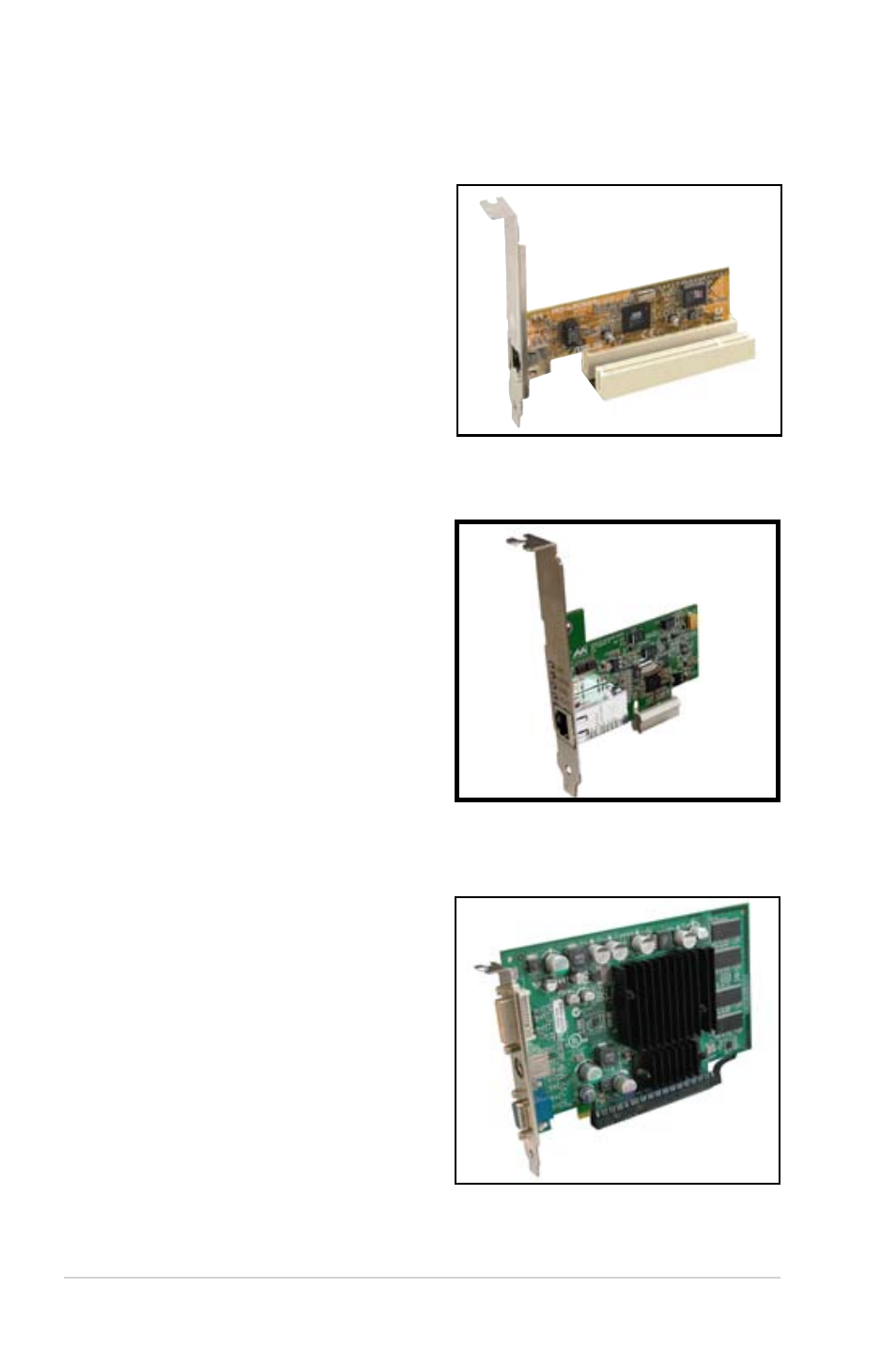

specifications. The figure shows a LAN
card installed on a PCI slot.
1.8.5.
PCI.Express.x16.slot
This motherboard has supports PCI
Express x16 graphic cards that comply
with PCI Express specifications. The
figure shows a graphics card installed on
the PCI Express x16 slot.
1.8.4.
PCI.Express.x1.slot
This motherboard supports PCI Express
x1 network cards, SCSI cards and other
cards that comply with the PCI Express
specifications. The following figure shows
a network card installed on the PCI
Express x1 slot.
