2. Components
Left Side

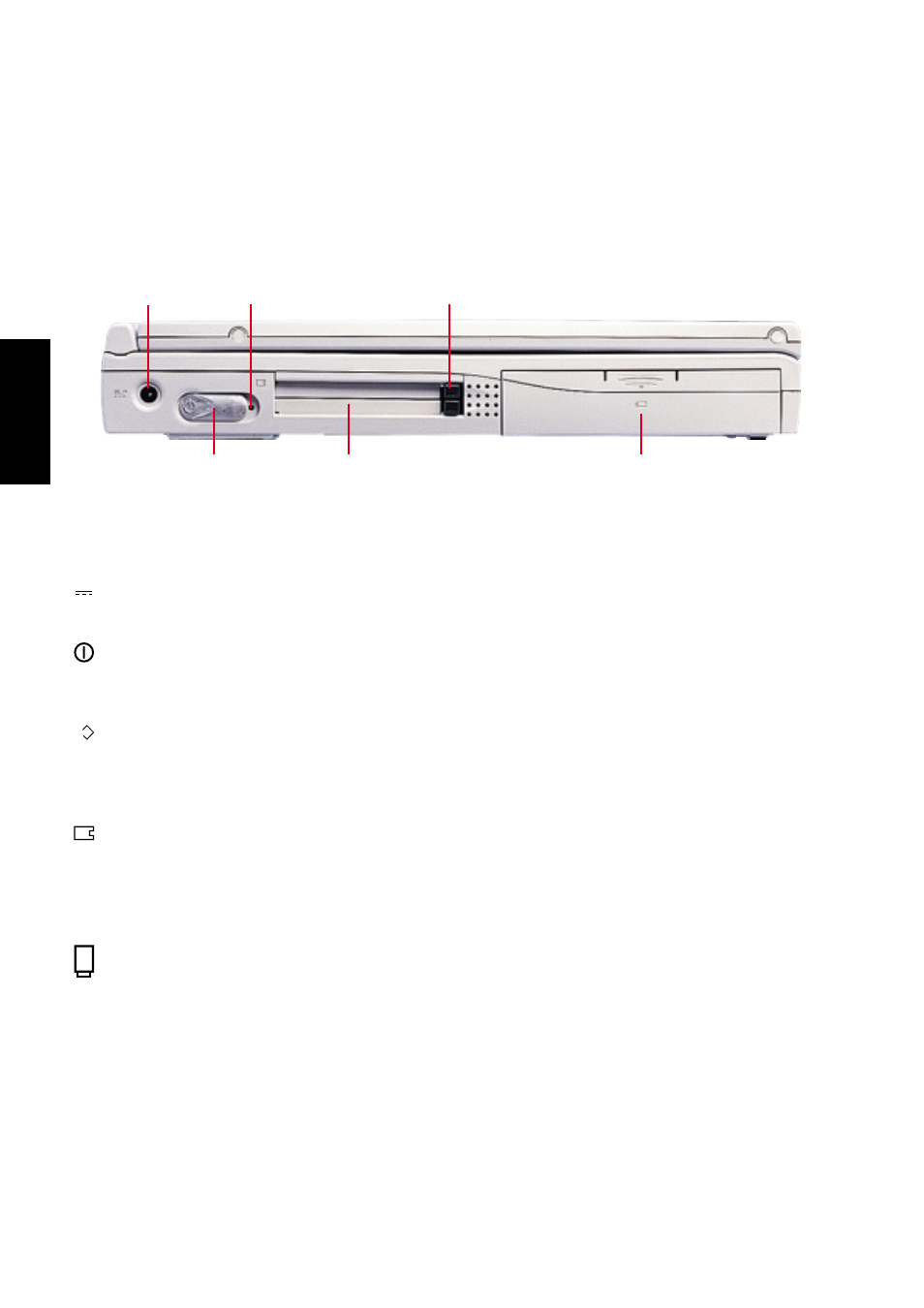

Refer to the diagram below to identify the components on the left side of the Notebook PC.
Left Component Descriptions
The following describes the components on the left side of the Notebook PC as shown by the
illustration above.
DC Input
The supplied power adapter converts AC power to DC power for use with this jack.
Power Switch
The power switch allows powering ON and OFF the Notebook PC. The momentary switch re-
quires about one second to turn ON the power and about two seconds to turn OFF the power.
Reset Button
The reset button is used for rebooting the Notebook PC if or turning OFF
the power does not respond. To use this function, momentarily depress the button within the hole
with a pen or pencil and the Notebook PC will reboot.
PCMCIA
Two PCMCIA 2.1 compliant sockets for two Type I/II or one Type III PC card are available. The
lower socket supports 32-bit CardBus and Zoomed Video to accommodate Notebook PC expan-
sion options such as memory cards, fax/modems, SCSI adapters, high-speed network adapters, and
video capture/conference cards.
Battery Compartment
The battery compartment houses the 9-cell Li-Ion battery pack.
DC Input
PCMCIA Socket
PCMCIA Eject
Power Switch
Reset Button
Battery
Compartment
reset
DC IN
