1.5.2 Rear Panel
The rear panel contains the ports for the unit's data cable and
power cable connections.

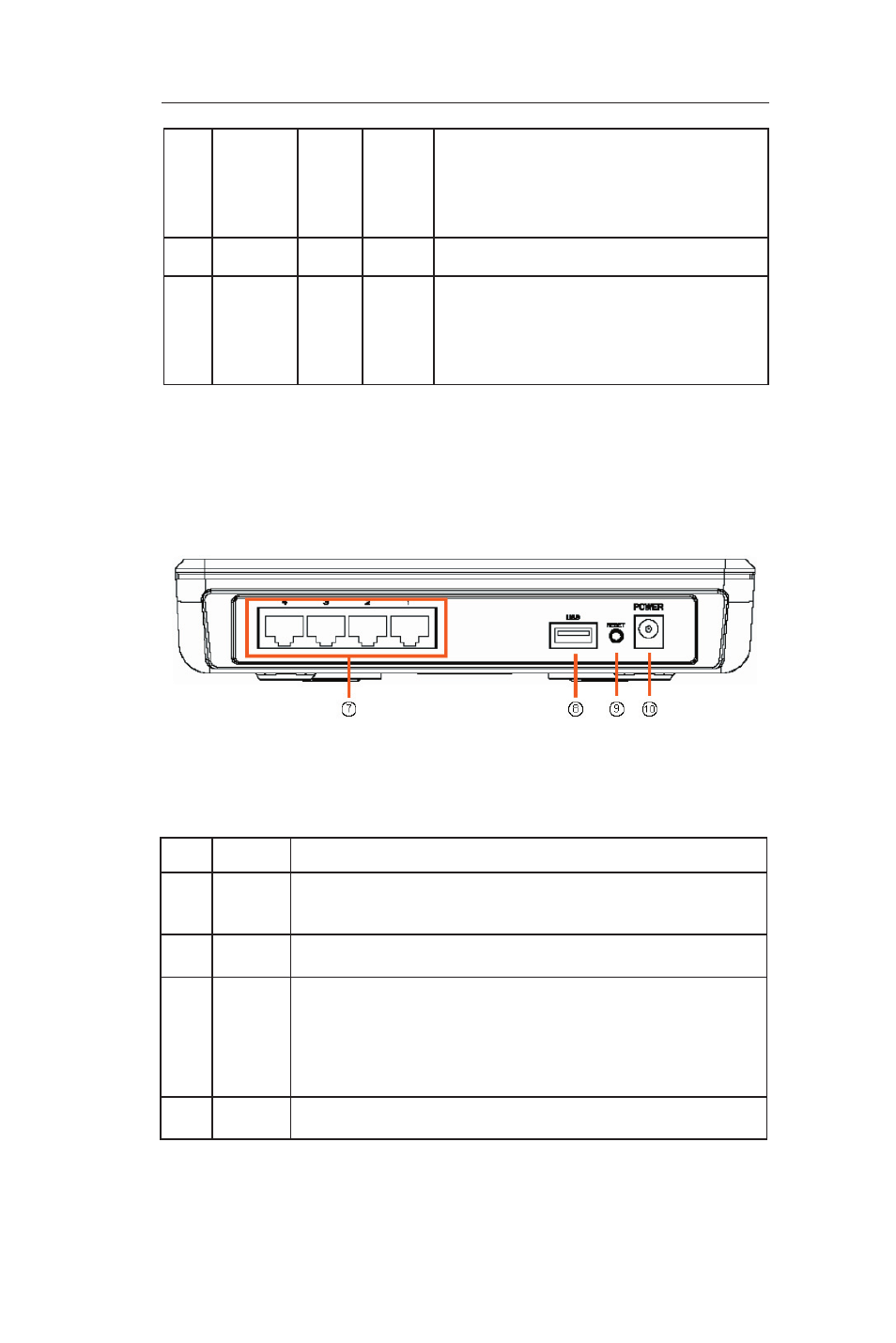

Figure 1.2 Rear Panel Connectors
Table 1.2 Rear Panel Labels and LEDs
Label
Indication
⑦
1 – 4
LAN Ports: connects to your PC's Ethernet port, or to the
uplink port on your LAN's hub/switch, using the Ethernet cable.
⑧
USB
USB Port: connects to your USB printer.
⑨
RESET
Reset Button
1. Reboots the device
2. Resets the system confi guration to the factory defaults if
pressed for more than 5 seconds.
⑩
POWER Power Input Jack: connects to the supplied AC adapter
OFF
mode and collision is occurring.
The LAN port is operating in half duplex
mode and no collision is detected.
⑥
USB
Identifi es the USB port LED
③
STATUS Green ON
OFF
A USB printer is connected and detected by
the GigaX1104PS.
No printer is connected or detected.
