Page 7

6
GigaX1104PS User's Manual
CD with Print Server Manager program and user manual
Wall mount kits
1.5 Finding Your Way Around
1.5.1 Front Panel
The front panel contains LED indicators that show the status of the
unit.

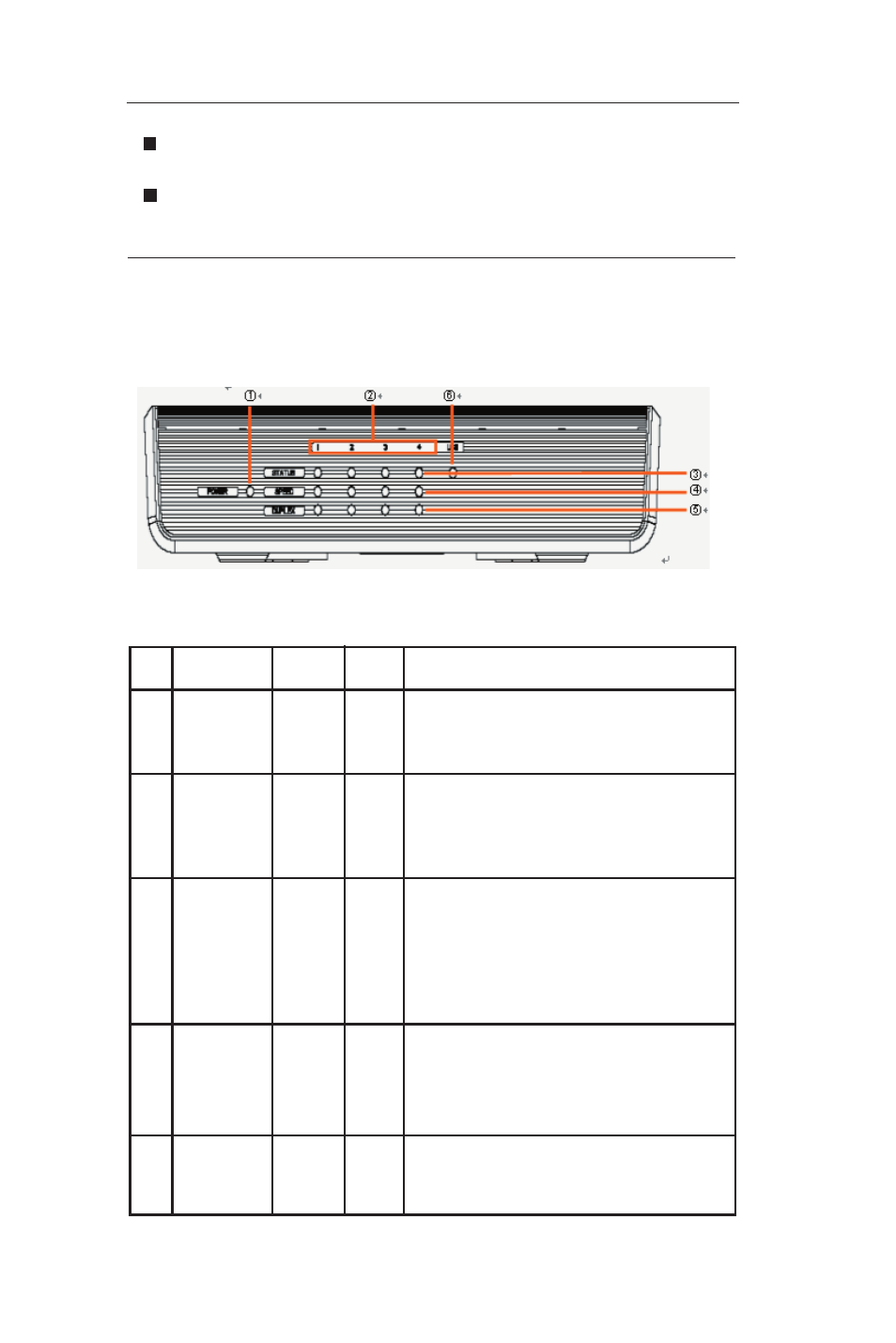

Figure 1.1 Front Panel LEDs
LED Label Color Status
Indication
①
POWER Green ON GigaX1104PS is powered on
OFF GigaX1104PS is powered off
② 1 – 4
Identifies the LAN port LEDs. Status of
each LAN port is indicated by 3 LEDs:
STATUS, SPEED and DUPLEX.
③ STATUS
Green ON Ethernet link is established and active
Blinking Data is sent or received via the
connection
OFF No Ethernet link
④ SPEED Green ON Speed is 1000Mbps
Amber ON Speed is 100Mbps
OFF Speed is 10Mbps or no link is established.
⑤
DUPLEX Amber ON The LAN port is operating in full-duplex mode.
Blinking The LAN port is operating in half-duplex
Table 1.1 Front Panel Label and LEDs
