9
GigaX1104PS User's Manual
1.6.3 Wall Mount Instructions:

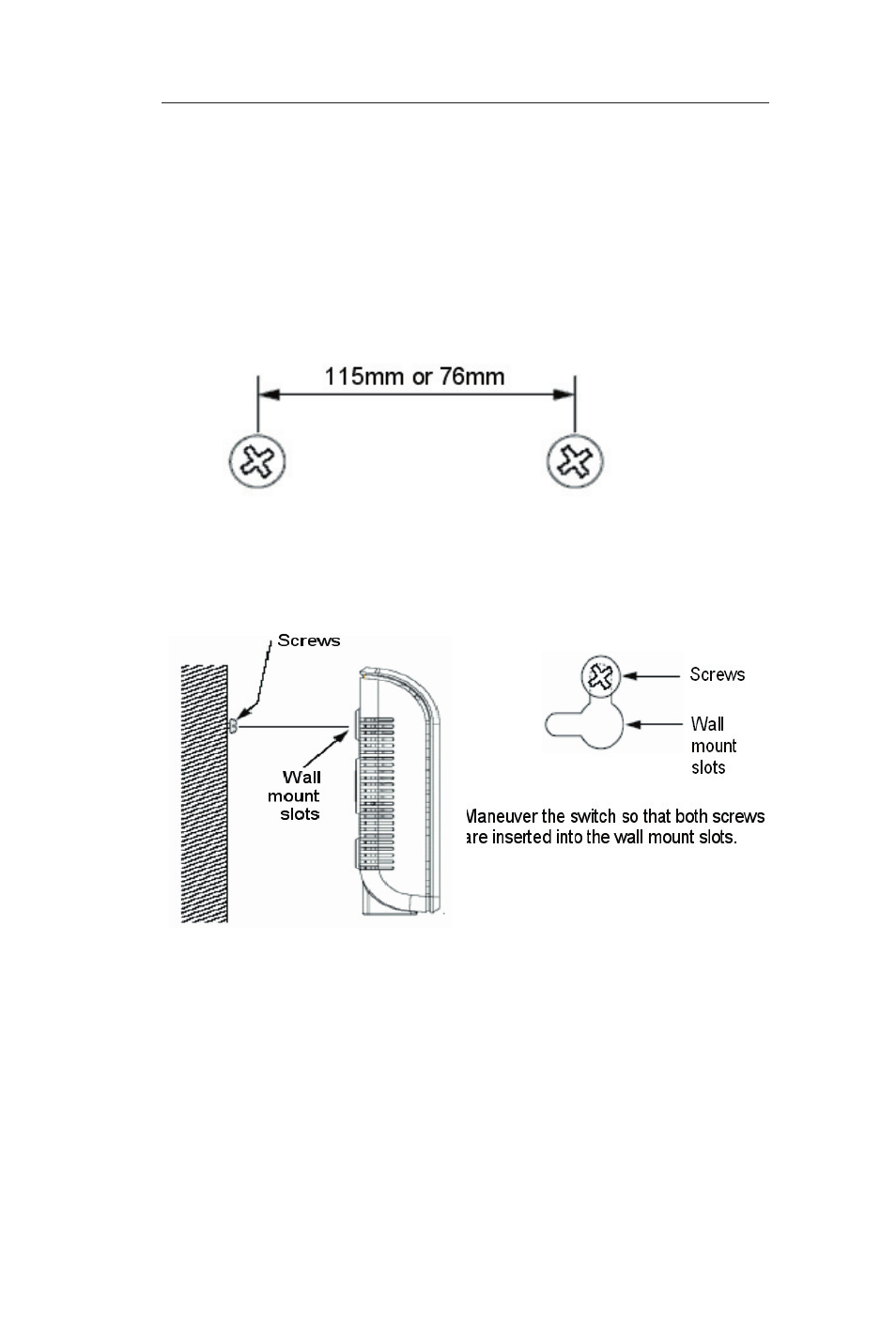

1. Attach two screws on the wall, separated by 115mm if you
want the front or rear panel facing upward, 76mm if you want left or
right side facing upward. Make sure that the two screws are leveled.
Note that there are four wall mount slots and you may choose any
adjacent slots for wall mounting.
2. Line up the wall mount slots with the screws and maneuver
GigaX1104PS so that both screws are inserted into the wall mount
slots as indicated in the following fi gures.
Line up the wall mount slots with
both screws.
