ASUS Z87-C 1-28
1.9 Connectors

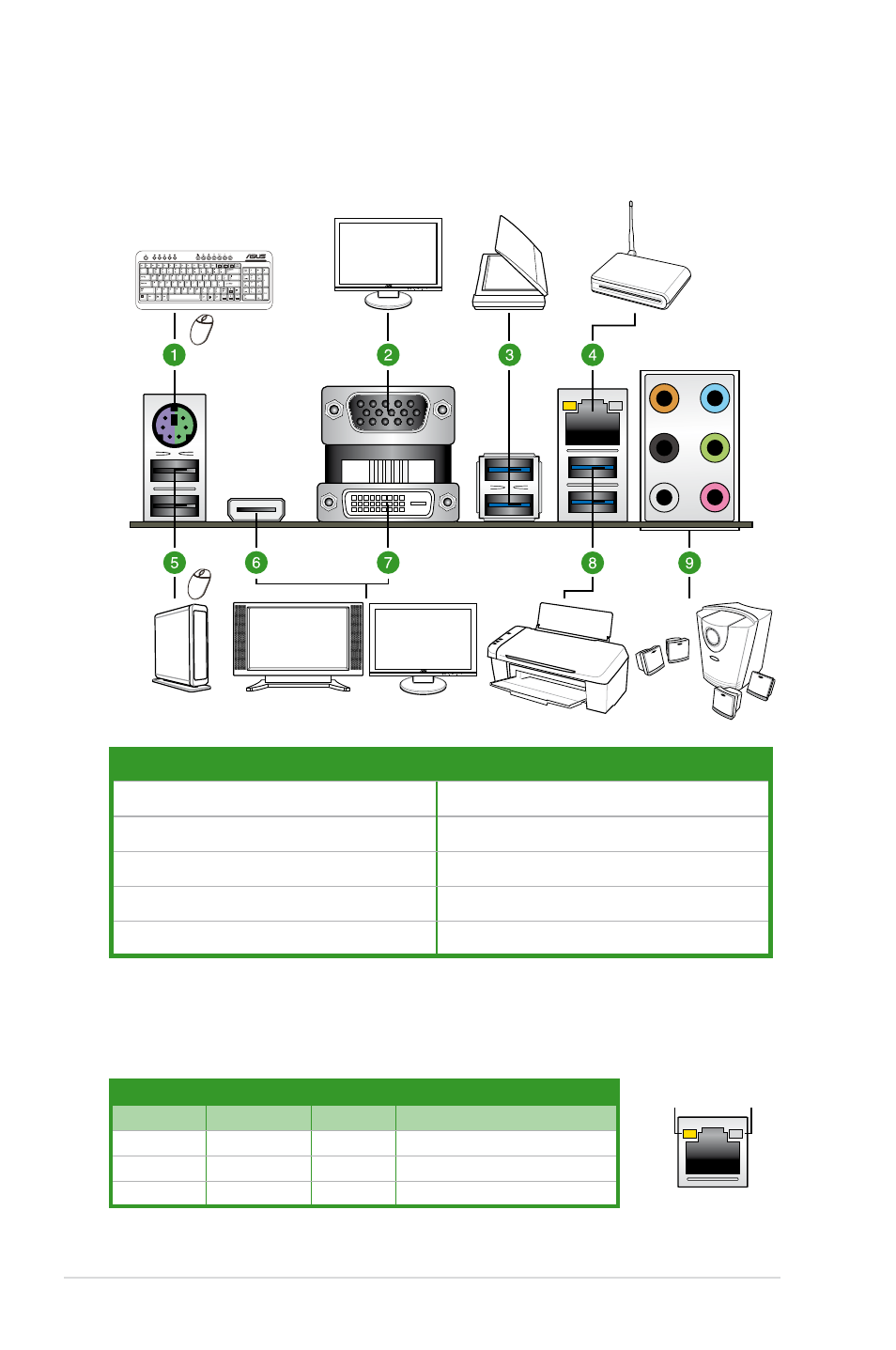

1.9.1 Rear panel connectors
Rear panel connectors
1. PS/2 keyboard/mouse combo port 6. HDMI port
2. VGA port 7. DVI-D port
3. USB 3.0 ports 5 and 6 8. USB 3.0 ports 3 and 4
4. Intel ® LAN (RJ-45) port* 9. Audio I/O ports**
5. USB 2.0 ports 7 and 8
* and **: Refer to the tables for LAN port LEDs and audio port definitions.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
* LAN port LED indications
ACT/LINK
LED
SPEED
LED
LAN port
