1-29

Chapter 1: Product introduction

1.9.2

Internal connectors

1.

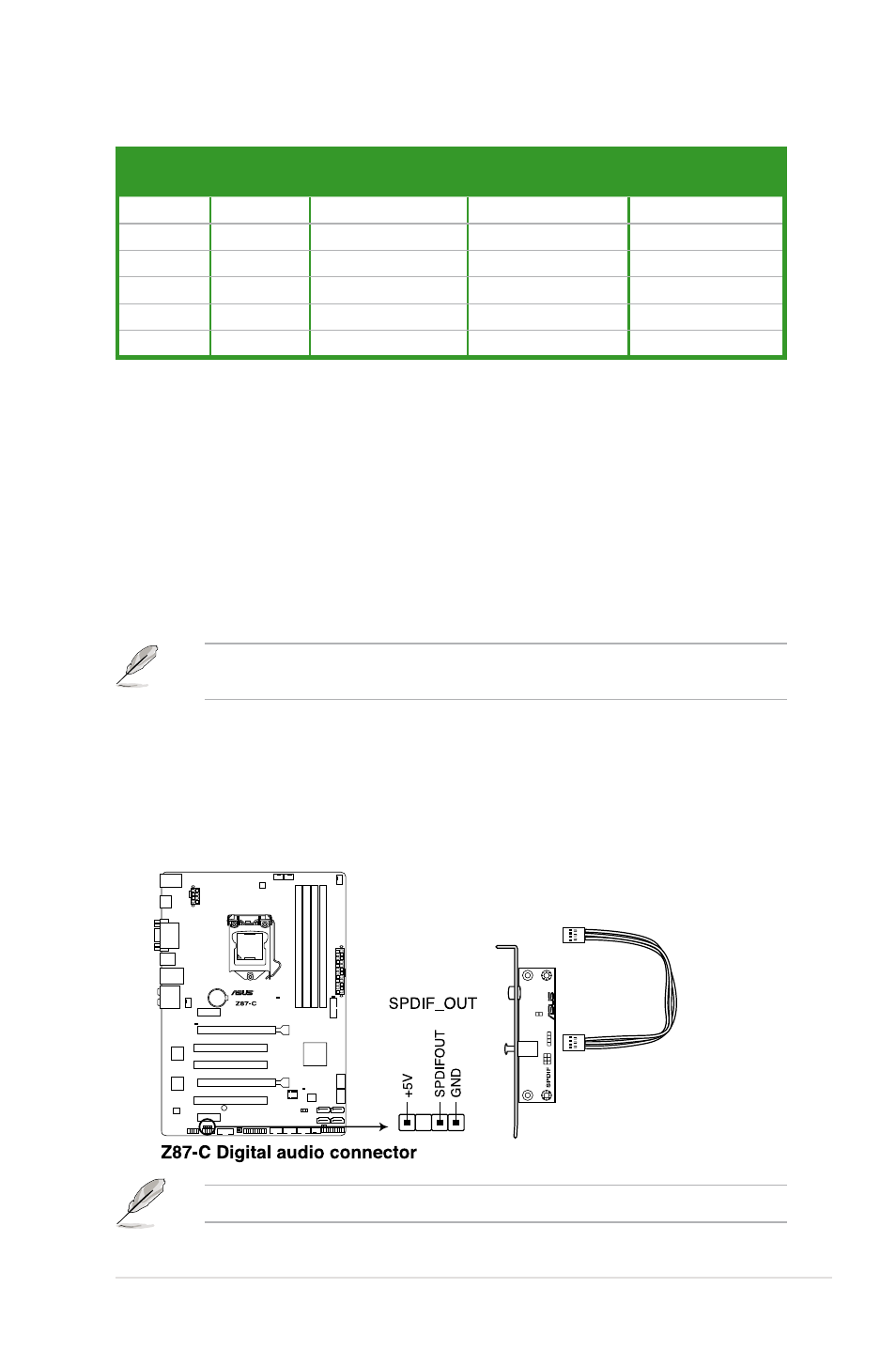

Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect

the S/PDIF Out module cable to this connector, then install the module to a slot

opening at the back of the system chassis.

1.

Line In port (light blue). This port connects to the tape, CD, DVD player, or other

audio sources.

2.

Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6, and

8-channel configurations, the function of this port becomes Front Speaker Out.

3.

Microphone port (pink). This port connects to a microphone.

4.

Center/Subwoofer port (orange). This port connects to a center/subwoofer speakers.

5.

Rear speaker out port (black). This port connects to a tape recorder, CD and DVD

player, or other audio sources.

6.

Side speaker out port (gray). This port connects to a side speaker in an 8-channel

audio configuration.

To configure an 8-channel audio output, use a chassis with HD audio module in the front

panel to support 8-channel audio output.

** Audio 2, 4, 6, or 8-channel configuration

Port

Headset

2-channel

4-channel

6-channel

8-channel

Light Blue Line In

Line In

Line In

Line In

Lime

Line Out

Front Speaker Out Front Speaker Out

Front Speaker Out

Pink

Mic In

Mic In

Mic In

Mic In

Orange

Center/Subwoofer

Center/Subwoofer

Black

Rear Speaker Out

Rear Speaker Out

Rear Speaker Out

Gray

Side Speaker Out

The S/PDIF module is purchased separately.
