ASUS Z87-C 1-4

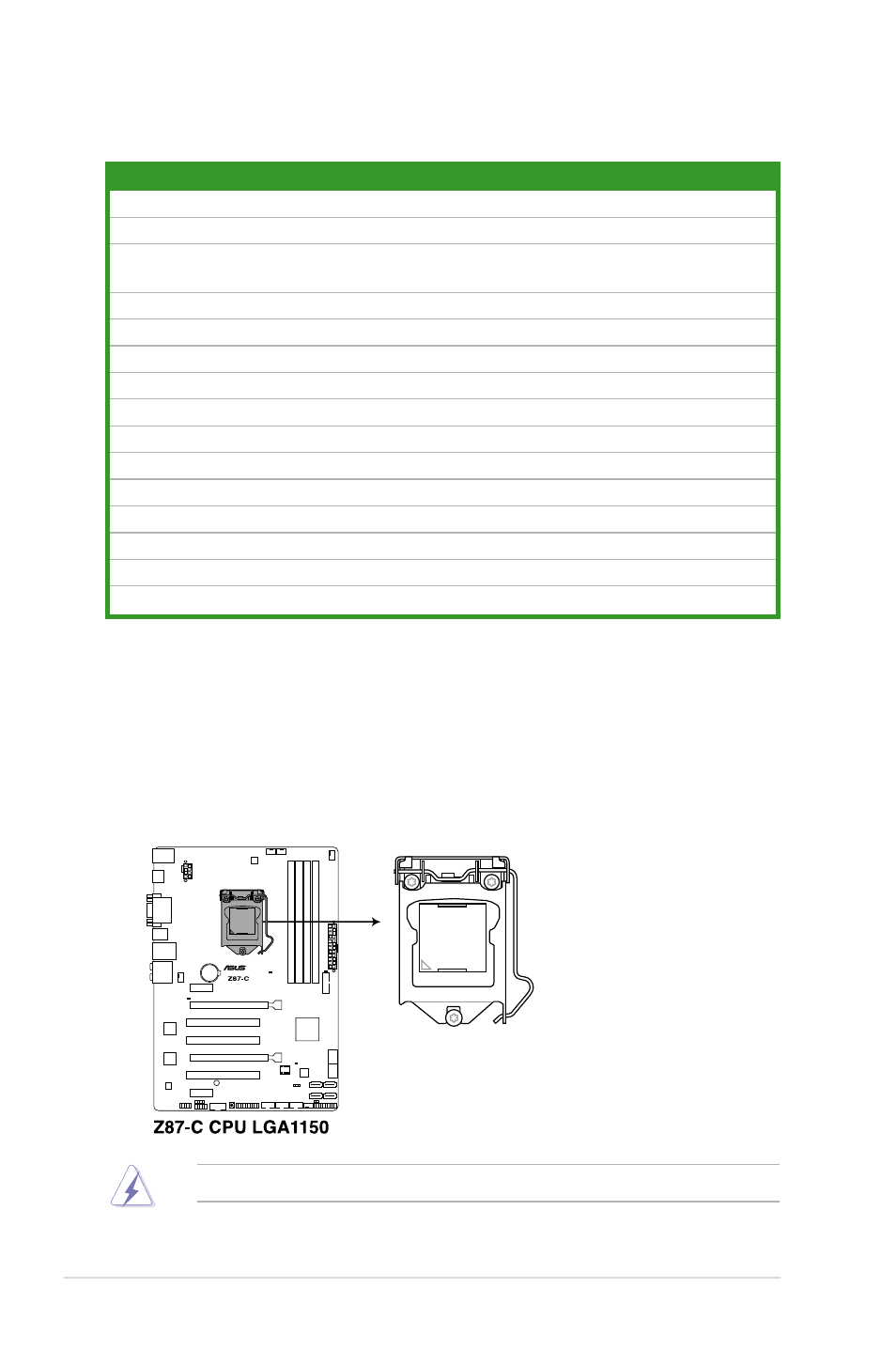

1.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1150 socket designed for the 4th
generation Intel ® Core™ i7 / Intel ® Core™ i5 / Intel ® Core™ i3, Pentium ® and Celeron ®
processors.
Ensure that all power cables are unplugged before installing the CPU.
Connectors/Jumpers/Slots Page
1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-30
2. LGA1150 CPU socket 1-4
3. CPU, CPU optional, and chassis fan connectors (4-pin CPU_FAN,
4-pin CPU_OPT, 4-pin CHA_FAN1-3)
1-32
4. DDR3 DIMM slots 1-8
5. USB 3.0 connector (20-1 pin USB3_12) 1-33
6. Clear RTC RAM jumper 1-27
7. Intel ® Z87 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1-6 [yellow]) 1-31
8. DRCT (DirectKey) connector (2-pin DRCT) 1-35
9. System panel connector (20-8 pin PANEL) 1-36
10. USB 2.0 connectors (10-1 pin USB910, USB1112, USB1314) 1-34
11. TPM connector (20-1 pin TPM) 1-31
12. DirectKey button 1-25
13. Serial port connector (10-1 pin COM) 1-33
14. Front panel audio connector (10-1 pin AAFP) 1-35
15. Digital audio connector (4-1 pin SPDIF_OUT) 1-29
1.2.4 Layout contents
