Chapter 2 – Asus MAXIMUS V GENE User Manual
Page 74
Chapter 2

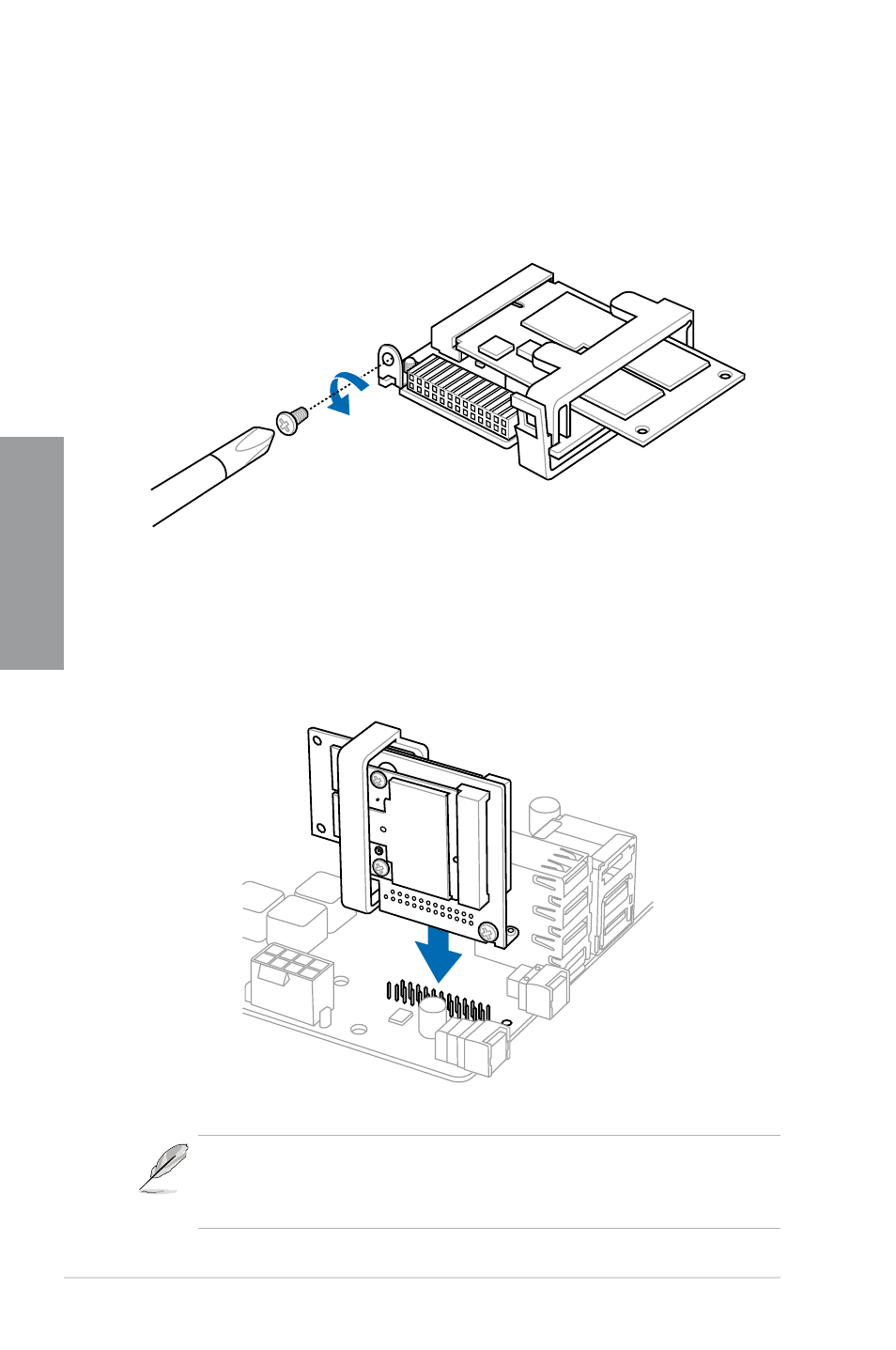

4. Remove the screw beside the 26-pin connector.
5. Locate the mPCIe_Combo connector on the motherboard. Align and insert
the mPCIe Combo on the connector.
• The mPCIe Combo fits in one orientation only.
• Insert the mPCIe Combo with caution to prevent damage to the module, or
the mPCIe_Combo connector pins, or the motherboard.
