Chapter 2 – Asus MAXIMUS V GENE User Manual
Page 72
Chapter 2

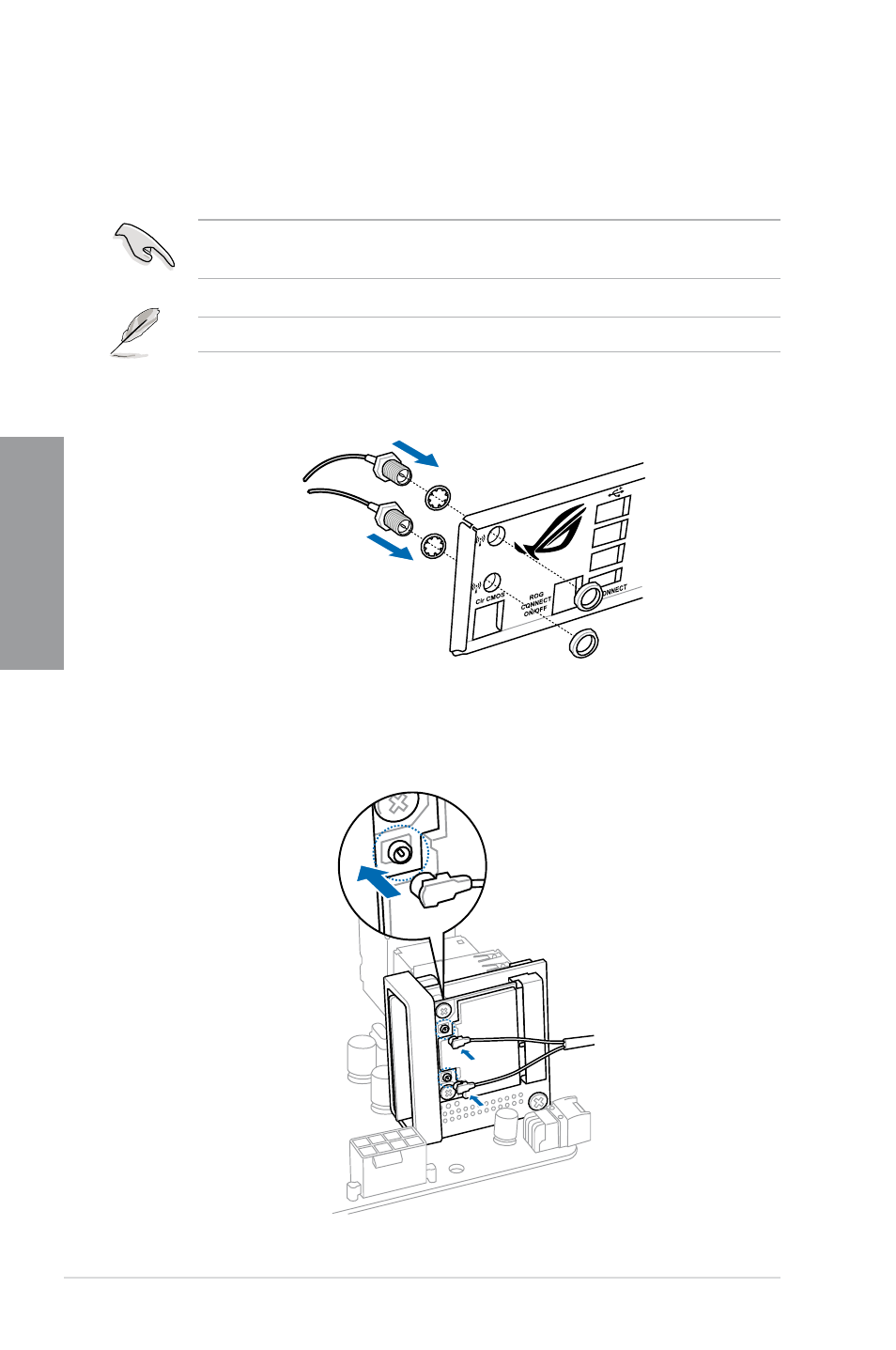

7. Remove the bolt from the Wi-Fi antenna connector. Leave the washer on the
connector.
8. Insert the connector into the I/O shield’s Wi-Fi port hole.
Ensure that the washer is placed between the connector and the back of the I/O
Shield.
The Wi-Fi antenna and its cables are purchased separately.
9. Reattach the bolt on the connector.
10. Connect the opposite end of the Wi-Fi antenna connector to the pins located
on the mPCIe Wi-Fi card.
antenna connector
bolt
washer
I/O Shield
2-50
Chapter 2: Hardware information
