Configuring Firewall RX3042H User's Manual
84

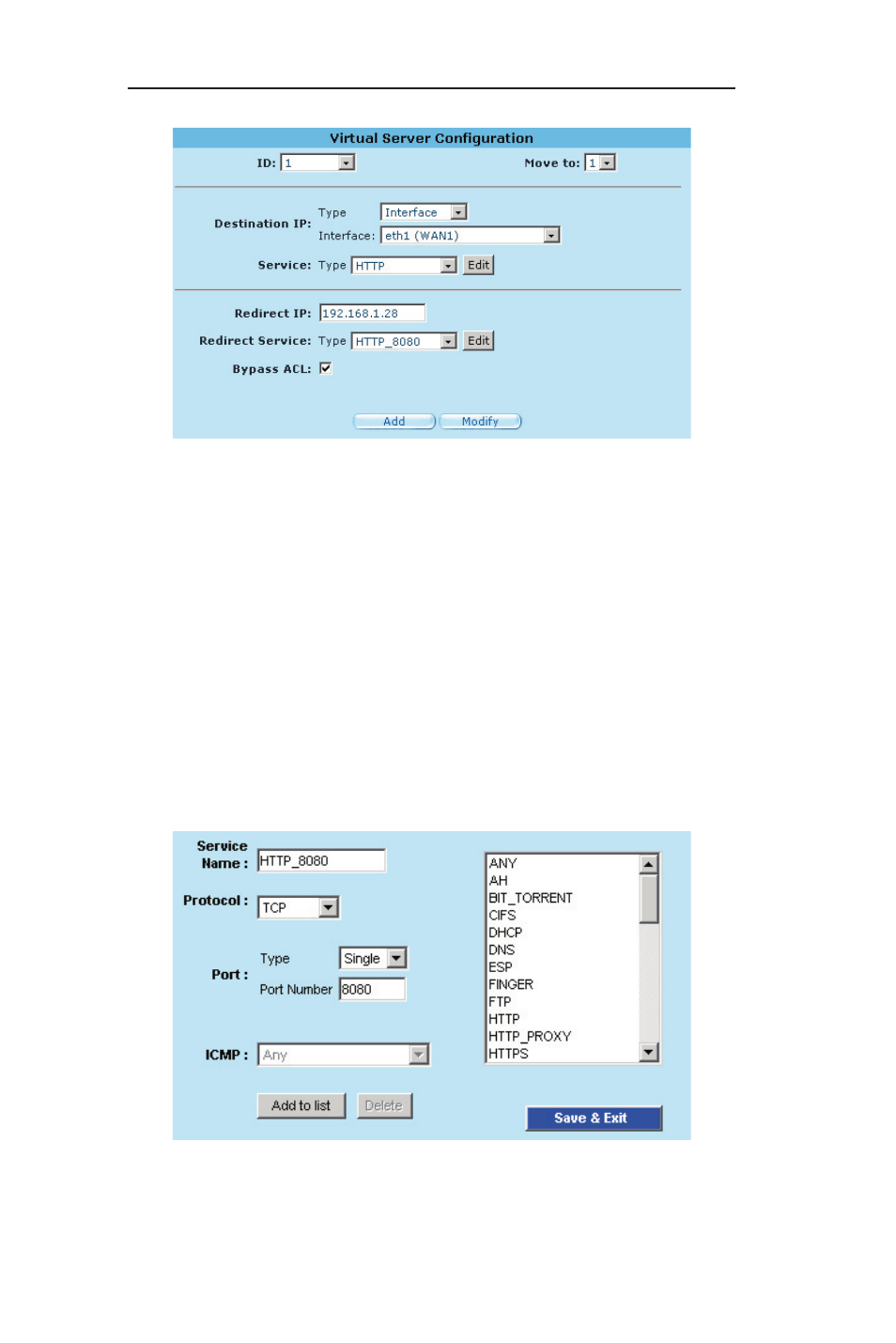

Figure 9.11. Virtual Server Example 1 – Web Server
3. Enter the IP address of the web server, which is 192.168.1.28,
in Redirect IP field.
4. Since the web server is not using the standard TCP port, which
is 80, for providing the http service, a new service type must
be created for http service using TCP port 80. Click on the Edit
button on the redirect service field to create a new service type.
In the popped up Service configuration page, enter the service
name, protocol and port number as shown in Figure 9.12 and
then click on the Add to list to create the new service type,
HTTP_8080. Finally, click the Save & Exit button to save the
new service.
Figure 9.12. Adding a New Service
