RX3042H User's Manual Getting to Know RX3042H
7
Table 2.2 Front Panel Label and LEDs
LED Label Color Status Indication
1 Power Green
ON RX3042H is powered on.
OFF RX3042H is powered off.
2 Status Green
3
USB Identifies the USB port.
1-2 Green
OFF USB device is not detected.
ON USB device is detected.
4
WAN Identifies the WAN port.
1-2
OFF No link is detected.
Green
ON 100Mbps link is detected.
Blinking 100Mbps activity is detected.
Amber
ON 10Mbps link is detected.
Blinking 10Mbps activity is detected.
5
LAN Identifies the LAN port.
1-4
OFF No link is detected.
Green
ON 100Mbps link is detected.
Blinking 100Mbps activity is detected.
Amber
ON 10Mbps link is detected.
Blinking 10Mbps activity is detected.
2.4 Finding Your Way Around
2.4.1 Front Panel
The front panel contains LED indicators that show the status of the unit.

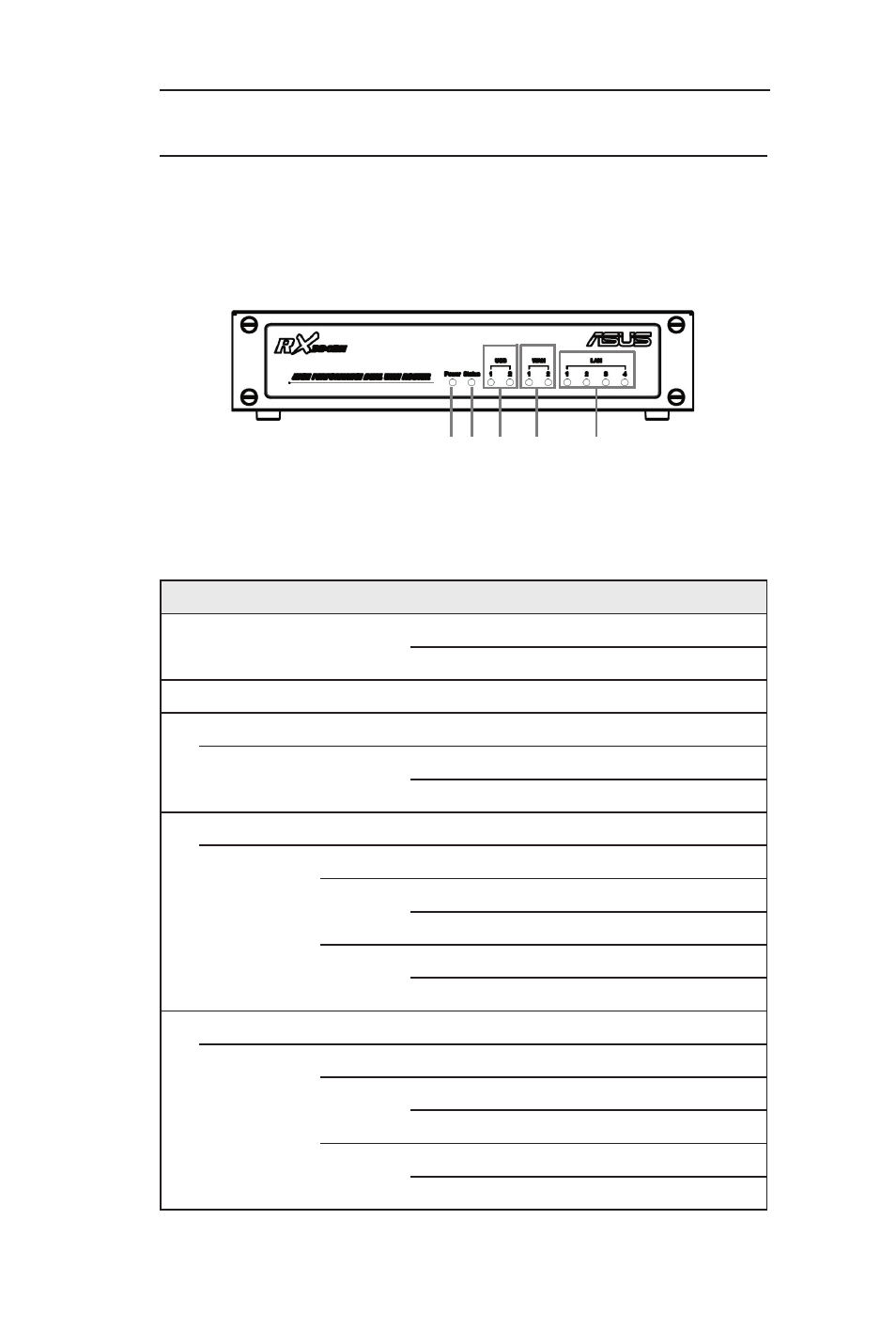

Figure 2.1 Front Panel Label and LEDs
1 2 3 4 5
