RX3042H User's Manual Configuring Firewall
75

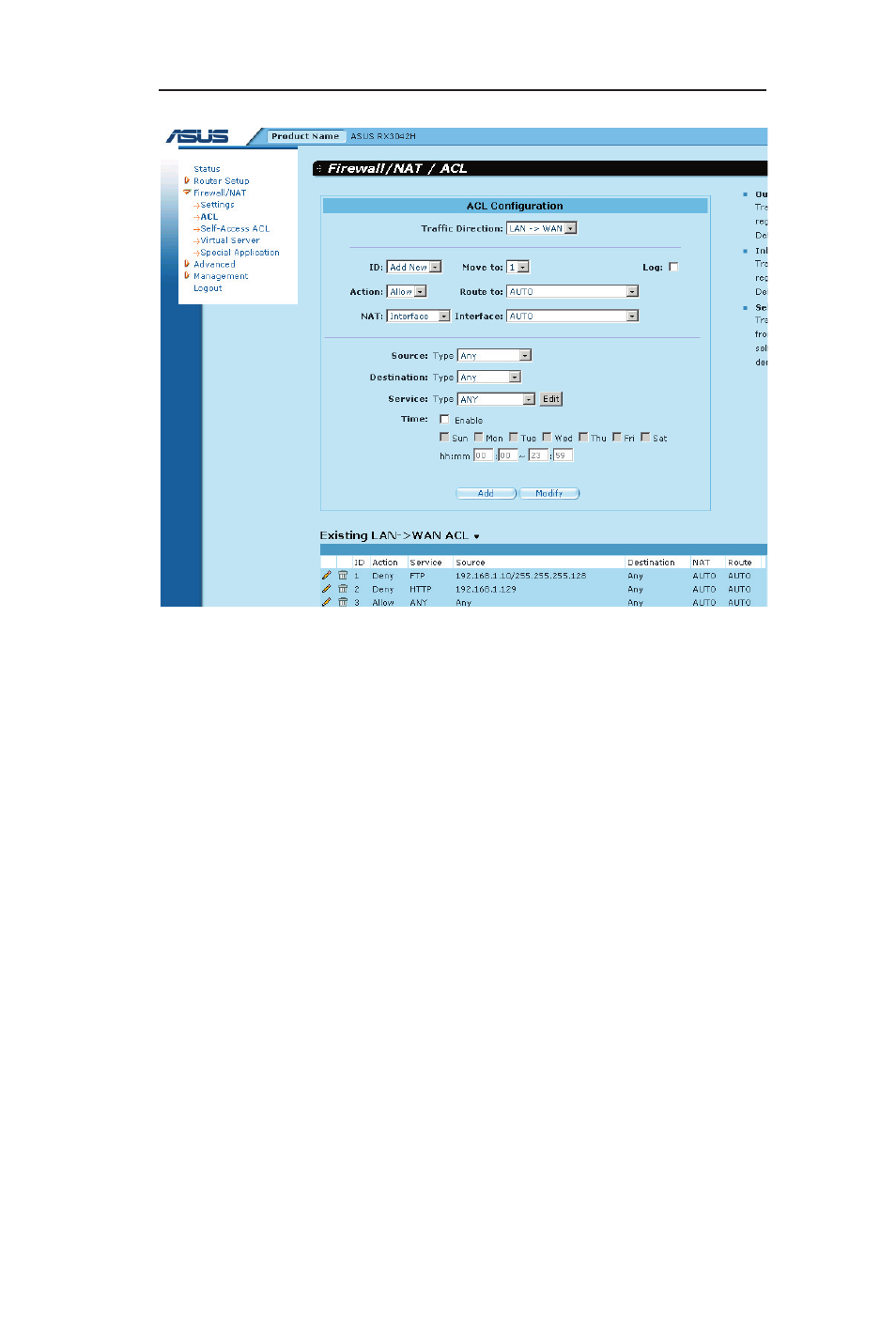

Figure 9.4. ACL Configuration Page
9.5.1 Add an ACL Rule
To add an ACL rule, follow the instructions below:
1. Open the ACL Rule configuration page, as shown in Figure 9.4,
by clicking Firewall ->ACL menu.
2. Select an option from the “Filter Direction” drop-down list. For
example, if you want to create an ACL to filter traffic originated from
LAN and destined to WAN, then choose LAN ->WAN option.
3. Select Add New from the “ID” drop-down list.
4. Set desired action (Allow or Deny) from the Action drop-down list.
5. Select from the Route To drop-down list if you intend to direct
the traffic to a specific interface. Choose AUTO if you want to
have RX3042H route the traffic automatically.
6. Choose NAT type and enter the required information for the
selected NAT type.
7. Make changes to any or all of the following fields: source/
destination IP, service, time and log. Please see Table 9.3 for
