3-40 Chapter 3: BIOS setup
Chapter 3
3.7 Monitor menu

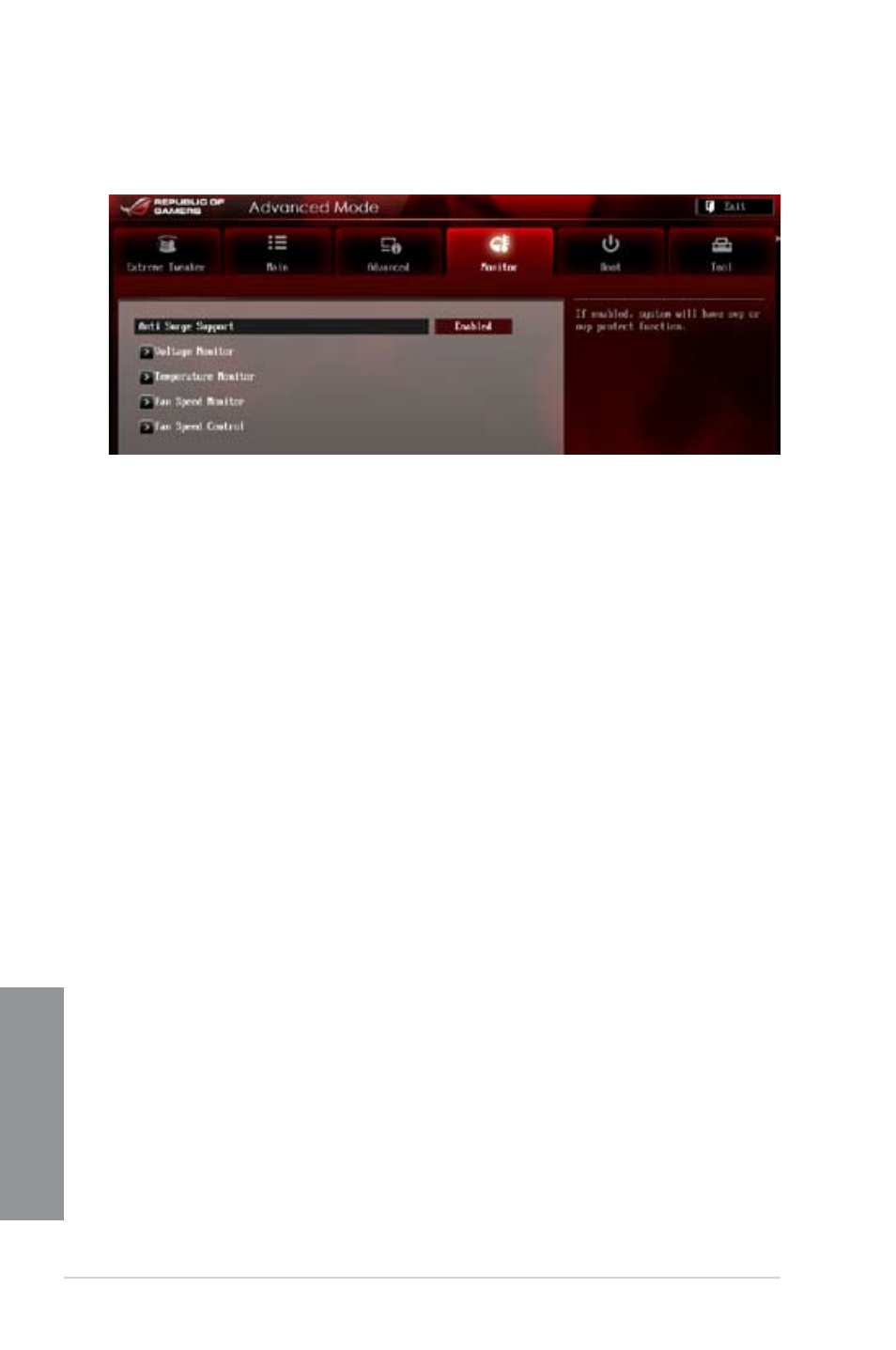

The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Anti Surge Support [Enabled]
This item allows you to enable or disable the Anti Surge function.
Configuration options: [Disabled] [Enabled]
Voltage Monitor
CPU Core 0-3 Voltage; CPU Cache Voltage; CPU System Agent Voltage; CPU Analog
I/O Voltage; CPU Digital I/O Voltage; CPU Input Voltage; DRAM Voltage; PCH Voltage;
3.3V Voltage; 5V Voltage; 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the
onboard voltage regulators. Press and select [Ignore] if you do not wish to
display the detected temperatures.
Temperature Monitor
CPU Temperature; MB Temperature; PLX Temperature; OPT1-3 Temperature;
[xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU, and
motherboard. Press and select [Ignore] if you do not wish to display the
detected temperatures.
PLX Temperature Protection [105]
Shutdown when PLX Bridge Chip reaches this temperature. Minimum is 90 degrees
and maximum is 110 degrees.
Fan Speed Monitor
CPU FAN Speed; CPU OPT Speed; Chassis FAN1/2/3 Speed; Opt1/2/3 Fan Speed
[xxxxRPM] or [Ignored] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU fan,
chassis fan, and optional fan speed in rotations per minute (RPM). If any of the fans
is not connected to the motherboard, the field shows [N/A]. These items are not
user-configurable. Press and select [Ignore] if you do not wish to display the
detected temperatures.
