Asus P7F-E User Manual
Page 43
ASUS P7F-E
2-25

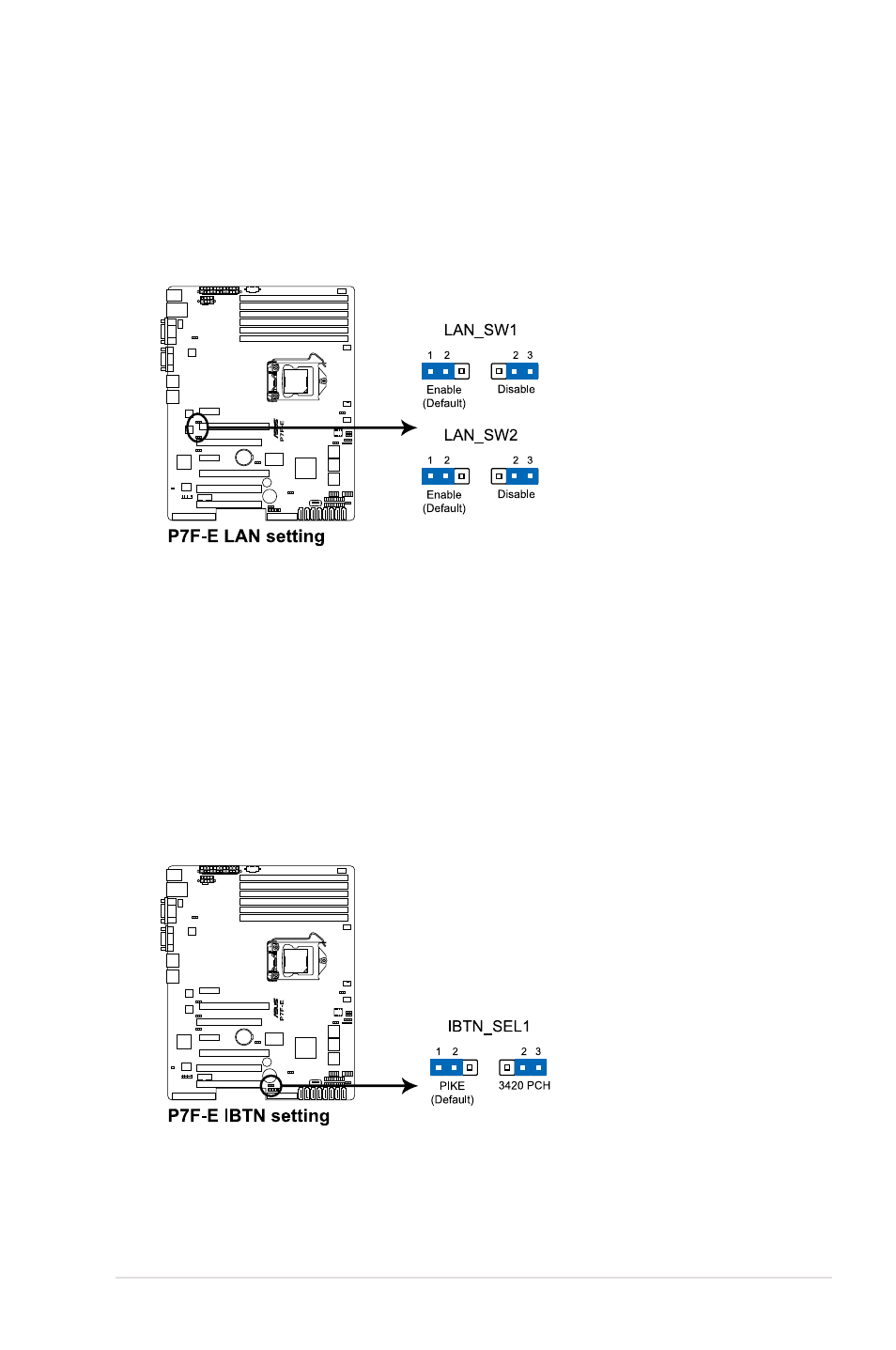

4. LAN controller setting (3-pin LAN_SW1, LAN_SW2)
These jumpers allow you to enable or disable the onboard Intel
®
Intel
82574LGigabit LAN controllers. Set to pins 1-2 to activate the Gigabit LAN
feature.
5. iBTN RAID setting (3-pin IBTN_SEL1)
This jumper allows you to select the RAID configuration utility to use when
you create disk arrays. Place the jumper caps on pins 1–2 if you install a
PIKE RAID card to the motherboard and want to use the LSI Logic MPT
Setup Utility (default).
