Chapter 2: Hardware information

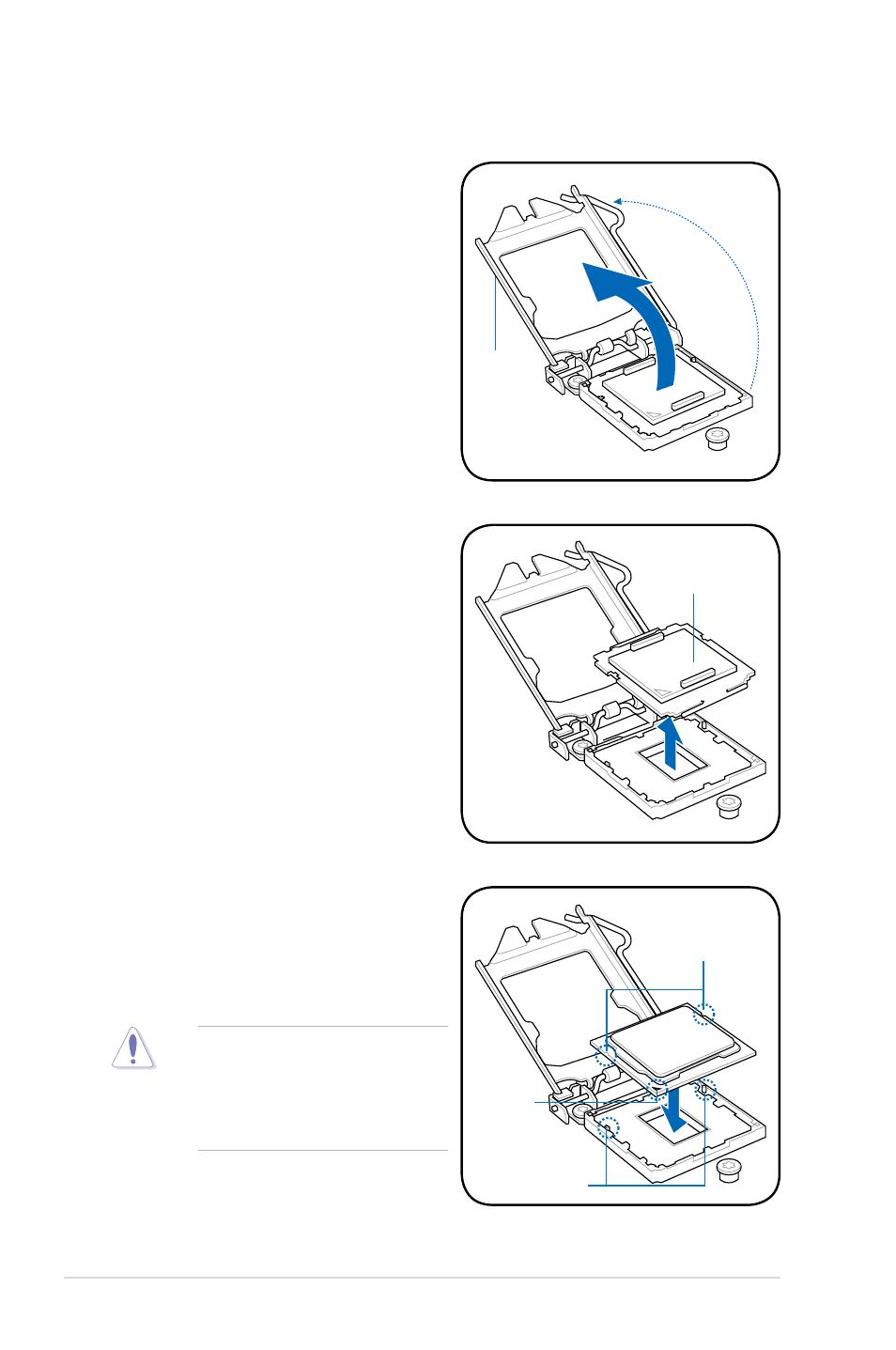

3. Lift the load lever in the direction

of the arrow until the load plate is

completely lifted.

4. Remove the PnP cap from the CPU

socket.

The CPU fits in only one correct

orientation. DO NOT force the

CPU into the socket to prevent

bending the connectors on the

socket and damaging the CPU!

Load plate

PnP cap

Gold

triangle

mark

Alignment keys

CPU notches

5. Position the CPU over the socket,

ensuring that the gold triangle is on

the bottom-left corner of the socket,

and then fit the socket alignment

keys into the CPU notches.
