OSRAM DALI CON 1…10 LI - Manual

Page 4/4 Operating instructions: DALI CON 1 – 10V LI Operating instructions: DALI CON 1 – 10V LI Page 1/4

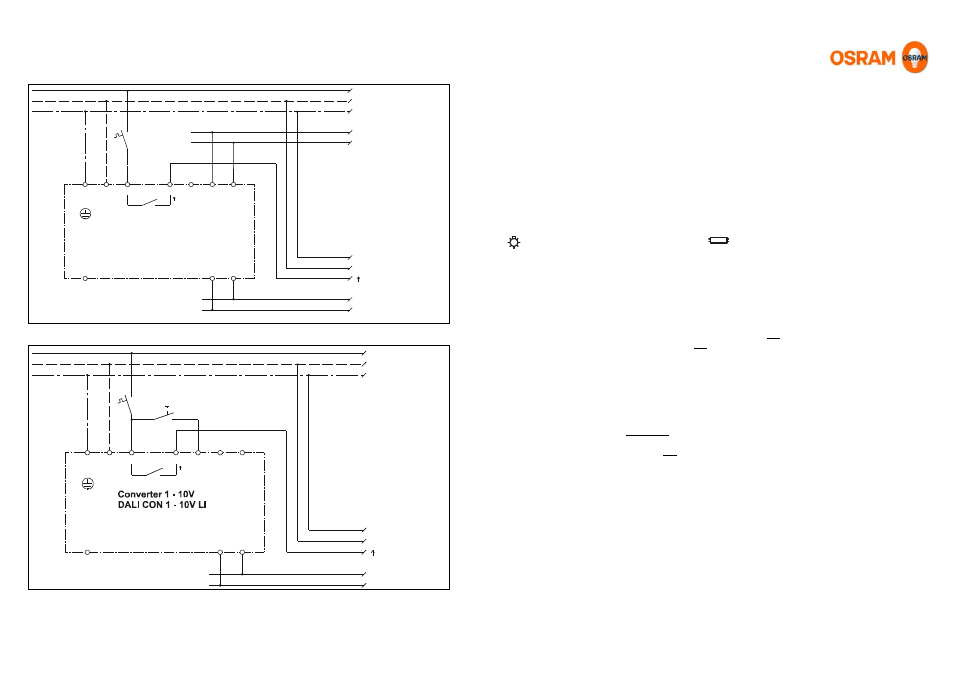

Wiring diagram: DALI CON 1 – 10V LI in DALI mode (operation as converter)
1 2 3 4 5 6 7
10 9 8
PE N L T DA DA
NC + -
1...10V
0...10V
DA
DA
L
N
PE
F1
10A
max
PE
N
-
+
DALI
1...10V/0...10V Geräte:
EVGs, Dimmer,
elektr. Trafos usw.
Kontaktbelastbarkeit
beachten !
weitere DALI-Geräte
1...10V/0...10V
Converter 1 - 10V
DALI CON 1 - 10V LI
Wiring diagram: DALI CON 1 – 10V LI in 1-button mode
(Converter as light control unit)
1 2 3 4 5 6 7
10 9 8
PE N L T DA DA
NC + -
1...10V
0...10V
L
N
PE
F1
10A
max
PE
N
-
+
1...10V/0...10V
S1
1-10V/0-10V - units:
ECGs,. dimmers,
electronic trans-
formers, etc.
Check contact rating!
Subject to change without notice. Errors and omission excepted 02.03.2011 V1.2.
Operating instructions DALI CON 1 – 10V LI Converter from DALI to 1-10V
Applications and functions
DALI converter CON 1 – 10V LI is a multifunctional unit. On the one hand it is a converter (see DALI
mode) which is accessed digitally via the DALI interface in the same way as a DALI ECG, and on the
other hand it is a lighting controller in its own right (see 1-button mode). With its control output (combined
interface 1-10V/0-10V) and load contact, ECG and electronic transformers can be dimmed and switched
via 1-10V and dimmers via 0-10V.
The characteristic for the control voltage at the output can be set to logarithmic 1-10V (for ECG and electronic
transformers) or to linear 0-10V (for power dimmers) depending on the application. CON 1 – 10V LI is enclosed
in a metal casing for installation in luminaires. A unit with the identical function is also available in an insulated
casing in snap-on design for standard distributor installation (DALI CON 1 – 10V SO).
It is therefore possible to connect DALI with existing 1-10V/0-10V systems, combine the two systems or even set
up separate lighting control systems.
corresponds to: linear characteristic 0-10V corresponds to: logarithmic characteristic 1-10V
DALI mode (operation as converter)
The converter communicates via the DALI interface with the controller (e.g. OSRAM Room Controller DALI RC
BASIC SO). It receives DALI commands from there and also the interface supply voltage. DALI signals are
converted to 1-10V/0-10V signals, including on/off switching via the load contact. The DALI lines (DA/DA) are
connected to the controller for this purpose. The converter is accessed and addressed by the controller in the
same way as a DALI ECG. All the 1-10V/0-10V units connected to the converter are considered as a uniform
group under the address assigned to the converter. Detection of lamp faults and "physical selection"
(deactivation and reactivation of the lamps during system startup) are not supported in the 1-10V/0-10V system.
!In DALI mode, the additional switch input (T) may not be connected!
Behaviour on return of mains voltage in DALI mode (ex factory setting):
Without the controller the load contact is closed and output voltage goes to 10 V (100%). If a controller is
connected, the behaviour is determined by the controller (see controller description).
1-button mode (operation as controller)
In this mode the converter operates as an independent lighting controller with a 1-button switching/dimming
function independently of DALI. It is operated by a switch (make contact/230Vac) which switches from input T to
phase L. To access this mode a long press is needed (enabling the 1-button mode). The converter remains in
this mode until it is reset to DALI mode on receipt of a DALI command via the DALI interface.
!In 1-button mode, the DALI interface may not be connected!
Mode I:
Short press: Switch On/Off, long press: Switch On-brighter/brighter/darker.
The switch on light level is equal to the last level before switch off (automatic memory function).
Mode II:
Short press: Switch On/Off, long press: Switch On-brighter/brighter/darker.
The switch on light level is stored by a double click (= 2 x short press) in switched on state. The storage is
signalised by flashing of the lighting.
Change to mode I: Switch off the light by a short press and make a double click to the push button afterwards.
The converter switches on with 100% light and is now in mode I.
Change to mode II: Make a double click when the light is switched on. The light flashes and the current light
level is stored as switch on level. The converter changes to mode II respectively stays in mode II.
Behaviour on return of mains voltage in 1-button mode:
Switching state and dimming level are restored automatically.
Other DALI units
1-10V/0-10V units
ECGs, dimmers,
electr. Trans-
formers, etc.
Check contact rating!
