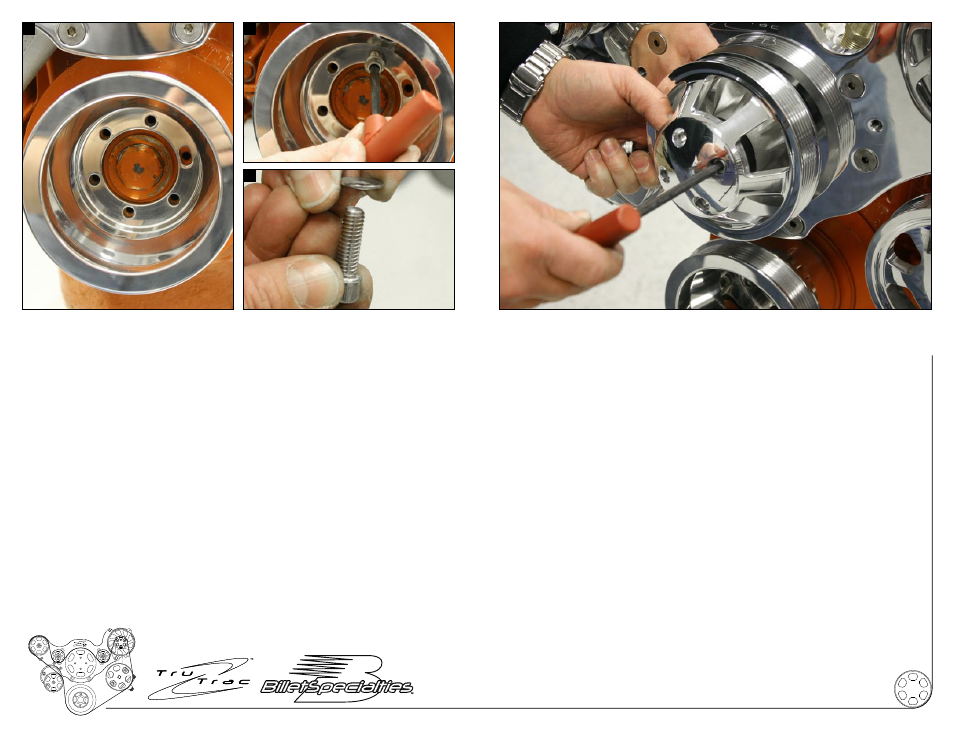

Figure 11: Install Crankshaft Pulley
Apply Loc-Tite to the threads of the six 5/16-18 x 1” socket head
cap screws.
A] Place crankshaft pulley on damper and align holes.
B&C] Thread the 5/16” cap screws with a Belleville washer
(cup side towards pulley) through the pulley and into the crankshaft,
tighten firmly 26ft/lbs.
Figure 12: Install Water Pump Pulley
Apply Loc-Tite to the threads of the four 5/16-18 x 3/4” socket head cap
screws.
Place water pump pulley on water pump and align holes.
Thread the 5/16” cap screws through the pulley and into the water pump
flange, tighten firmly 26 ft/lbs.
A B
C
