FOR kITS WITHOUT POWER STEERING – SkIP TO STEP B

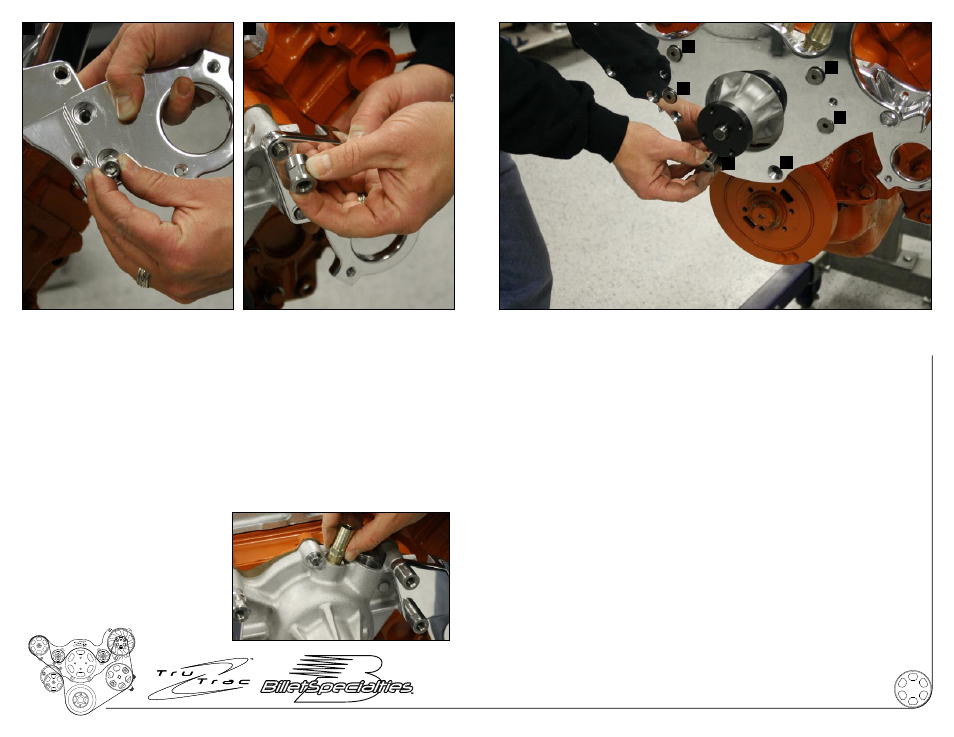

Figure 5: Install Alternator & Power Steering Bracket
A] Apply anti-seize to the two 3/8-16 x 3/4” socket head cap screws.
Assemble power steering bracket to the back of the alternator bracket
and tighten firmly.
B] Place alternator bracket on driver side water pump and secure with
two 7/8” spacer nuts.
Tighten all water pump spacer nuts at this time firmly in a cross pattern,
make sure bracket fasteners are also tightened firmly.
Now is a good time to install the
barbed fittings in the water pump.
Figure 6: Install Bridge Bracket
Apply anti-seize to the six 3/8-16 x 1" flat head cap screws.
Place bridge bracket to motor and align mount holes with the six water
pump spacer nuts.
Thread the 3/8” flat head screws through the bridge bracket and into the
water pump spacer nuts, finger tighten only.
