Required Tools & Materials
Anti-seize Compound
RTV Silicone
Permatex Hylomar®
(Gasket Dressing)
Gasket Scraper
Scotch-Brite® Pad
3/8-16 Thread Chaser* & Holder
*Thread chasers are available at your local
parts store and are different from a thread
cutting tap.
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING ANY
COMPONENTS OF THE TRU TRAC SERPENTINE SYSTEM
5/32” Allen
7/32" Allen
1/4" Allen
5/16" Allen 5/8” Box End Wrench
11/16” Box End Wrench
3/4” Box End Wrench
Socket Wrench & Extension
3/8" 12-point socket
10mm 12-point socket
12mm 12-point Socket
Tech Line: 708.588.0505
Fax: 708.588.7181
www.billetspecialties.com
TECH TIP:
Billet Specialties recommends the use of Anti-Seize on all
fasteners to prevent thread lock-up.

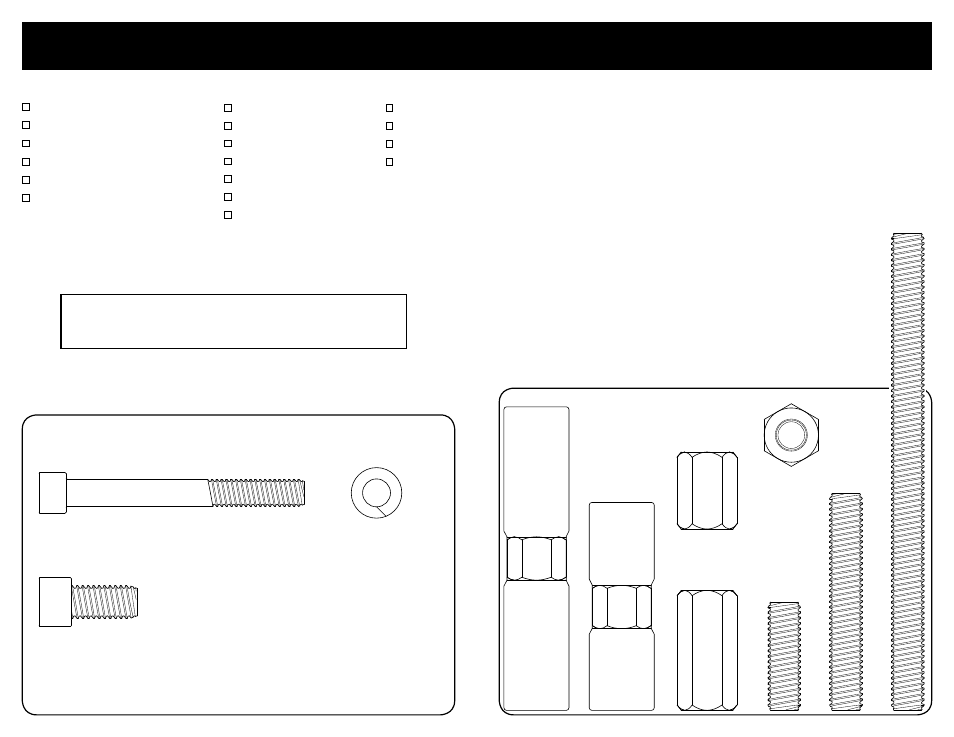

5/16-18 x 2-3/4" Socket Head Cap Screw
Power Steering Pump To Bracket
x2
3/8-16 x 3/4" Socket Head Cap Screw
Power Steering Bracket To Alternator Bracket
x2
5/16" Lock Washer
x2
Skin Board #1 - Packaged With Power Steering Pump
Skin Board #2 - Packaged With Water Pump
7/8" Spacer Nut x4
1-11/32" Spacer Nut x2
2-3/8" Spacer Nut x1
3/8-16 Zinc Coated
Hex Nuts
(Discard After Use)
x2
3/8-16 x 2-1/2" Block Mounting Stud x2 3/8-16 x 5-1/2" Block Mounting Stud x4
Prepping The Block
Disconnect battery and remove all existing accessory drive brackets &
components from motor.
Remove water pump and mechanical fuel pump, scrape away any
existing gasket material with a gasket scraper and dress surface with a
Scotch Brite® pad.
Remove the timing bolt on the passenger side of the motor just below the
fuel pump.
Note: If you wish to replace the timing cover gaskets and seals now is the time to do so.
Fel-Pro makes a timing cover gasket set P/N TCS 6563-1 that covers all of them.
THIS kIT IS NOT DESIGNED FOR USE WITH A
MECHANICAL FUEL PUMP
3/8-16 x 1-1/4" Block Mounting Stud x1
3-1/2" Spacer Nut x1
