PROFILE COLLECTION
DOOR HANDLES / WINDOW & VENT CRANKS
Tools Needed:
5/64” Allen Wrench • 3/32“ Allen Wrench • 5/32” Allen Wrench
1. Place regulator adaptor on shaft & tighten 10-32 set screws with
a 3/32” Allen wrench. Adapter should be indexed at this time for
handle positioning.
2. Install regulator adapter cover.
3. Index handle at one of the four positions and install the 1/4-20
button head cap screw with cup washer and tighten with a 5/32”
Allen wrench.
4. Place handle cap on handle. Support handle cap & thread two
6-32 x 1/4” flat head screws through back of handle into cap.
TIP: Start with your finger & finish with a 5/64” Allen key.
DO NOT OVERTIGHTEN!

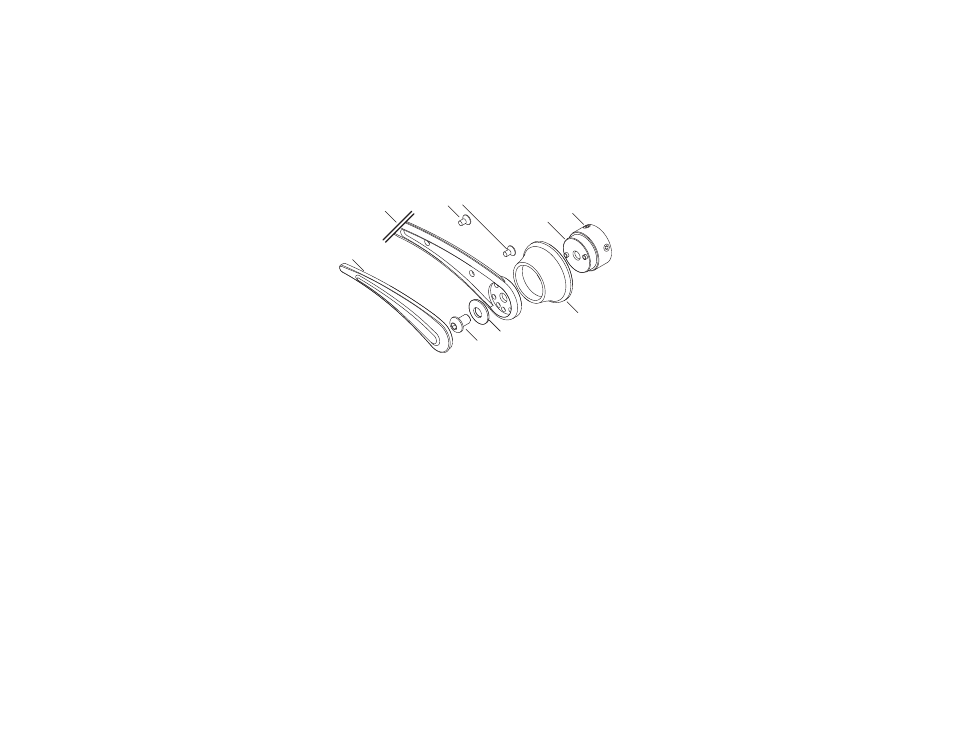

Handle Cap
1/4-20 Button Head
Cup Washer
Handle
6-32 x 1/4”
Flat Head Screw
Regulator
Adapter Cover
Regulator
Adapter
10-32
Set Screw
