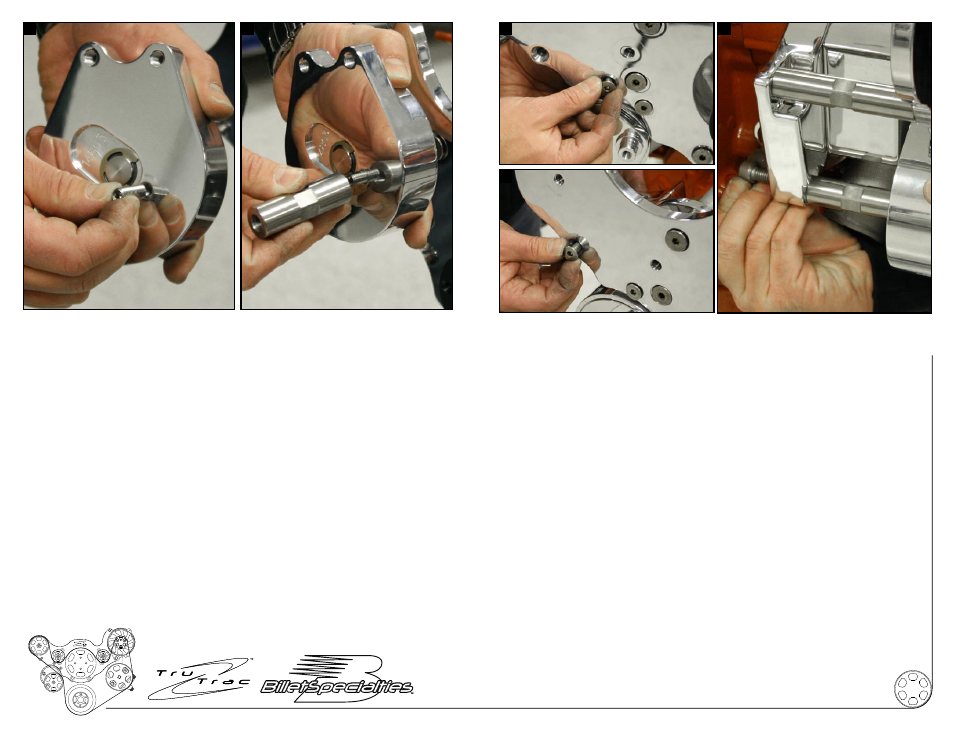

Figure 7: Install Tensioner
A] Apply Loc-Tite to one end of the 5/16-18 x 1” socket set screw and
thread into the back of the tensioner body, finger tighten.
B] Apply anti-seize to the remaining exposed threads of the setscrew.
Thread the 2-3/8” long spacer nut onto the stud and tighten firmly.
A B C
D
E
Figure 8: Install Tensioner Continued
Apply anti-seize to the threads of the three 5/16-18 x 3/4” flat head cap
screws and the 3/8-16 x 1” socket head cap screw.
C&D] Place tensioner assembly between the tensioner bracket and the
bridge bracket. Thread two 5/16” flathead cap screws through the bridge
bracket and into the tensioner body, finger tighten. Thread the third
5/16-18 x 3/4” flat head cap screw through the bridge bracket and into
the 3-1/2” spacer nut, finger tighten.
E] Thread the 3/8” socket head cap screw through the back of the
tensioner bracket and into the tensioner spacer nut, tighten firmly.
