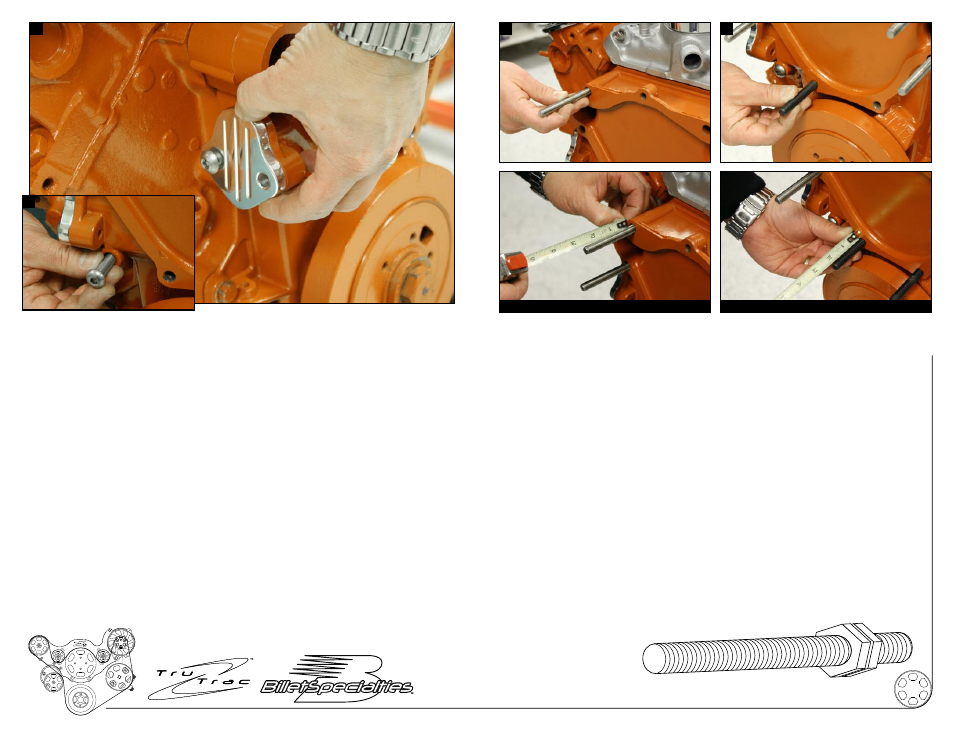

Figure 1: Install Fuel Pump Block-Off
A] Sparingly apply RTV silicone to the timing cover surface and gasket.
Attach the fuel pump block off with the two 3/8-16 x 3/4” button head
cap screws and tighten firmly.
B] Thread the 3/8-16 x 2-3/4” button head cap screw into the timing cover
by the fuel pump block off and tighten firmly.
Figure 2: Install Block Mounting Studs
Apply RTV silicone to one end of the four 3/8-16 x 5-1/2” threaded studs
and the two 3/8-16 x 2-1/2” threaded studs.
A] Thread the silicone side of the 5-1/2” studs into the upper four holes in
the timing cover.
Important! Leave 2-7/16” of thread exposed from the timing cover face.
B] Thread the silicone side of the two 2-1/2” studs into the bottom two
holes of the timing cover.
Important! Leave 2” of thread exposed.
Double-check your lengths.
The studs can easily be tightened by threading two 3/16” zinc coated
nuts (supplied) onto the stud and tighten them against each other to act
as a drive nut (discard after use).
*Example
A
B
2-7/16" From Timing Cover 2" From Timing Cover
A B
