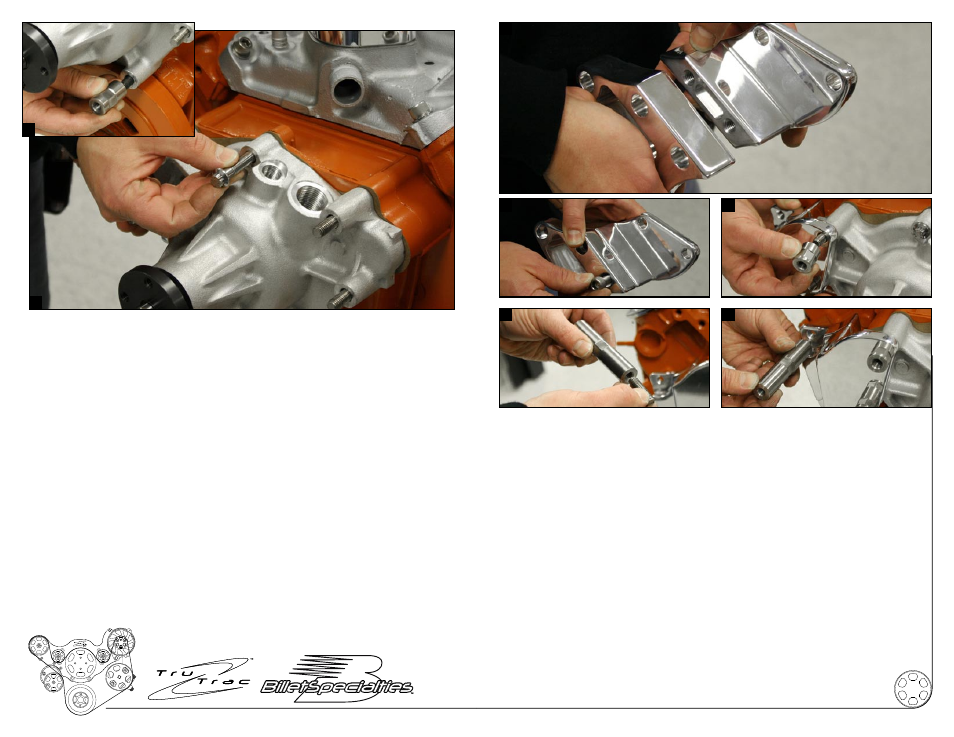

Figure 3: Install Water Pump

Coat both sides of water pump gasket with Permatex Hylomar gasket
dressing. Install gasket over studs.

A] Slide the water pump over the studs and into position. Apply anti-seize
to the threads of the 3/8-16 x 1-1/2” 12-point ARP cap screw and thread
into top water pump hole, finger tighten.

Apply anti-seize to the exposed threads on the remaining studs.

B] Finish by threading the two 1-11/32” spacer nuts to the bottom two
studs and finger tighten.

Figure 4: Install Tensioner Bracket

Apply anti-seize to the two 3/8-16 x 1-1/4” socket head cap screws.

A&B] Assemble front and rear tensioner bracket halves together with the
two 3/8” cap screws and tighten firmly.

C] Place completed bracket on passenger-side of water pump and se-
cure with two 7/8” spacer nuts and finger tighten.

D] Apply Loc-Tite to one end of the 3/8-16 x 1-1/4” threaded stud and
thread it into the 3-1/2” long spacer nut until it bottoms out.

E] Apply anti-seize to the remaining exposed threads and install the
3-1/2” spacer nut into the tensioner bracket using the top open hole.
Tighten firmly.
