Billet Specialties Bracket – Power Steering SBC w__V-Groove Pulley User Manual
Billet Specialties For the car

For use with:
• Chevy small block
• Long water pump
• GM type 2 remote pump (86-93 S-10 4cyl.)
1. Use Loctite® removable threadlocker 242 (blue) on all fasteners.

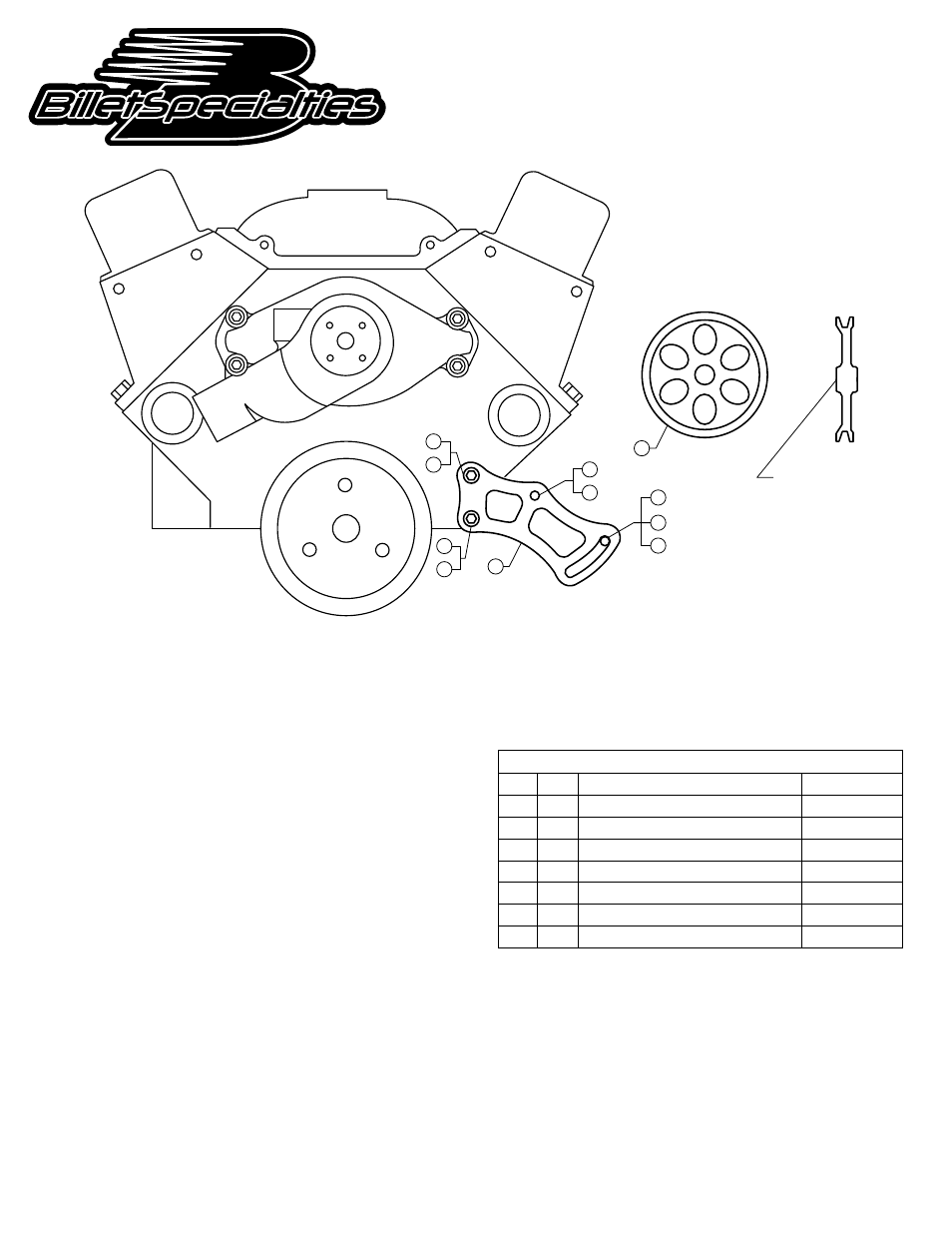

2. Bolt power steering bracket [B] to threaded bosses on drivers
side of block using 3/8-16 x 1-1/4” SHCS [D] and 3/8” flat washers
[E] as shown in illustration.
3. Press pulley onto GM remote type 2 pump using proper
installation tool. Pump application is 86-93 S-10 4-cylinder.
Aftermarket pumps are available with -6 and -10 AN fittings
installed.
4. *Install pump onto bracket [B] using 5-16-24 x 3” SHCS [F] and
5/16” locker washers [G]. Use 5/16-24 slide adjuster [C] on
adjustment side of bracket. Do not fully tighten.
Pump can be mounted with the fittings to the outside or the
inside for extra clearance if needed.
5. Install power steering belt on the inside groove of the crank
pulley.
6. Apply tension on the power steering belt and tighten bolts [F]
5/16-24 x 3” SHCS.
* Hoses can be installed on pump prior to pump being installed for
ease of assembly.
-6 AN hose: From power steering pump to inlet side of steering box or
rack
-10 AN hose: From power steering pump to remote reservoir
#12220 Power Steering Bracket
Mounting Instructions
BILL OF MATERIALS
ITEM QTY.
DESCRIPTION
SIZE
A
1
Power Steering Pulley
B
1
Power Steering Bracket
C
1
5/16”-24 Slide Adjuster
D
2
3/8”-16 Socket Head Cap Screw
1-1/4”
E
2
Flat Washers
3/8”
F
2
5/16”-24 Socket Head Cap Screw
3”
G
2
Lock Washers
5/16”
Billet Specialties • 500 Shawmut Avenue • La Grange, Illinois 60526• Tech 708-588-0505 • Fax 708-588-7181
A
D
E
D
E
B
F
G
C
F
G
Pump Side Of Pulley
