17 ProBee-ZU10 User Guide Rev.1.5
To export the configuration, please follow the steps as below:
 Click the ‘Export’ button at the ‘Configuration Management’ section and the ‘Save As’ dialog pops
up.
 Select the path and enter the file name to store the configuration at.
 Click the ‘Save’ button’ and the configuration is exported to the designated file.
Exported file can be used at other devices by importing them. The configuration of remote node can be
exported and imported by checking the ‘Remote Device Setting’ check box.
Users can reset to factory default by clicking the ‘Restore to Factory Default’ at the ‘Configuration
Management’ section.
2.4.3 Firmware Update

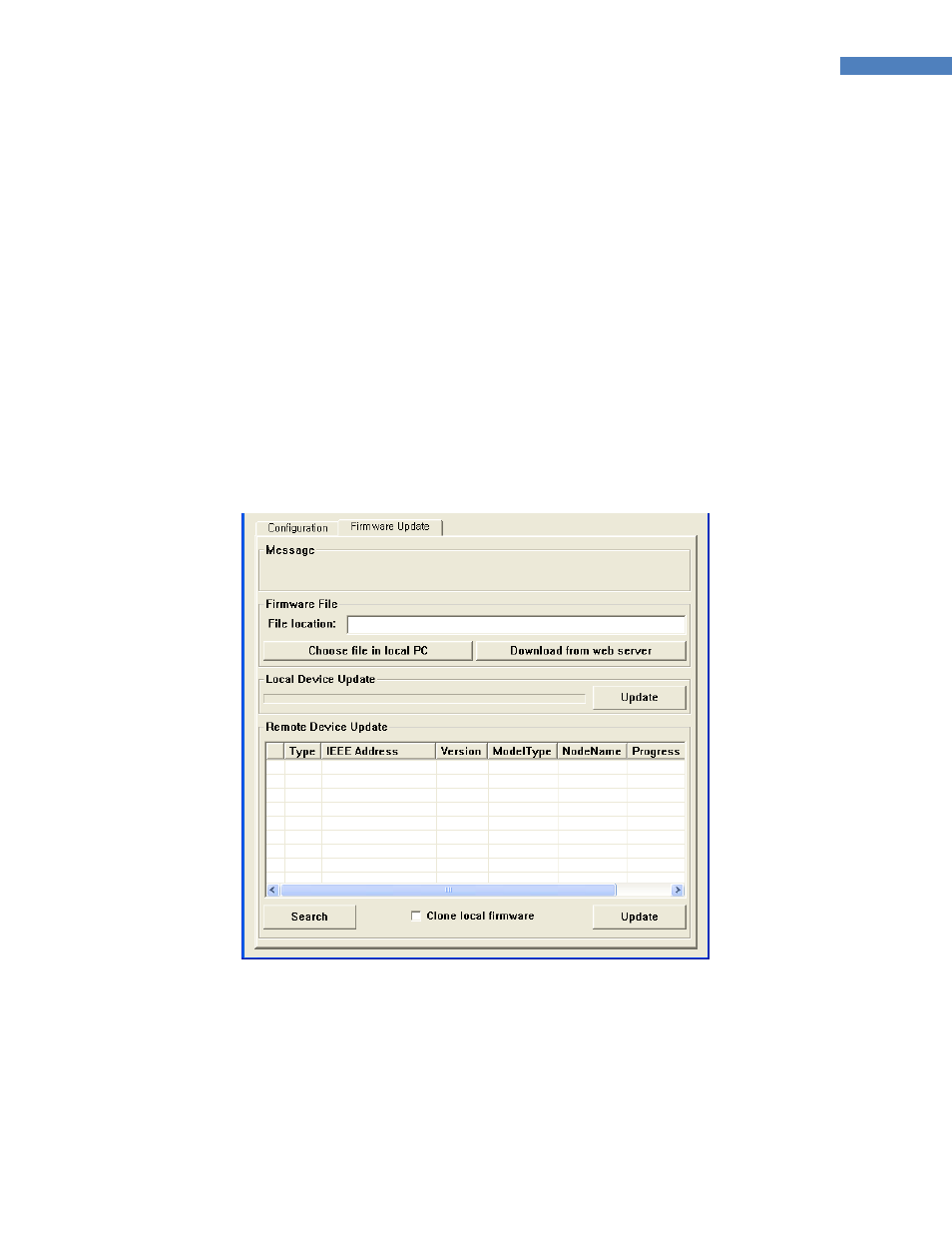

Figure 2-8 ProBee Manager Firmware Update Pane
The Firmware Update Pane appears when the ‘Firmware Update’ tab is selected. The ‘Message’ section
displays informative message about the progress of updating firmware.
