Transient voltage suppression diodes, Sacb xx, Surface mount – 500w > sacb series – Littelfuse SACB Series User Manual
Page 4
Transient Voltage Suppression Diodes
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/20/14
Surface Mount – 500W > SACB series

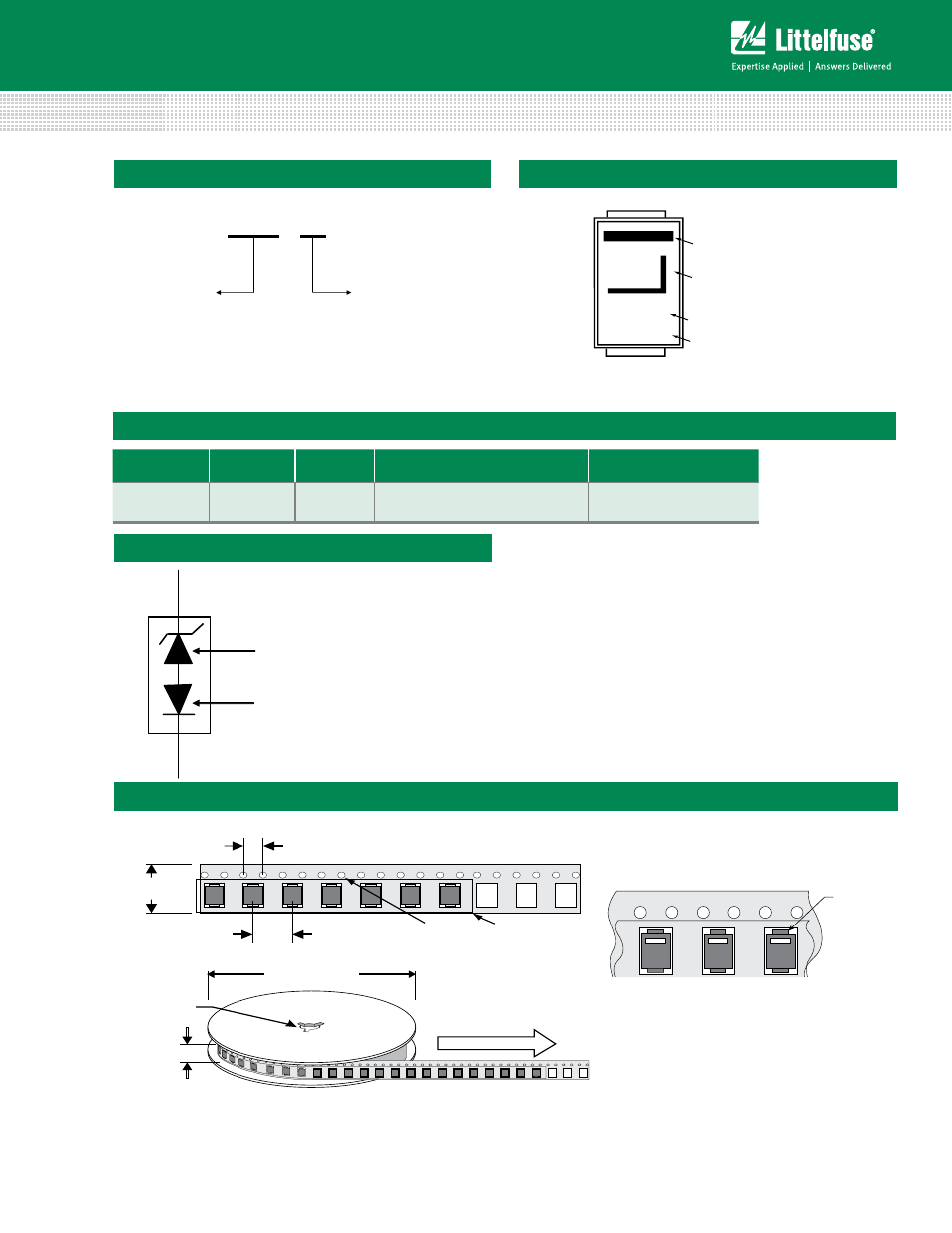

Part Numbering System
SACB XX
Series Type
Stand Off Voltage
Part Marking System
F
XX
YMXXX
Marking Code
Trace Code Marking
Y:Year Code
M: Month Code
XXX: Lot Code
Littelfuse Logo
Cathode Band
(for uni-directional products only)
Packaging
Part number
Component
Package
Quantity
Packaging
Option
Packaging Specification
SACBXX
DO-214AA
3000
Tape & Reel - 12mm tape/13” reel
EIA STD RS-481
Transient
Voltage
Suppressor
Diode
Schematic
Tape and Reel Specification
0.47
(12.0)
0.315
(8.0)
0.157
(4.0)
0.49
(12.5)
0.80 (20.2)
Arbor Hole Dia.
13.0 (330)
Dimensions are in inches
(and millimeters).
Direction of Feed
0.059 DIA
(1.5)
Cover tape
Cathode
