© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/24/13
TVS Diode Arrays
(SPA ® Diodes)
General Purpose ESD Protection - SP05 Series

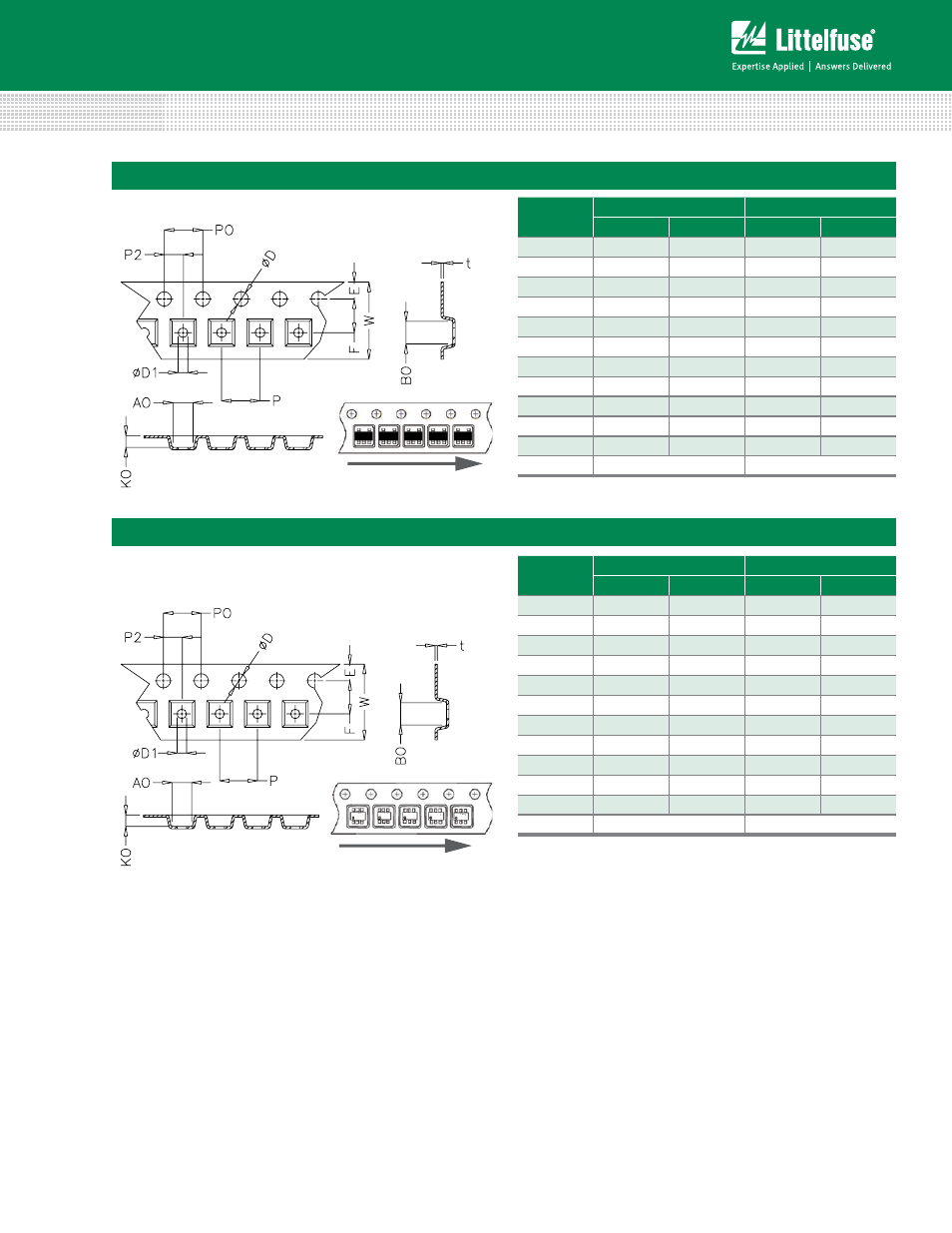

Embossed Carrier Tape & Reel Specification — SC70-5
Symbol
Millimetres Inches
Min Max Min Max
E 1.65 1.85 0.064 0.073
F 3.45 3.55 0.135 0.139
P2 1.95 2.05 0.077 0.081
D 1.40 1.60 0.055 0.063
D1 1.00 1.25 0.039 0.049
P0 3.90 4.10 0.154 0.161
W 7.70 8.10 0.303 0.318
P 3.90 4.10 0.153 0.161
A0 2.14 2.34 0.084 0.092
B0 2.24 2.44 0.088 0.096
K0 1.12 1.32 0.044 0.052
t 0.27 Max 0.010 Max
User Feeding Direction
Embossed Carrier Tape & Reel Specification — SC70--6
Symbol
Millimetres Inches
Min Max Min Max
E 1.65 1.85 0.064 0.073
F 3.45 3.55 0.135 0.139
P2 1.95 2.05 0.077 0.081
D 1.40 1.60 0.055 0.063
D1 1.00 1.25 0.039 0.049
P0 3.90 4.10 0.154 0.161
W 7.70 8.10 0.303 0.318
P 3.90 4.10 0.153 0.161
A0 2.14 2.34 0.084 0.092
B0 2.24 2.44 0.088 0.096
K0 1.12 1.32 0.044 0.052
t 0.27 Max 0.010 Max
User Feeding Direction
