TVS Diode Arrays
(SPA ® Diodes)
General Purpose ESD Protection - SP05 Series

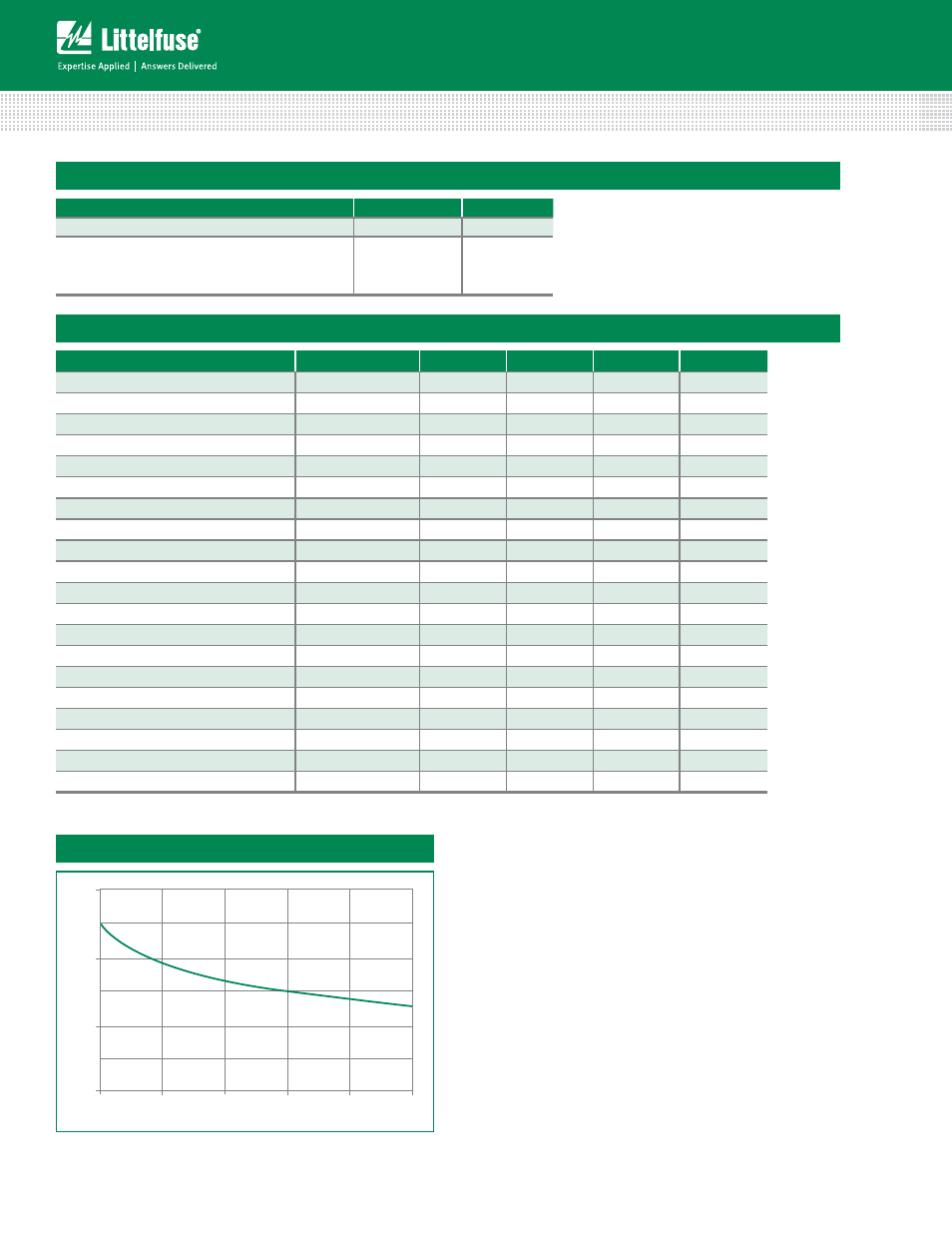

Typical Diode Capacitance vs. Reverse Voltage
Diode Capacitance (pF)
Diode Reverse Voltage (V)
0 1 2 3 4 5
0
20
40
60
Absolute Maximum Ratings
Parameter Rating Units
Storage Temperature Range –40 to 125 ºC
Package Power Dissipation
SC70
SOT23-3, SOT23-5, SOT23-6, SOT143
MSOP
0.2
0.225
0.5
W
W
W
Electrical Characteristics T
A
= +25ºC, Unless Otherwise Specified
Parameter Test Conditions Min Typ Max Units
Reverse Standoff Voltage I
R
≤ 1μA - - 5.5 V
Reverse Standoff Leakage Current V = 5.0V 1 100 nA
Signal Clamp Voltage
Positive I = 1mA 7.0 7.8 8.5 V
Negative I = 10mA -1.2 -0.8 -0.4 V
Clamp Voltage during ESD
MIL-STD-883 Method 3015 (HBM) test
+ 8kV
12 V
- 8kV -8 V
ESD Test Level (1)
IEC-61000-4-2, Contact discharge 30 kV
MIL-STD-883 Method 3015 (HBM) 30 kV
Capacitance 2.5V @ 1MHz 30 pF
Turn on/off Time <1 ns
Temperature Range
Operating -40 85 ºC
Storage -65 150 ºC
Diode Dynamic Resistance
Forward Conduction 1.0 Ω
Reverse Conduction 1.4 Ω
Note:
(1) ESD voltage applied between channel pins and ground, one pin at a time; all other channel pins are open; all ground pins are grounded.
