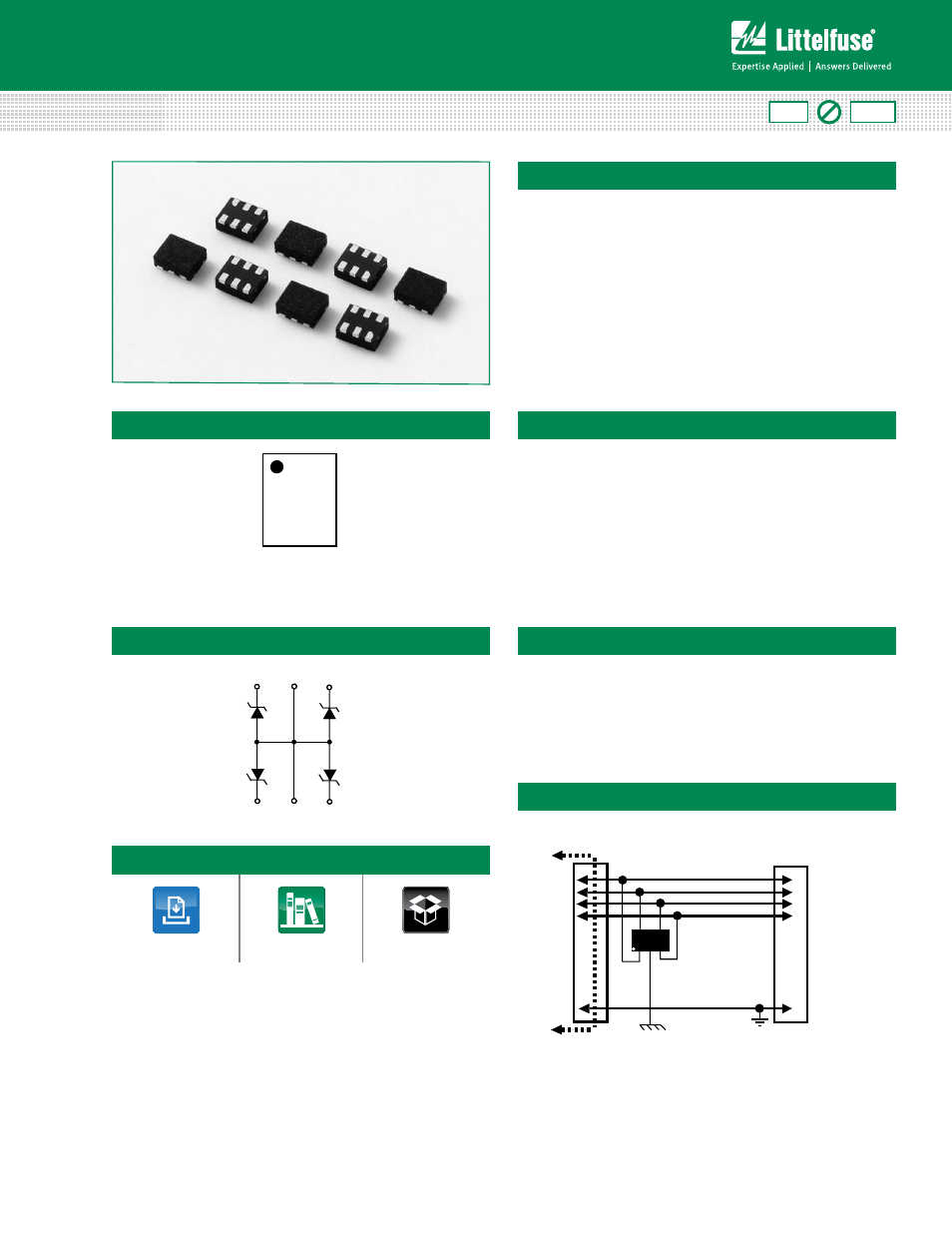

TVS Diode Arrays
(SPA ® Diodes)
General Purpose ESD Protection - SP1011 Series
Description
Applications
Zener diodes fabricated in a proprietary silicon avalanche
technology protect each I/O pin to provide a high level of
protection for electronic equipment that may experience
destructive electrostatic discharges (ESD). These robust
diodes can safely absorb repetitive ESD strikes above
the maximum level specified in the IEC 61000-4-2
international standard (Level 4, ±8kV contact discharge)
without performance degradation. Their very low loading
capacitance also makes them ideal for protection high-
speed signal pins.
Features
• ESD, IEC61000-4-2,
±15kV contact, ±30kV air
• Lightning, IEC61000-4-5,
2A (t
p
=8/20µs)
• Low capacitance of 7 pF
(TYP) per I/O @ 2.5V
• Low leakage current of
1µA (MAX) at 5V
• Tiny μDFN( JEDEC MO-
229) package (1.25mm x
1.0mm x 0.5mm)
• EFT protection
IEC61000-4-4, 40A
(5/50ns)
• LCD/PDP TV
• DVD Player
• Desktop
• Set Top Box • Mobile Phone
• Notebook
• MP3/PMP
• Digital camera
Pinout
I/O (1)
GND GND
I/O (4)
I/O (2) I/O (3)
µDFN-6
(1.25x1.0x0.5mm)
Functional Block Diagram
6 5 4
1 2 3
Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.
RoHS Pb GREEN
Application Example
Shield
Ground
SP1011-04UTG
Outside
W
orld
Input
Keyboard
Controller
D1
D2
D3
D4
Signal
Ground
SP1011 Series 7pF 15kV Unidirectional TVS Array
