TVS Diode Arrays
(SPA ® Diodes)
General Purpose ESD Protection - SP1006 Series
TVS Diode Arrays
(SPA ® Diodes)
General Purpose ESD Protection – SP1006 Series

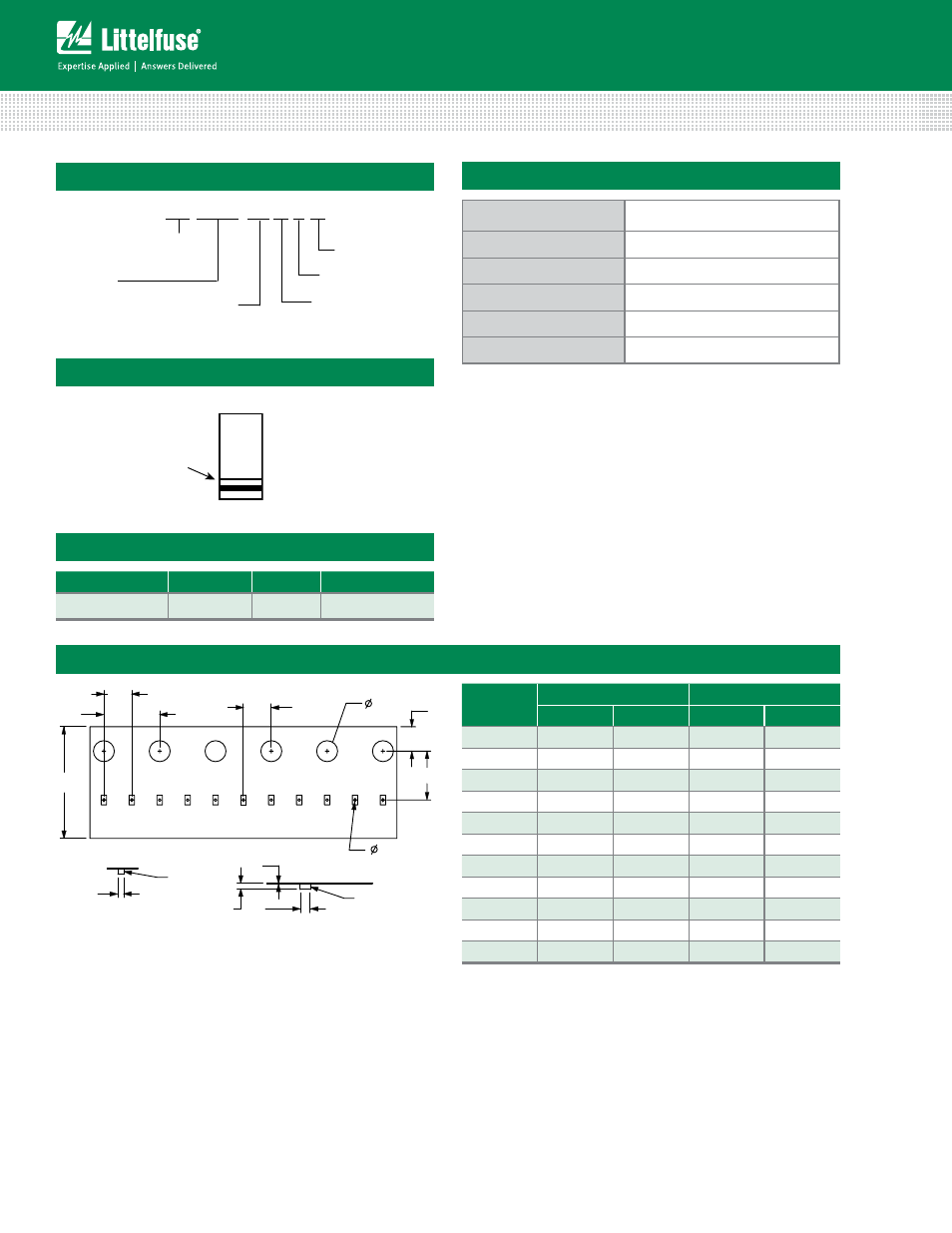

Embossed Carrier Tape & Reel Specification — μDFN-2
Symbol
Millimetres Inches
Min Max Min Max
A0 0.36 0.42 0.014 0.017
B0 0.66 0.72 0.026 0.028
D0 1.40 1.60 0.055 0.063
E 1.65 1.85 0.065 0.073
F 3.45 3.55 0.136 0.140
K0 0.39 0.45 0.015 0.018
P0 1.95 2.05 0.077 0.081
P1 1.95 2.05 0.077 0.081
P2 3.90 4.10 0.154 0.161
T 0.18 0.22 0.007 0.009
W 7.90 8.30 0.311 0.327
0º MAX
0º MAX
K0
B0
T
A0
W
P0
P2 P1
D0
E
F
0.20 ± 0.05
Ordering Information
Part Number Package Marking Min. Order Qty.
SP1006-01UTG μDFN-2
II
10000
Product Characteristics
Lead Plating Pre-Plated Frame
Lead Material Copper Alloy
Lead Coplanarity 0.0004 inches (0.102mm)
Substitute Material Silicon
Body Material Molded Epoxy
Flammability UL 94 V-0
Notes :
1. All dimensions are in millimeters
2. Dimensions include solder plating.
3. Dimensions are exclusive of mold flash & metal burr.
4. Blo is facing up for mold and facing down for trim/form, i.e. reverse trim/form.
5. Package surface matte finish VDI 11-13.
Part Numbering System
Part Marking System
U: μDFN-2
SP 1006 01 U T G
Series
Package
T= Tape & Reel
G= Green
Number of Channels
–
TVS Diode Arrays
(SPA ® Diodes)
Pin 1
Pin 2
Stripe
