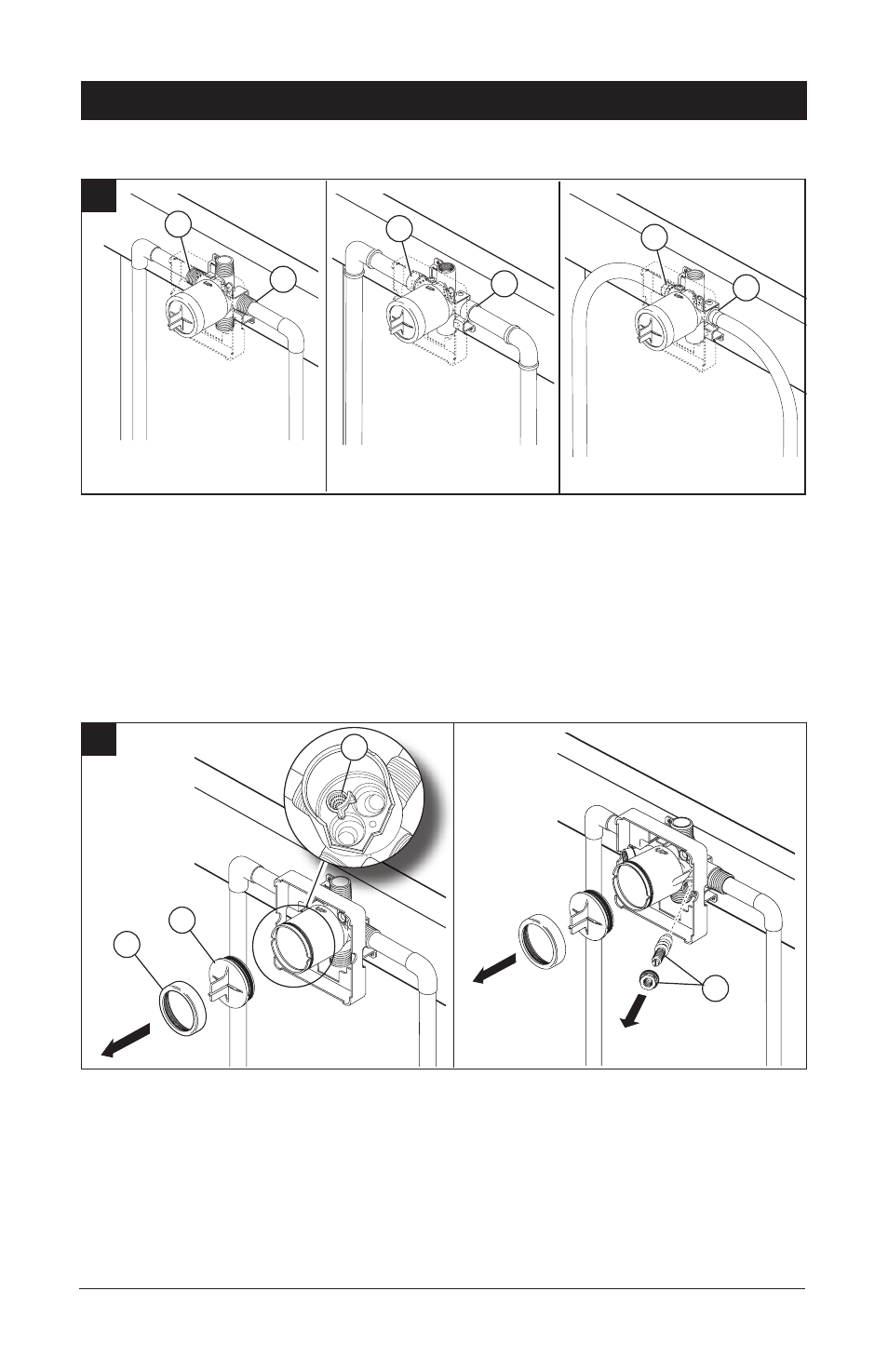

Connect valve body to water supplies using
the proper fittings for your valve body type
(copper tubing, iron pipe or Pex). Note: (1) is
the cold inlet port and (2) is the hot inlet
port. If either of the two outlet ports is to be
unused, seal the port with a pipe plug.
C.
D.
Remove bonnet (1) and test cap (2)
before soldering. Leave screen (3)
installed. Warning: Avoid soldering at
high temperatures. Exposure to high
temperatures may damage screen. Be
sure stops (4) are removed from the w/
stops version before soldering. (Do not
install stops before soldering.)
If you are making a back to back or
reverse installation (hot on right and
cold on left) install the valve body as
described, but the water supply lines will
be reversed. Note: (1) is the hot inlet
port and (2) is the cold inlet port.
Copper Tubing Iron Pipe Pex
1
2
1
2
1
2
1
2
3
4
MultiChoice ® Rough-In Installation
4
