Faucet leaks from tub spout/showerhead:

SHUT OFF WATER SUPPLIES.

Replace seats and springs–Repair

Kit RP4993. Check condition of lower O-rings and

replace if necessary RP14414. See Helpful Hints 1,

2, & 3.
If leak persists:

SHUT OFF WATER SUPPLIES.

Replace cap assembly RP46070 or valve cartridge

RP46074.

See Helpful Hints 1, 2, 3 & 5.
Unable to maintain constant

water temperature:

Replace housing assembly with RP46071 or follow

instructions in Helpful Hints 1, 2, 4 & 5.

Helpful Hints:
1. Before removing valve cartridge assembly for any

maintenance, be sure to note the position of the

rotational limit stop on the cap. The valve cartridge

assembly must always be put back in the same

position. BE SAFE! After you have finished the

installation, turn on valve to make sure COLD

WATER FLOWS FIRST.

2. To remove valve cartridge from body, shut off

water supplies and remove handle and bonnet

nut. Do not pry the valve cartridge out of the body

with a screwdriver. Place handle on stem and rotate

counterclockwise approximately 1/4 turn after the

stop has been contacted. Lift valve cartridge out

of body.

3. To remove seats and springs, remove valve

cartridge. Separate cap assembly from the

housing assembly by rotating the cap assembly

counterclockwise 90

o

(degrees). Separate cap

and housing assemblies. Remove seats and

springs and replace. Place the largest diameter

of the spring into the seat pocket first and then

press the tapered end of the seal over the spring.

Reassemble valve cartridge and replace in body

following instructions given in 1 above.

4. If the water in your area has lime, rust, sand

or other contaminants in it, your pressure

balance valve will require periodic inspection.

The frequency of the inspection will depend

on the amount of contaminants in the water. To

inspect valve cartridge remove it and follow the

steps in note 1 above. Turn the valve to the full

mix position and shake the cartridge vigorously.

If there is a rattling sound, the unit is functional

and can be reinstalled following instructions given

in note 1 above. If there is no rattle, replace the

housing assembly (RP46071).

5. Push disc until fully seated. See page 8 for

more details.

To order replacement parts, visit

www.deltafaucet.com

13/14 Series Maintenance

10

Cleaning and Care

Care should be given to the cleaning of this prod-

uct. Although its finish is extremely durable, it can

be damaged by harsh abrasives or polish. To clean,

simply wipe gently with a damp cloth and blot dry

with a soft towel.

Warning: Scrubbing Bubbles

®

Bathroom Cleaner

and Lysol

®

Basin Tub and Tile Cleaner must not be

used on the clear knob handles and levers. Use of

these cleaners can result in cracked or severely

damaged handles. If overspray gets onto the

handles, immediately wipe them dry with a soft

cotton cloth

MultiChoice

®

13/14

Grey

Off White

Longer

Lower Housing

Order RP46074 to

Replace Cartridge.

Old

Monitor

®

1300/1400

White

Blue

or

Off White

Shorter Lower Housing

Order RP19804 to

Replace Cartridge.

White

Blue

Shorter Lower Housing

Order RP19804 to

Replace Cartridge.

New

Monitor

®

1300/1400

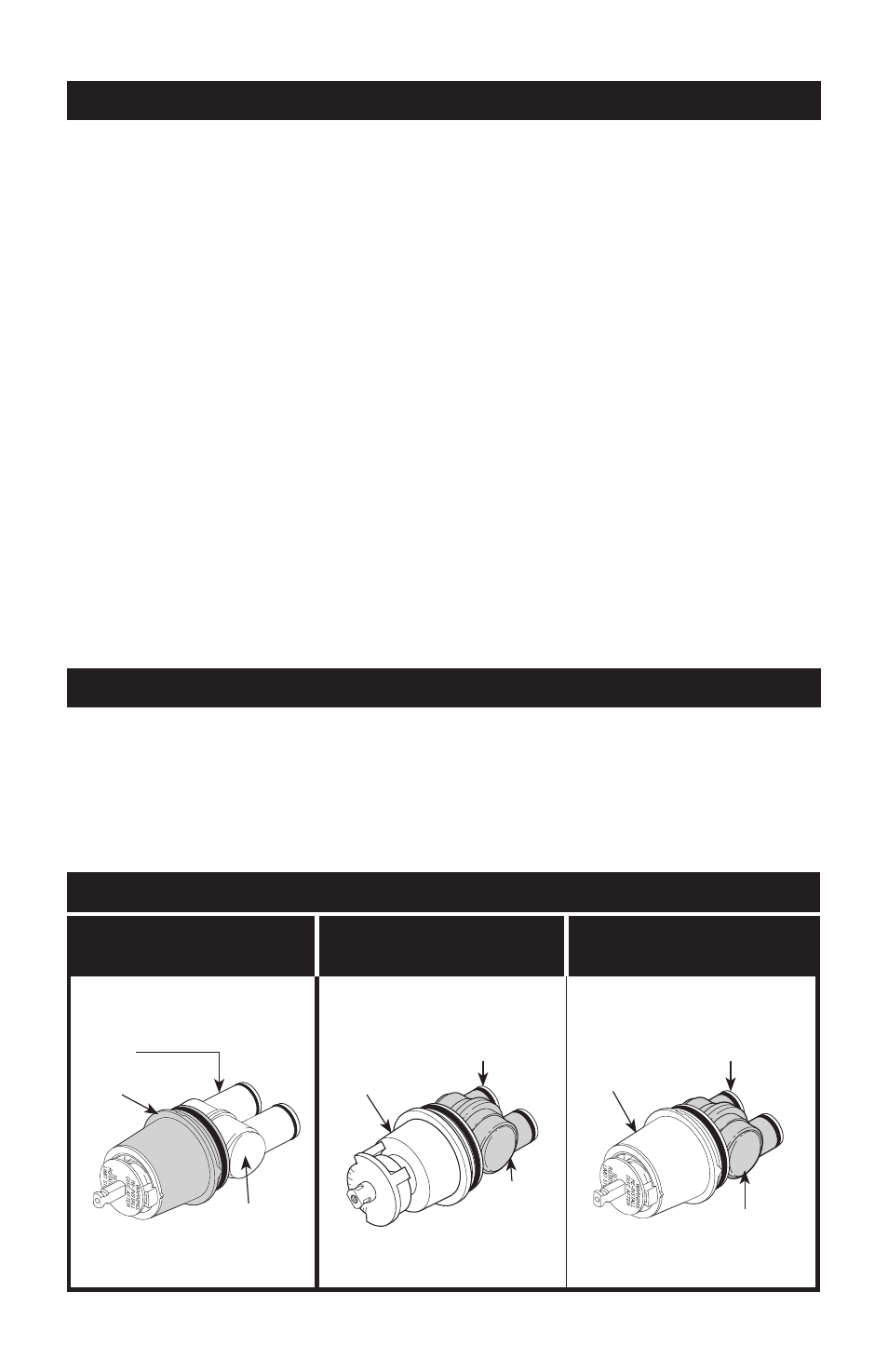

Cartridge Summary Reference

Units shipped in March

2006 and after.

Replacement cartridges

shipped in July 2006

and after.

Units shipped before

March 2006.
