MultiChoice

®

Valve Trim

Installation Instructions

Owners Manual

13/14

Series

Write purchased model number here.

ASME A112.18.1 / CSA B125.1

ASSE 1016

®

®

U P

C

Table of Contents:
Warranty ............................................................................. Page 2
MultiChoice

®

Rough-In Installation Instructions ...................Pages 3 - 5

13/14 Series Installation Instructions .................................. Pages 6 - 9
Maintenance ....................................................................... Page 10
Cartridge Summary References ......................................... Page 10
To order replacement parts, visit www.deltafaucet.com

1

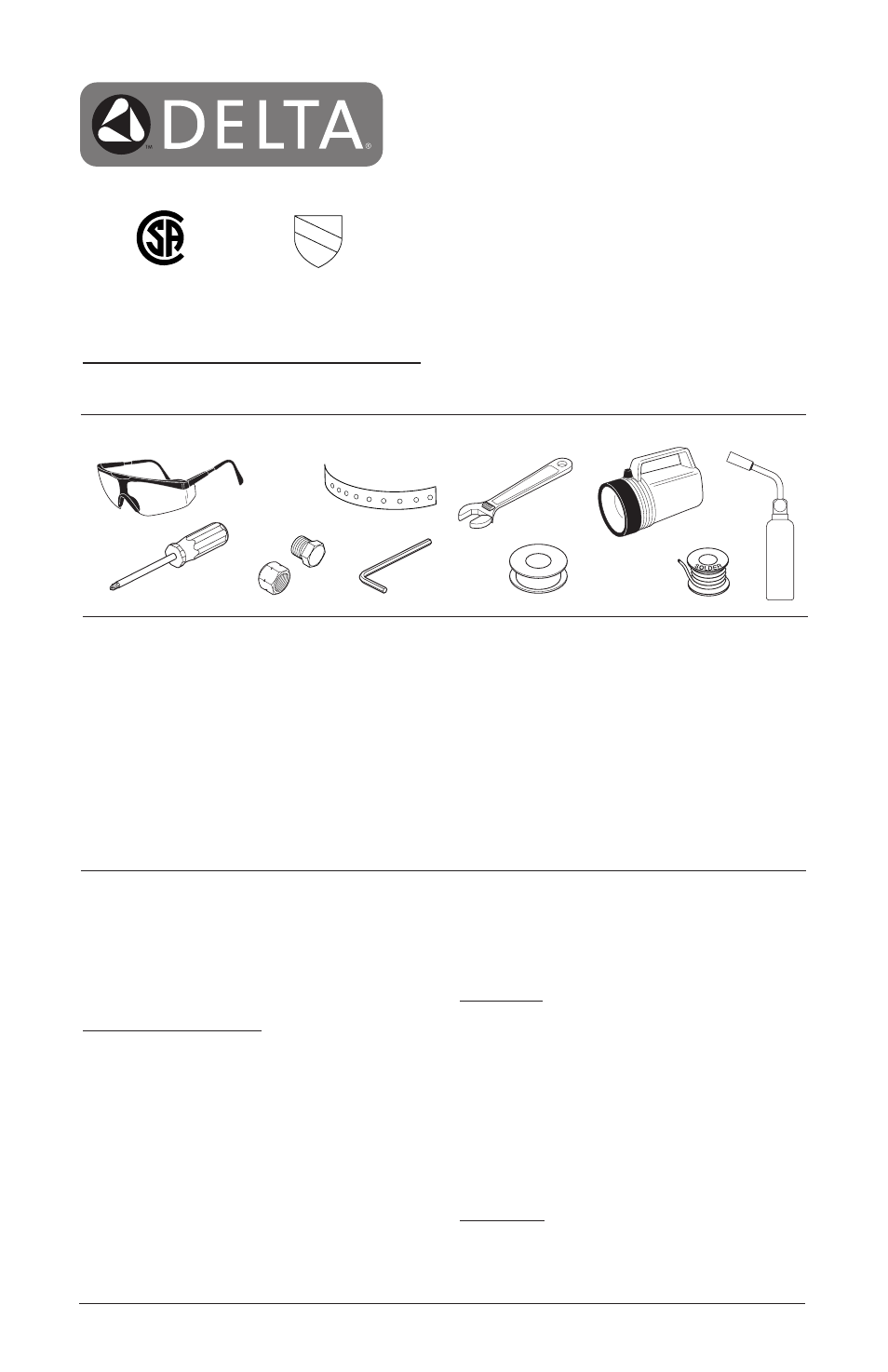

You May Need

TE

FLON

12/8/09

63140 Rev. A

THIS VALVE MEETS OR EXCEEDS THE

FOLLOWING STANDARDS:

ASME A112.18.1/CSA B125.1 and ASSE 1016.

CAUTION: This system/device must be set by the

installer to ensure safe, maximum temperature.

Any change in the setting may raise the discharge

temperature above the limit considered safe and

may lead to hot water burns.

NOTICE TO INSTALLER: CAUTION!–As the

installer of this valve, it is your responsibility

to properly INSTALL and ADJUST this valve

per the instructions given. This valve does

not automatically adjust for inlet temperature

changes, therefore, someone must make the

necessary Rotational Limit Stop or temperature

knob adjustments at the time of installation and

further adjustments may be necessary due to

seasonal water temperature change. YOU MUST

inform the owner/user of this requirement by

following the instructions. If you or the

owner/user are unsure how to properly make

these adjustments,

please refer to page 8, and if

still uncertain, call us at

1-800-345-DELTA.

After installation and adjustment, you must affix

your name, company name and the date you

adjusted the Rotational Limit Stop or temperature

knob to the caution label provided and apply or

attach the label to the back side of the closest

cabinet door and the warning label to the water

heater.

Leave this Instruction Sheet for the

owner’s/user’s reference.

WARNING: This pressure balanced or

thermostatic bath valve is designed

to minimize the effects of outlet water

temperature changes due to inlet pressure

changes, commonly caused by dishwashers,

washing machines, toilets and the like. It may

not provide protection from hot water burns

when there is a failure of other temperature

controlling devices elsewhere in the

plumbing system, if the rotational limit stop

or temperature knob is not properly set or if

the hot water temperature is changed after the

settings are made or if the water inlet changes

due to seasonal changes.

WARNING: Do not install a shut-off device on

either outlet of this valve. When this type of

device shuts off the water flow, it can defeat

the ability of the valve to balance the hot and

cold water pressures.
