3.9 Navigating the Utility Section

Successive presses of the Data Wheel will toggle between

parameters within the currently selected page.

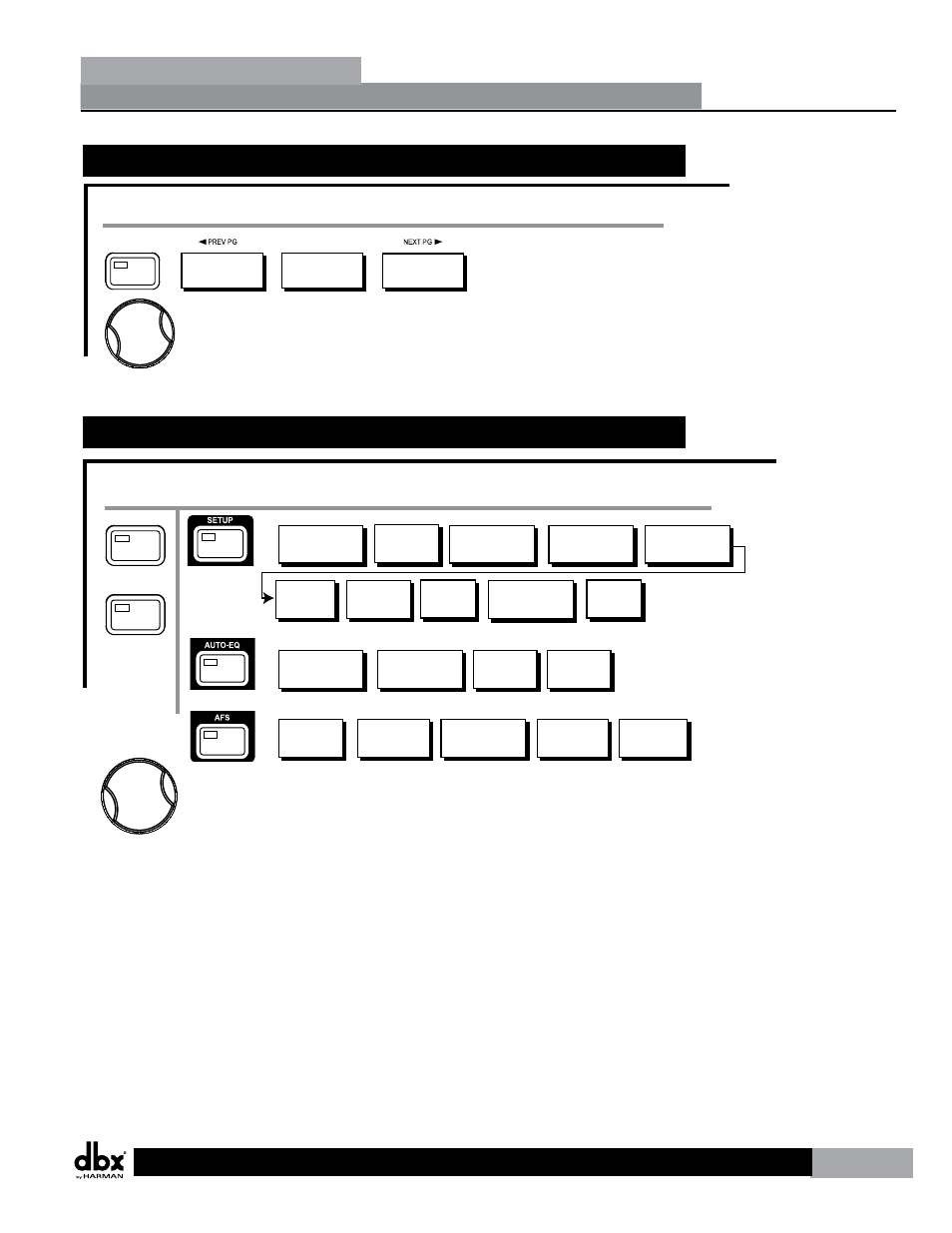

Navigating the Utility Section

LCD Contrast 1-16
AEQ Plot - RTA/GEQ
Sales Banner - On/Off

UTILITY

Meter Page
Gain and Threshold
meters

UTILITY

From preset mode, press and hold the UTILITY button. Pressing the Data Wheel will select the parameter to be edited.

MAC Address
Firmware Version

3.10 Navigating the Wizard Section

The NEXT and
PREV buttons
scroll through
the pages of
selected module.

Navigating the WIZARD Section

Input Setup - Stereo or
Mono

SETUP - PRESS AND HOLD TO ACCESS SETUP WIZARD. Pressing RTA anywhere in the Setup Wizard skips to to "AUTO-LEVEL - Connect Mic”.

Main Speaker Select-
See list

Sub Speaker Select-
See list

Main Speaker

Levels

Load New

Preset

Connect Mic

Pink Noise Level
-Inf to 20dB

Target Curve

Select Number of
Fixed Filters
- 0-12

Mixer gain turn
down prompt

Select Type -
Low, Med, High mode

Mixer Gain Adjust-

From preset mode, press and hold one of the WIZARD buttons (SETUP, AUTO-EQ, or AFS).

NEXT PG>

Fixed Filter Setup
Done-

Successive presses of the Data Wheel will toggle between

parameters within the currently selected page.

Auto level -

Connect Mic

Pink Noise Level
-Inf to 20dB

Auto level

Complete

AFS

AUTO-EQ - PRESS AND HOLD TO ACCESS AUTO-EQ WIZARD

- PRESS AND HOLD TO ACCESS AFS WIZARD

Sub Speaker

Levels

GEQ Setup -

Stereo or

Stereo Linked

Auto EQ

Section 3

Editing Functions

13

DriveRack

®

PA+
