3.7 Navigating the Comp/Limiter Section

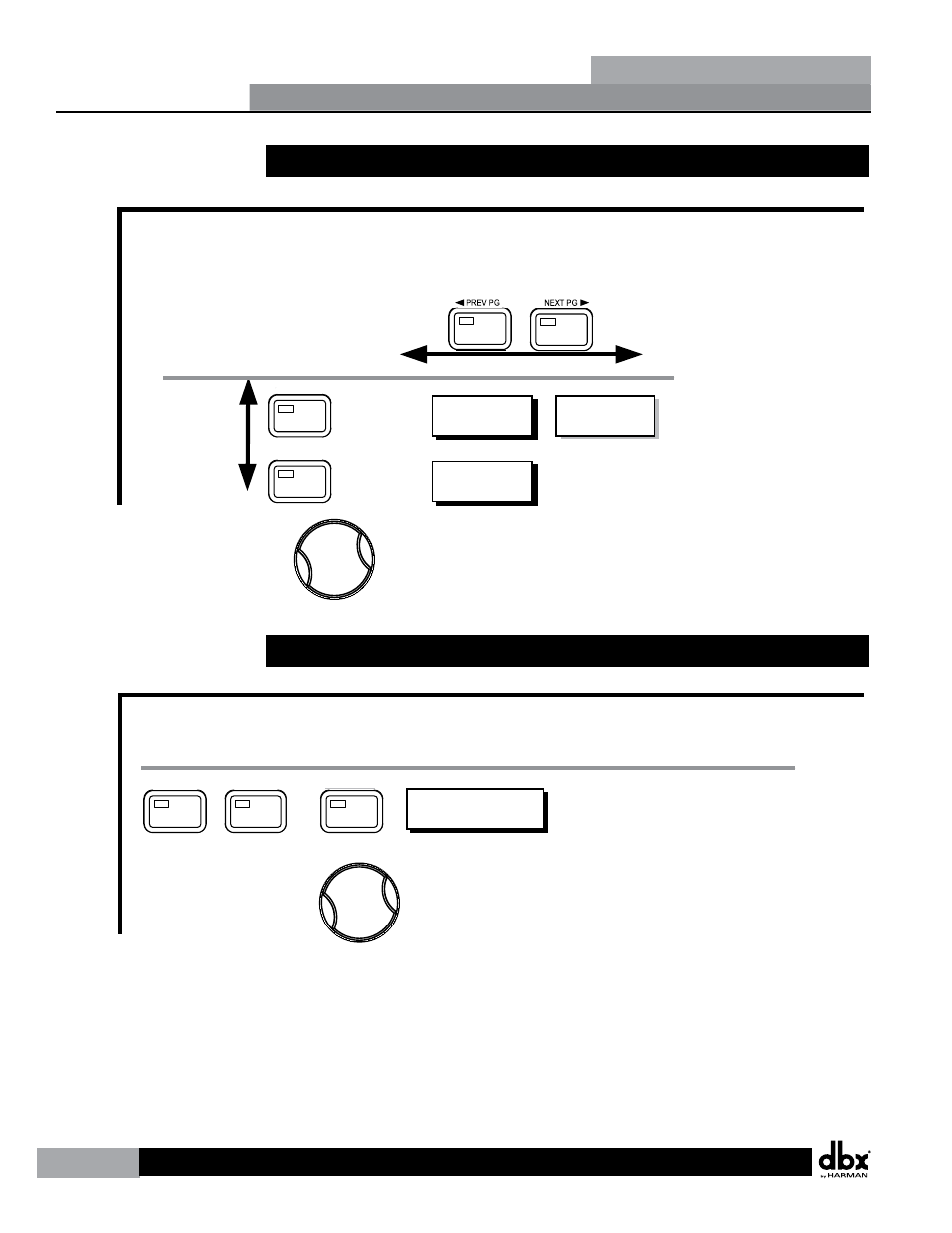

Navigating the Compressor/Limiter Section
The COMP/LIMITER
button toggles through
the Compressor or
Limiter modules.
COMP
Comp On/Off
Over Easy Off, 1-10
COMP/LIMITER
Threshold -40-20dB
Ratio 1:1 to ∞Inf:1
Gain -20 to 20dB
LIMITER
Limiter On/Off
Over Easy Off, 1-10
Threshold -40-20dB
COMP/LIMITER
From preset mode, press the COMP/LIMITER button to move to either the Compressor or Limiter module(s). Successive presses of the COMP/LIMITER button will toggle between the
input and output modules. Navigate through the Pages of the Compressor module by pressing the
"Next Page" or "Prev Page" buttons successively until you arrive at the desired Page.
Successive presses of the Data Wheel will toggle between
effect parameters within the currently selected page.
COMP/LIMITER
3.8 Navigating the Delay Section
Navigating the Delay Section
The NEXT and PREV
buttons scroll through
the pages of selected module.
Delay - On/Off
Length - Delay Time - Course, Fine
Units - Seconds,Feet,Meters
DELAY
DELAY
From preset mode, press the Delay button. Pressing the Data Wheel will select the effect parameter to be edited.
Successive presses of the Data Wheel will toggle between
effect parameters within the currently selected page.
Navigating the Advanced Feedback Supression (AFS) Section
AFS On/Off
AFS Clear Mode - Fixed/Live
Type- Speech, Low,Med and High
Number of Fixed filters 0-12 Live filter Lift - On/Off
Lift After - 0-60
FEEDBACK
FEEDBACK
From program mode, press the FEEDBACK button. Pressing the Data Wheel will select the effect parameter to be edited.
NEXT PG>
The PREV PG and NEXT PG
buttons scroll through
the pages of the selected module.
NEXT PG>
Successive presses of the Data wheel will select
effect parameters within the currently selected page.
Successive presses of the Data wheel will select
effect parameters within the currently selected page.
Navigating the Utility Section
LCD Contrast 1-16
AEQ Plot - RTA/GEQ
Sales Banner - On/Off
UTILITY
Compressor/Limiter
Threshold Meters
UTILITY
From program mode, press the UTILITY button. Pressing the Data Wheel will select the effect parameter to be edited.
