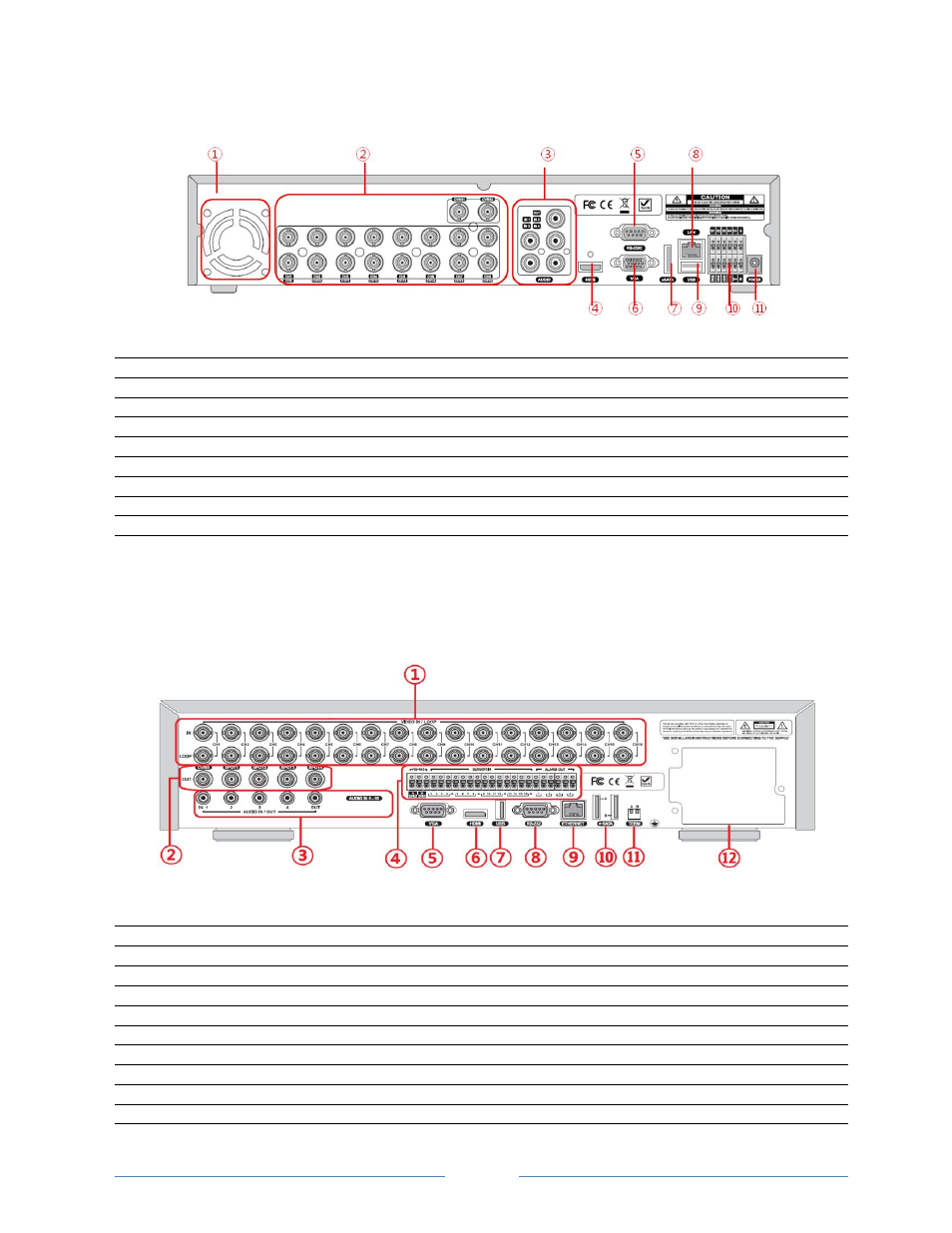

5-2. VVR4004HMFD, VVR4008HM, VVR4016HM,
VVR4008HFD, VVR4016HFD
1 Cooling Fan
2 Video Input & Video Output
3 Audio Input
4 HDMI Video Output
5 RS 232 Terminal (For testing purposes)
6 VGA Output
7 eSATA Port
8 Network RS-45 Ethernet Port
9 USB Port
10 RS-485 PTZ Camera control terminal
11 DC12V Power Input
5-3. VVR4016HSFD
1 Video Input & Loop Out
2 Video Output
3 Audio Input
4 RS-485 PTZ Camera control terminal & Sensor In terminal
5 VGA Output
6 HDMI Output
7 USB Port
8 RS 232 Terminal (For testing purposes)
9 Network RS-45 Ethernet Port
10 eSATA Port
11 RS-485 Termination
12 DC12V Power Input
